Kabeldon

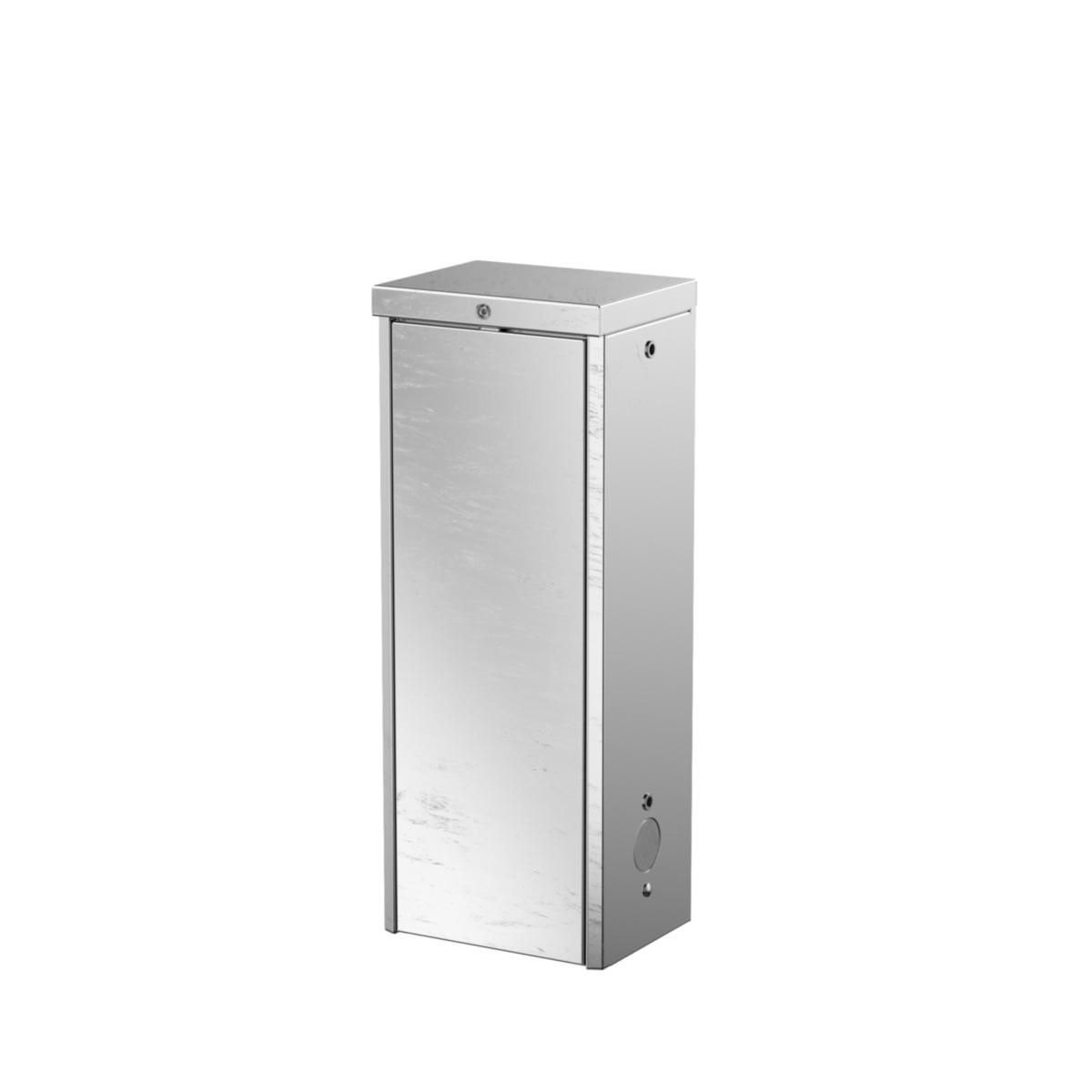

Accessory cabinet CDCA
ACCESSORY CABLE CABINET
Article number: Suppl. article no:
0732145
6330.0451.0
to see price and stock

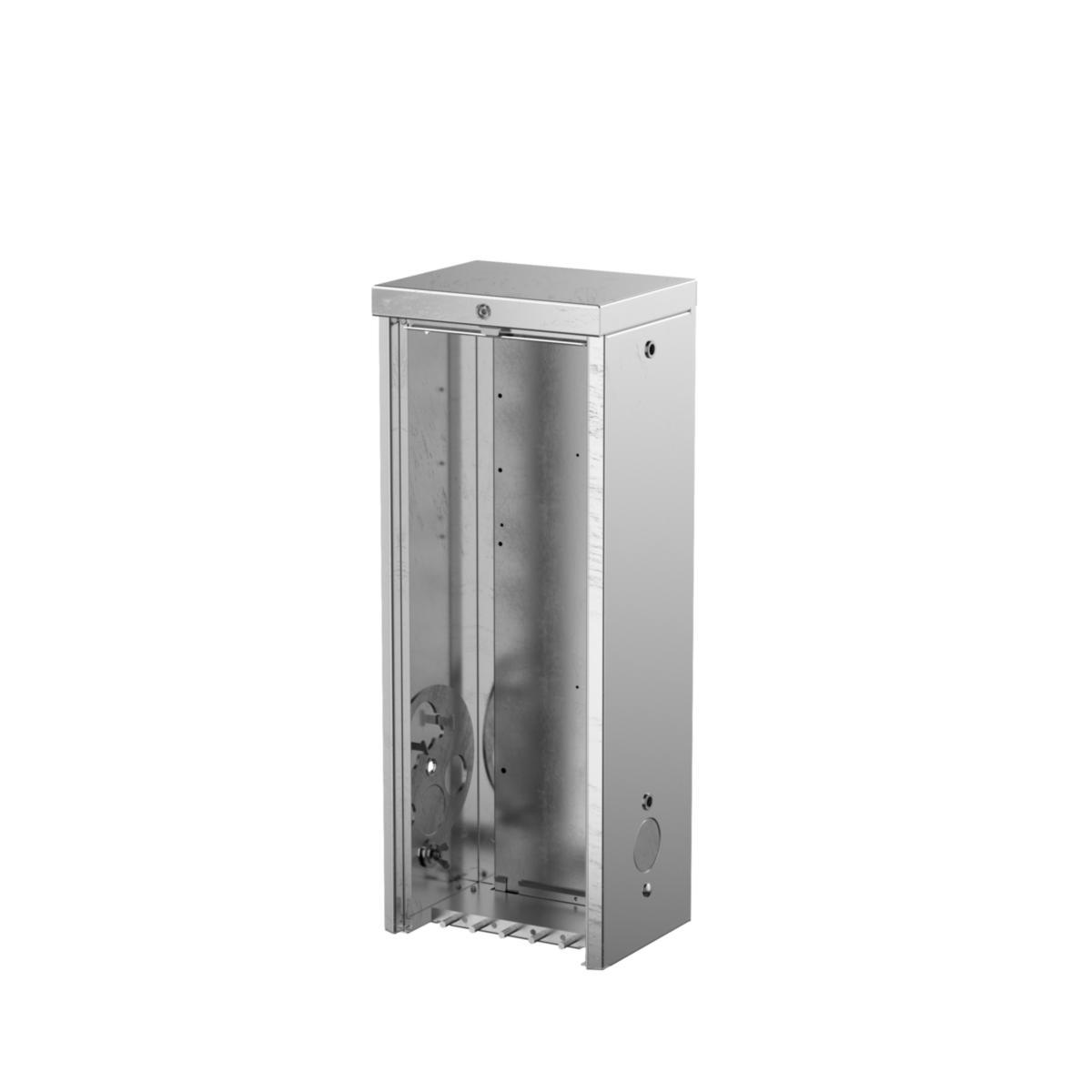

Accessory cabinet for installation on other enclosure. The cabinet is supplied with an assembly panel.
The gables are equipped with socket openings. The right-side opening has a revolver seal with five selectable openings. The seal can be moved to the left side.
The bottom of the cabinet has an opening with integrated tension relief for temporarily connected wires. The opening is covered by an included cover when it is not being used.
Inserts for temporary sockets, KSMU 16/32, or a meter board can be installed in the cabinet
MPF 25/63. When installing MPF 25/63, the CKM retrofit kit is required.
The gables are equipped with socket openings. The right-side opening has a revolver seal with five selectable openings. The seal can be moved to the left side.
The bottom of the cabinet has an opening with integrated tension relief for temporarily connected wires. The opening is covered by an included cover when it is not being used.
Inserts for temporary sockets, KSMU 16/32, or a meter board can be installed in the cabinet
MPF 25/63. When installing MPF 25/63, the CKM retrofit kit is required.
- Article number: 0732145
- Suppl. article no: 6330.0451.0
- Ean no: 7331980003044
- Material class QB6900
Technical data
- Packagin Size: 1 ST/16 ST
- Type: CDCA
- Number of doors: 1
- Number of locks: 1
- Width: 280 mm
- Depth: 218 mm
- Height: 730 mm
- Material: Steel
- Surface finishing: Galvanised
- With rear door: No
- With glazed door: No
- With mounting plate: No
- With ventilation door: No
- Degree of protection (IP): IP34
- Pole fastening: No
- Pitched roof: No
- Weight: 14.5 kg
- Height: 730 mm
- Width: 280 mm
- REACH Date: 2025-10-23
- Deep: 218 mm
- REACH Information obligation: No
- Suitable for outdoor installation: Yes
