ABB Cewe

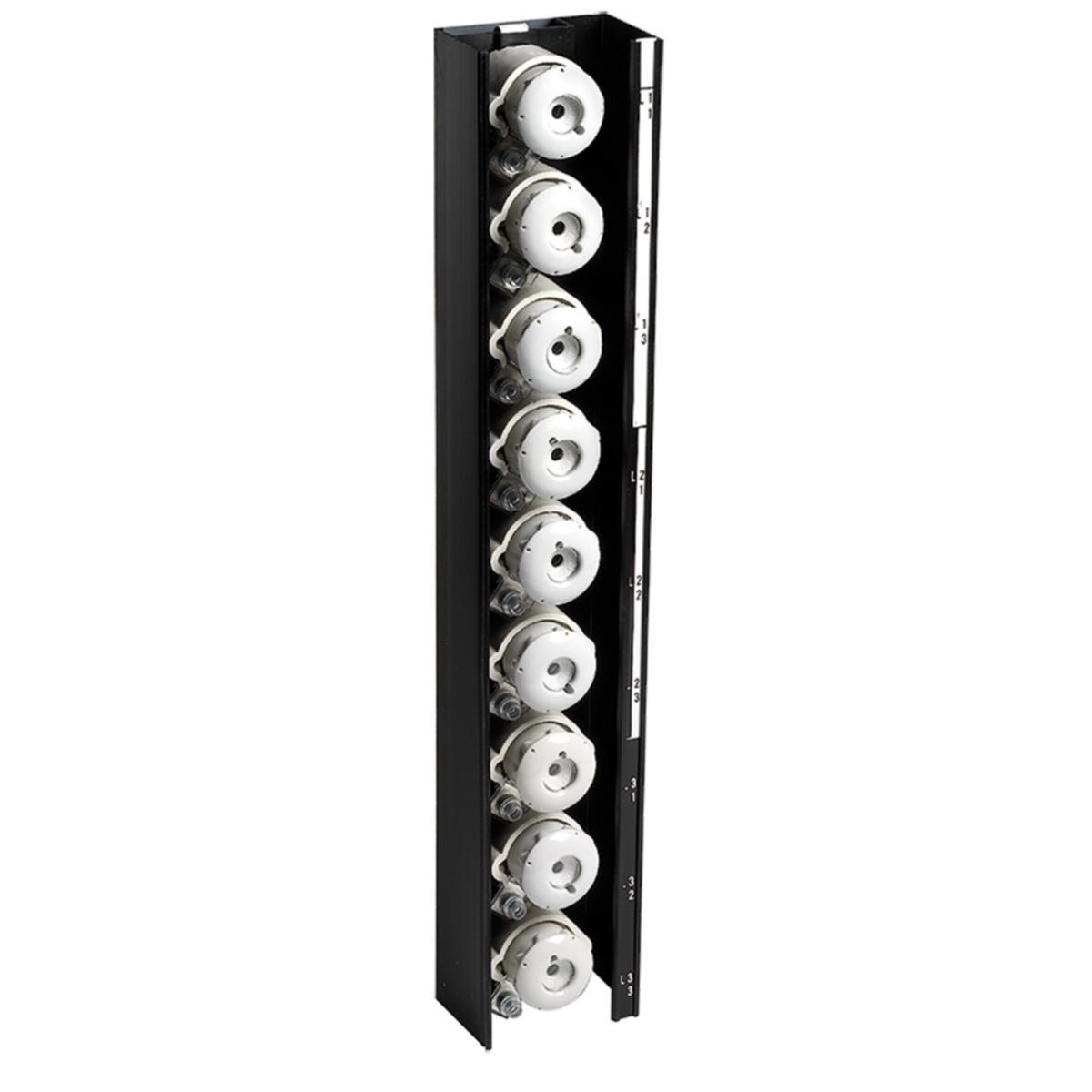

Diazed strips LDL
CDC"#LDL63/3 DIAZED
Article number: Suppl. article no:
0731530
2CMA125168R1000
to see price and stock
The DIAZED strips are supplied complete with plug hoods, but without fitting parts. Available in two versions, with two or three 3-phase groups. Spring-loaded contact eliminates the risk of fuses vibrating loose. Label holder in strip.
For fuse size DIII.
For fuse size DIII.
- Article number: 0731530
- Suppl. article no: 2CMA125168R1000
- Ean no: 7392696251686
- Material class QB7200
Technical data
- Packagin Size: 1 ST/50 ST
- Type: LDL 63/3
- Rated operating current: 63 A
- Rated operating voltage: 500
- Width: 105 mm
- Area: 6-25 mm²
- Weight: 3.5 kg
- Number of groups: 3 phase groups
- Rated current: 63 A
- Number of poles: 3
- REACH Date: 2025-10-23
- Rated voltage: 500 V
- Construction size: DIII
- REACH Information obligation: No
- Material: Porcelain
- Version with cover: Yes
- Model: Fitted screw
- Mounting method: Busbar system
