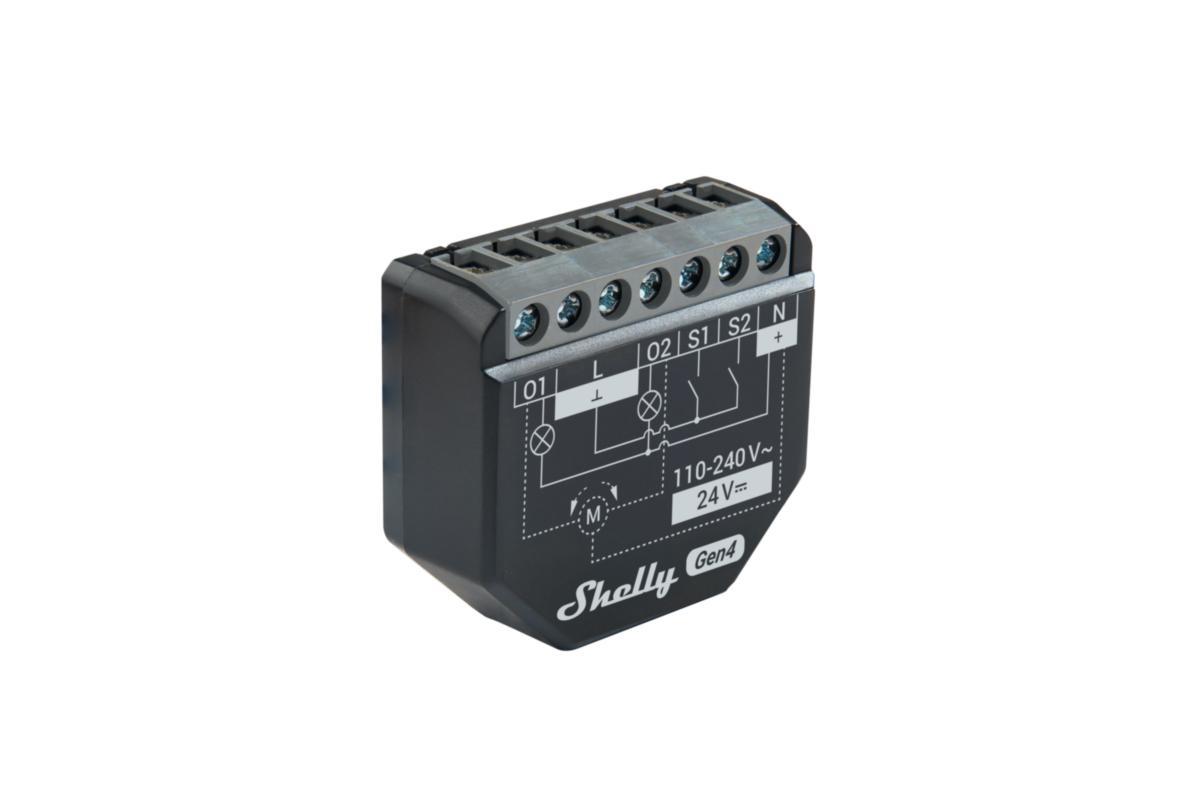

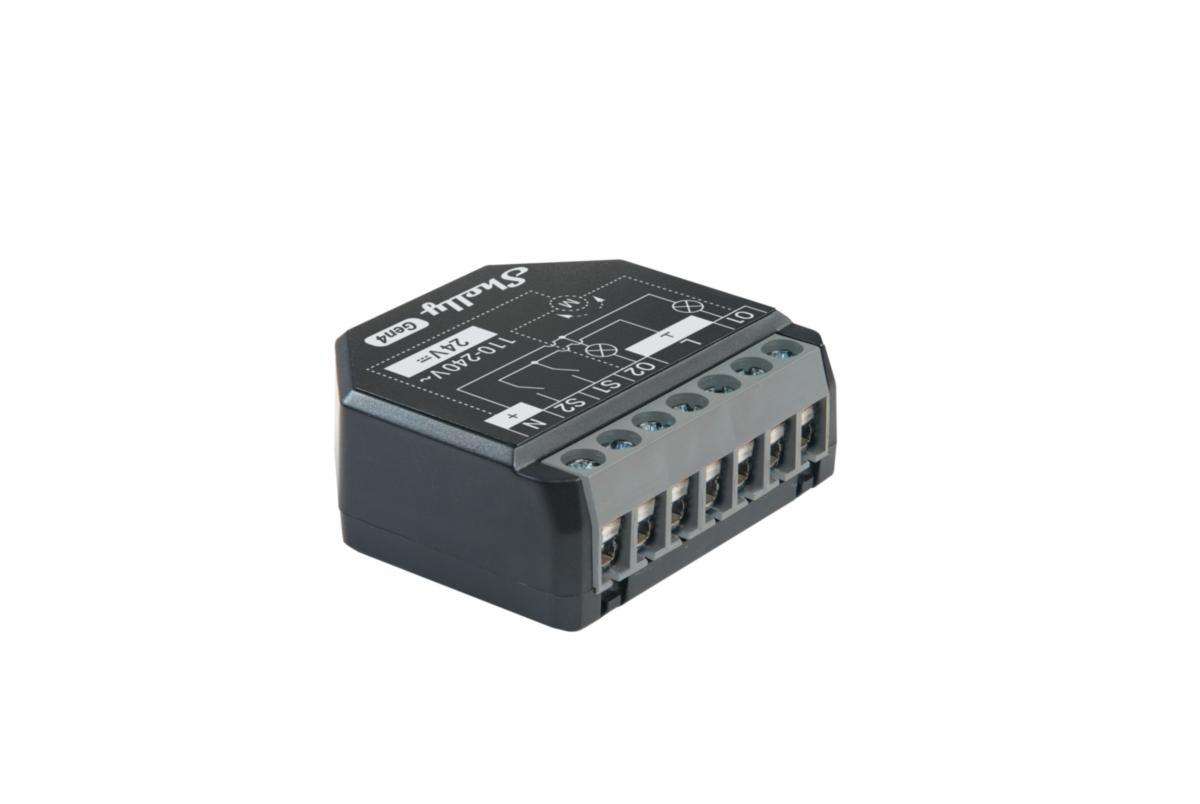

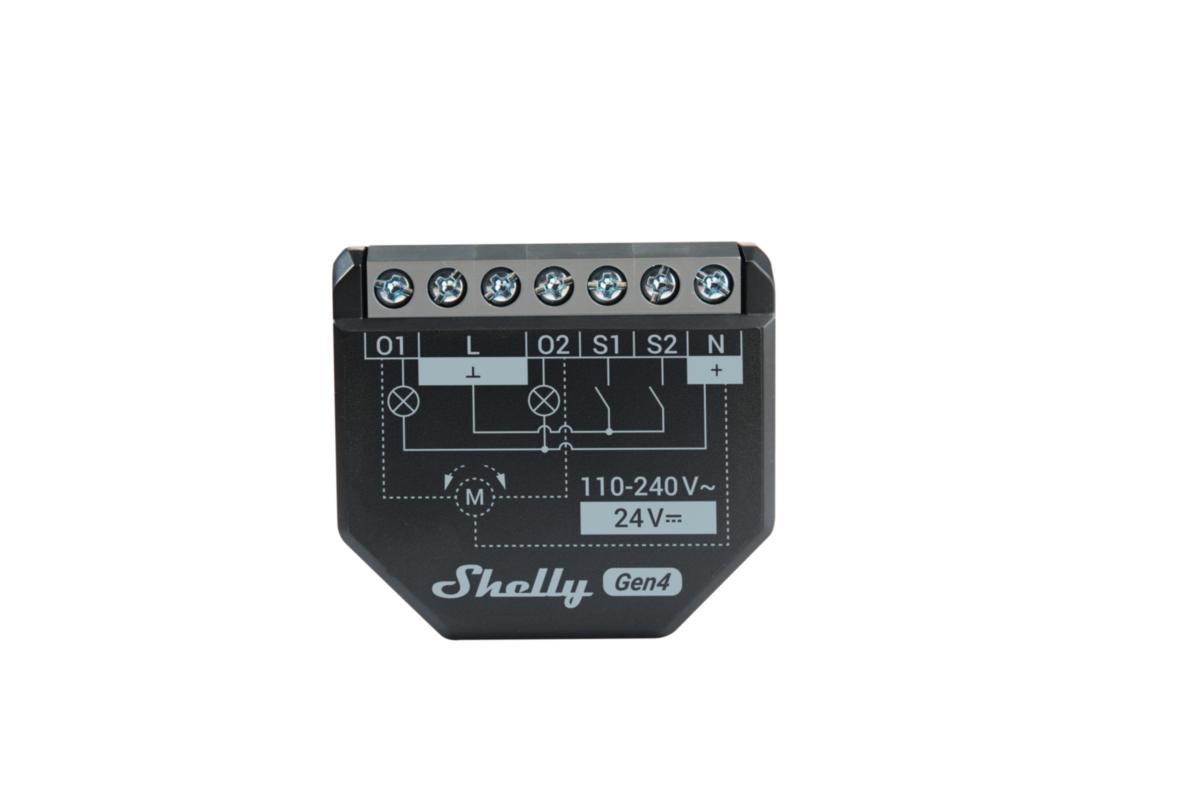

Relay 2PM Gen4 WiFi Zigbee

Shelly 2PM Gen4 is a 2-channel smart relay with power measurement that supports WiFi, Bluetooth and Zigbee communication.

Designed for mounting behind switches, wall sockets or lamp connections, Shelly 2PM Gen4 enables easy control and automation of lighting, fans, roller blinds, shutters, awnings and other two-way AC motors. Thanks to its compact design, it is easy to install in wall and ceiling boxes. The two integrated power meters allow the consumption of each channel to be measured separately, making the device ideal for controlling two lighting channels or two wall sockets. The device can be loaded with up to 10A per channel and a maximum of 16A in total.

- Matter certified: Easy integration via Matter into your favorite smart home system.

- Multi-protocol chip: Gen4 devices can communicate via 2.4 GHz WiFi and/or Zigbee. WiFi and Zigbee can be used simultaneously on different platforms.

- Bluetooth: Can be used for direct communication between Shelly relays/dimmers and battery-powered devices.
- Works locally: All primary functions work 100% locally, ensuring that devices continue to function even if the network goes down.
- High compatibility: Shelly can be integrated with over 200 partner systems such as Google Home, Apple HomeKit, Amazon Alexa, Home Assistant, Samsung SmartThings, Athom Homey and many more.
- Advanced features: Support for MQTT, HTTP and WebSocket for advanced communication. All connections support TLS.

Function
Shelly 2PM Gen4 offers many applications. It can be powered by 24V DC or 110-240V AC. The device has two switch inputs that can be used optionally. It automatically measures the power consumption of each channel, which can be monitored via the Shelly Smart Control app and easily used in automations. Shelly 2PM can be used for many purposes such as:
- Control of lighting in two channels
- Control of wall sockets
- Control of shutters, blinds, awnings, garage doors and the like
