Elko

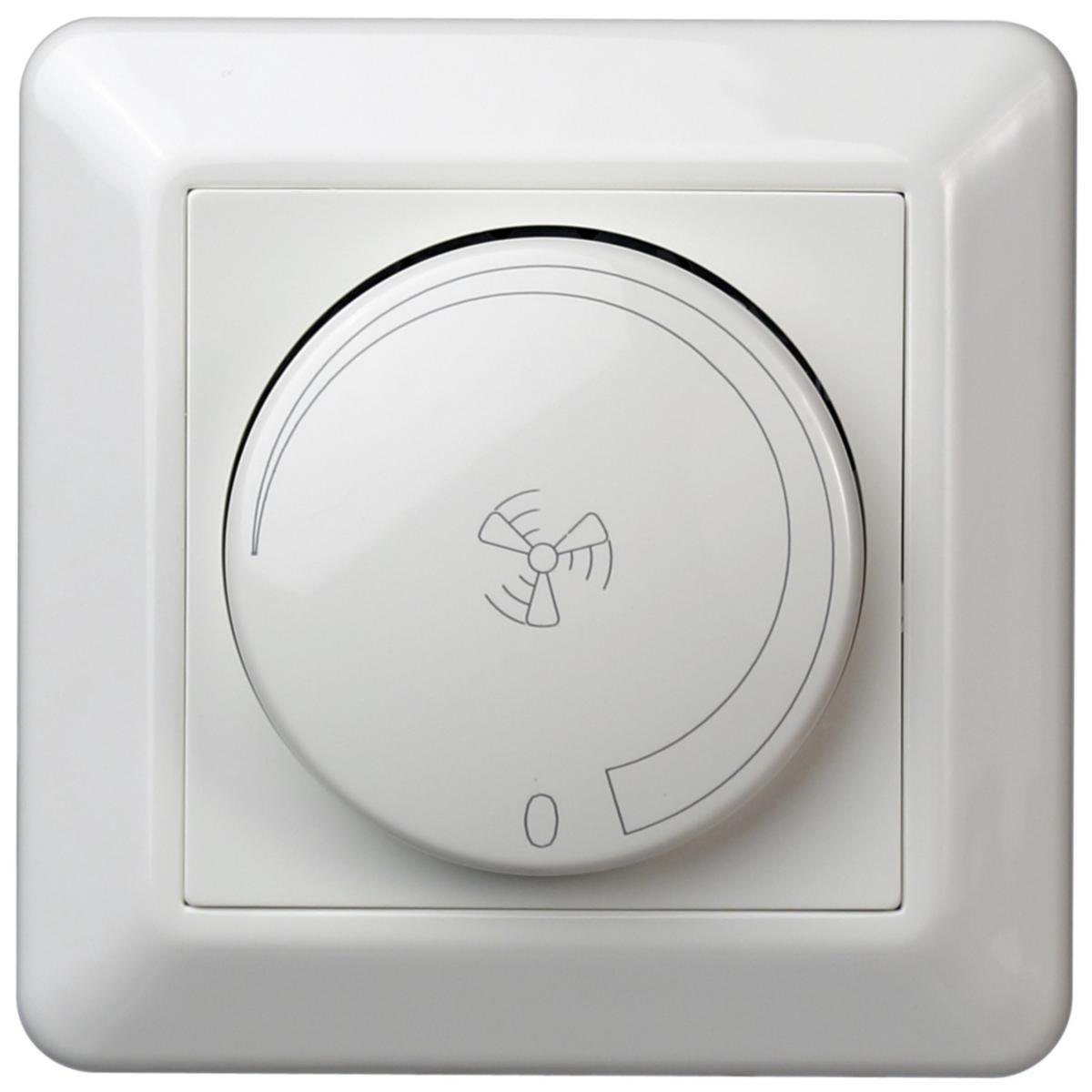

Speed regulator 400W
FAN SPEED REG 400HR RS WHT EKO05029
Article number: Suppl. article no:
1363148
EKO05029
to see price and stock
Electronic speed regulator for motor operation. Triac control. Rotary switch. Starts at max. value. Delivered complete with cover, knob and centre lock of halogen-free thermoplastic, without fixing claws. The dimmer will fit in standard boxes with 60 mm attachment screw distance. If attachment screws are missing, use Elkos Dos-clips, E14 261 00. For surface mounting raising frames are used. Designed also for combination assembly.
- Article number: 1363148
- Suppl. article no: EKO05029
- Ean no: 7020160502902
- Material class QI022B
Technical data
- Packagin Size: 1 ST/5 ST/480 ST
- Type: EKO05029
- Product series: RS
- Number of phases: 1
- Number of steps: 0
- Colour: White
- RAL-number: 9010
- Mounting method: Flush-mounted
- Basic element without cover: No
- Nominal current: 2 A
- Width: 84 mm
- Height: 84 mm
- Depth: 52 mm
- Degree of protection (IP): IP20
- Lighting: None
- Operating method: Turn/push button
- With temperature sensor: No
- Switching contact: Yes
- Power control stepless: Yes
- REACH Date: 2022-08-09
- REACH Information obligation: No
