Acti9 iC+ 1C multi astro CT

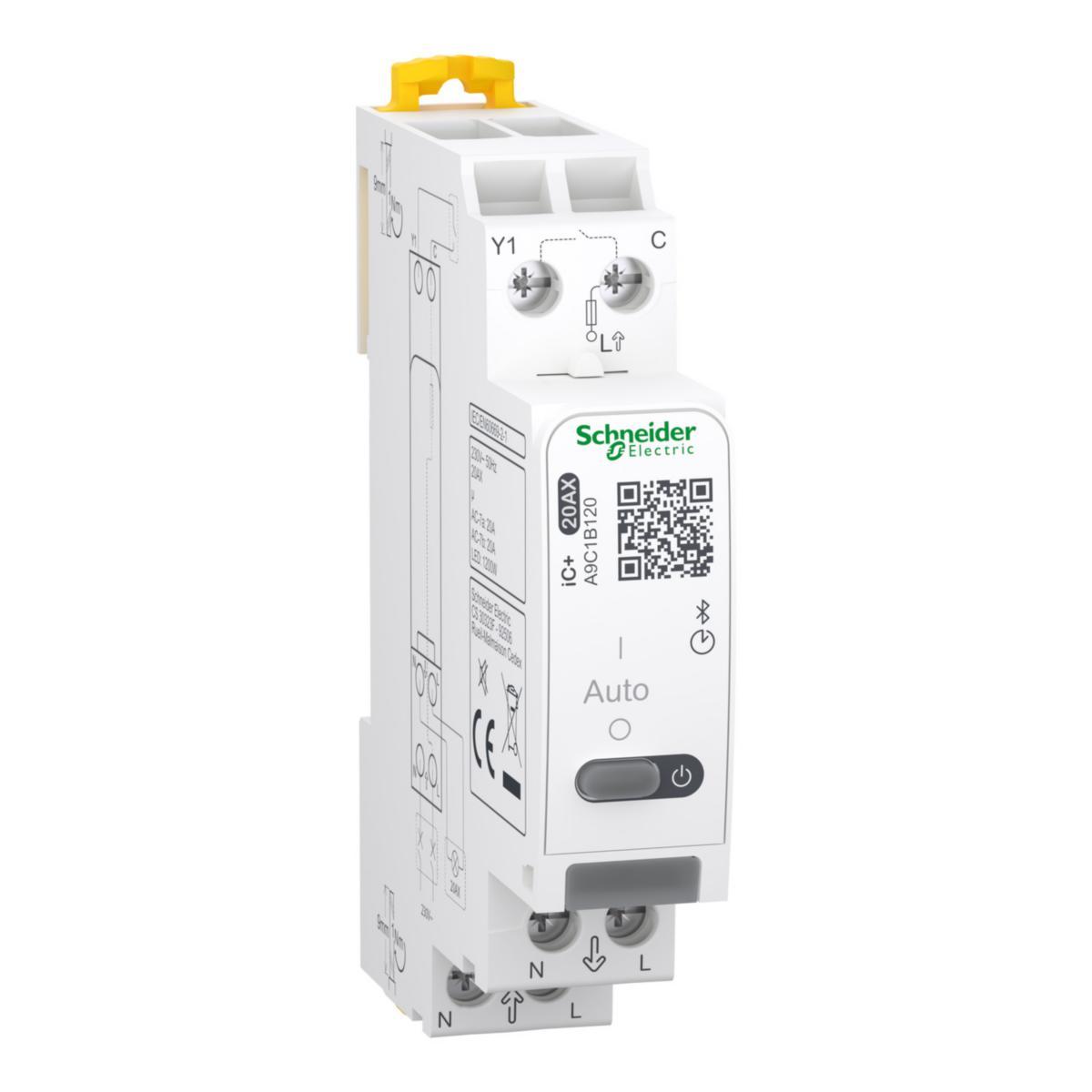

This acti9 iC+ product is a programmable astronomical switch with timer. It can handle all types of lamps: LED, incandescent, fluorescent. Resistive or inductive loads as well as heaters or 230VAC motors can be controlled. A lithium battery is integrated in case of power failure. The parameters are set via the eSetup app via Bluetooth but can also be initialized on the device. The Ue rated voltage is 230VAC at 50Hz with a Ie rated current of 20A under the utilization categories AC-7A and AC-7B. It is fixed on a DIN rail and its dimensions are (W) 18mm x (H) 85mm x (D) 68mm. The IP protection degree is IP20 and the IK degree is IK05. It complies with the IEC/EN 60669-2-1 standard.
