AhlsellProductsElectricInstallation equipment 11-1813 Motion, time, light controlLight relaysDIN rail mounting
Hager

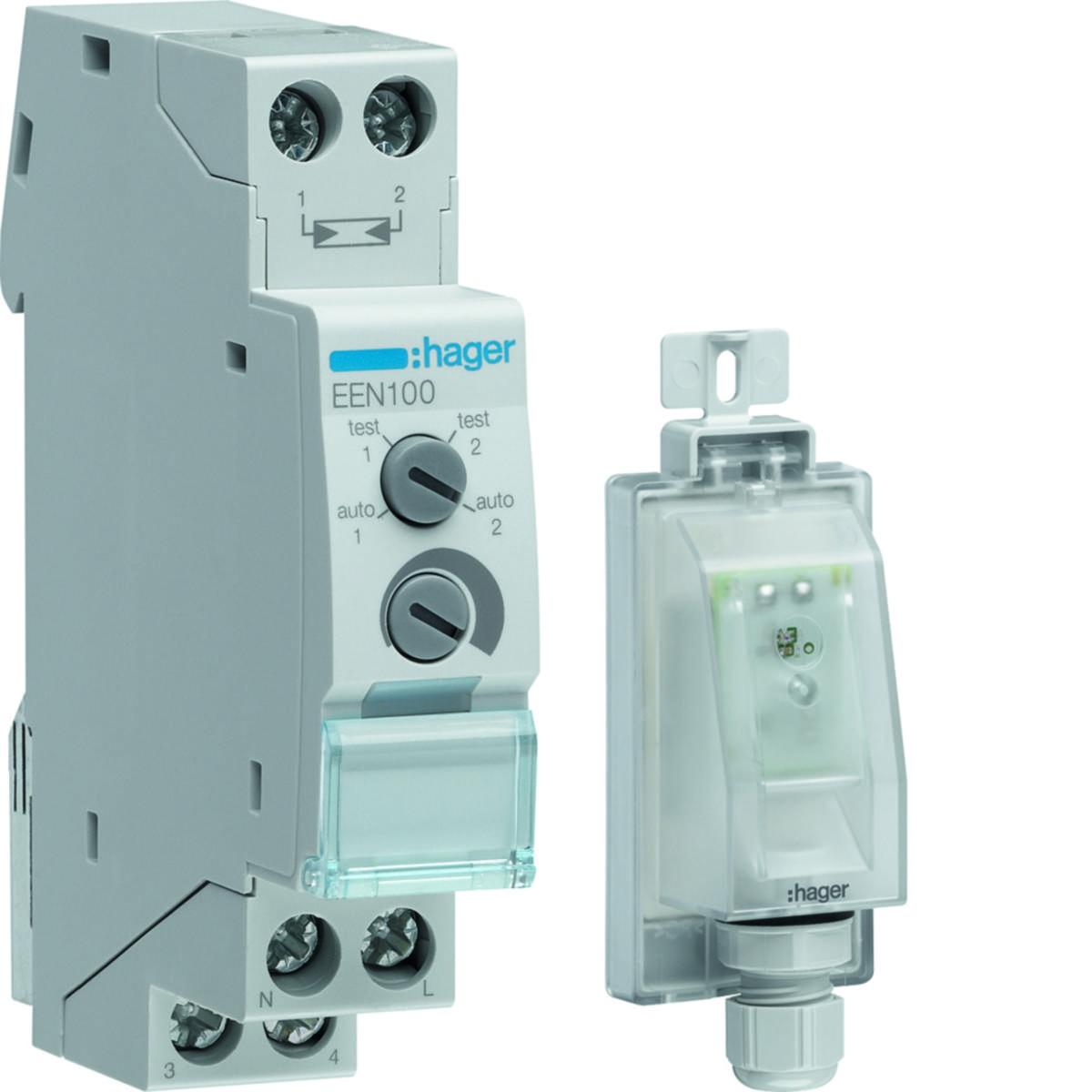

Relay with external sensor
LIGHT SENSITIVE SWITCH KONTR. 2 OMR. BREDD: 1 MODUL
Article number: Suppl. article no:
1300138
EEN100
to see price and stock
Relay including surface-mounted transducer. Rated voltage 230 V AC, 1 alternating contact 2 areas: - 5-100 lux. - 50-2,000 lux. Width: 1 module. The light sensor detects the illuminance outdoors and connected to a light relay you can control artificial light On/Off depending on the light level outdoors. It is usually used to control outdoor lighting.
- Article number: 1300138
- Suppl. article no: EEN100
- Ean no: 3250617579308
- Material class QI309B
Technical data
- Rated voltage: 230 V
- Rated switch current: 10 A
- Width in number of modular spacings: 1
- Mounting method: DIN rail
- Mounting method light sensor: Other
- Degree of protection (IP) light sensor: IP55
- Max. conductor length light sensor: 100 m
- Adjustment range brightness value: 5-2000 lx
- Max. load fluorescent lamp: 1000 VA
- Max. load fluorescent lamp (Duo circuit): 1000 VA
- Max. load fluorescent lamp (parallel compensated): 1000 VA
- Max. incandescent lamp load: 2300 W
- Degree of protection (IP): IP20
- Max. switching current (cos phi = 0.6): 10 A
- With programmable overnight shutoff: No
- Rated voltage light sensor: 230 V
- Protection class light sensor: II
- Push button input: No
- Built-in depth: 17.8 mm
- Rated frequency: 50-60 Hz
- Colour: Grey
