Schneider Electric

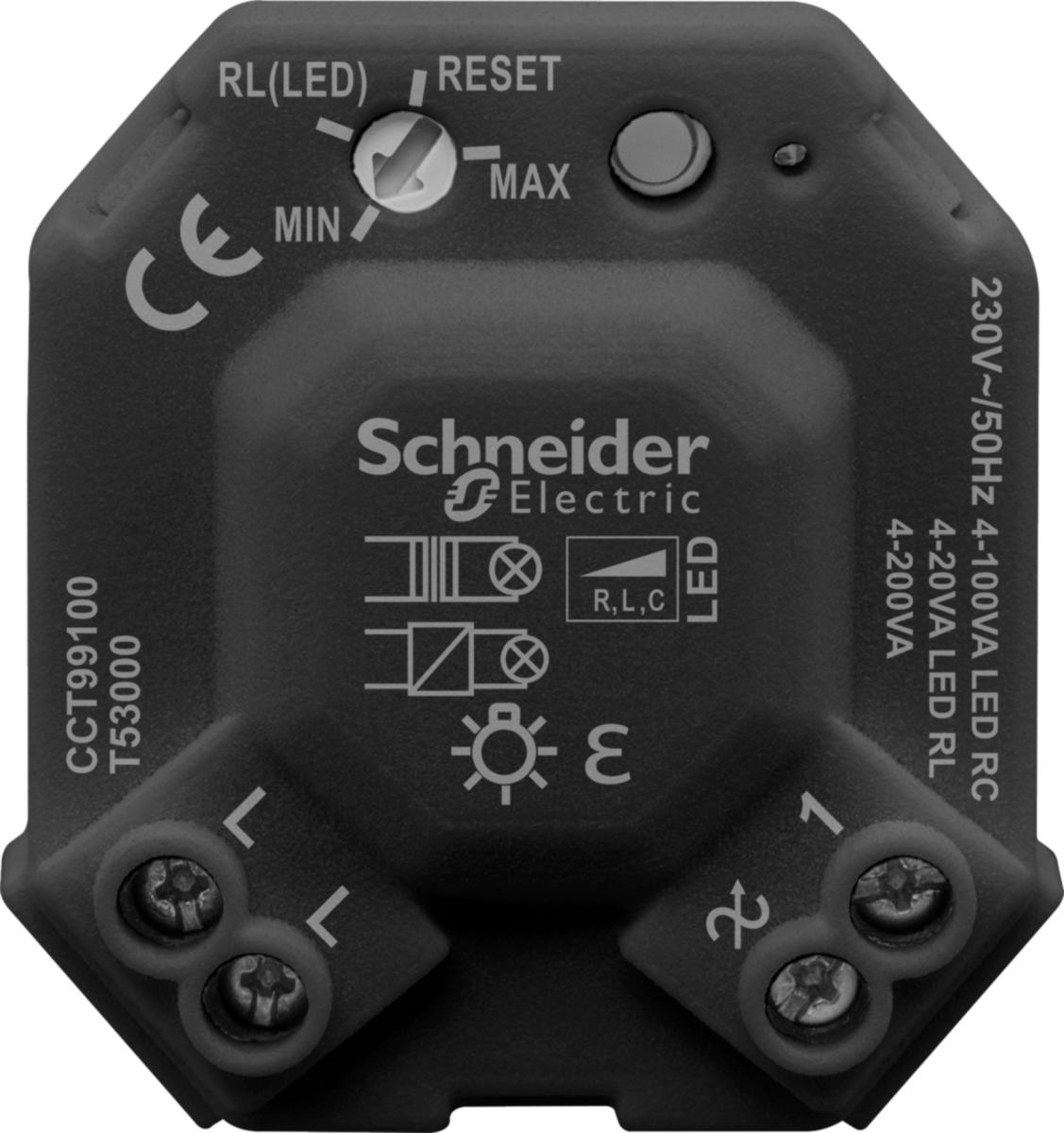

LED Box universal dimmer, Schneider
UNIVERSAL LED DIMMER MODULE
Article number: Suppl. article no:
1360217
CCT99100
to see price and stock
LED universal dimmer, 4-200W/VA For control of rear-edge-controlled LED lamp (RC) 4-100VA. Front-edge-controlled LED lamp (RL) 4-20VA. Incandescent lamp, (R) and most types of electronic (C)/ conventional transformers (L) 4-200W/VA, 230V halogen lamps 5-150W (R). Switchable operating mode for RL LED, adjustable minimum/maximum brightness, soft-start function. Screw connection, step-switchable. Neutral led not required.
- Article number: 1360217
- Suppl. article no: CCT99100
- Ean no: 3606480746239
- Material class QH2201
Technical data
- Packagin Size: 1 PCS/140 PCS
- Colour: Grey
- Type of load: Universal and LED Retrofit
- Nominal power inductive load: 200 VA
- Nominal power capacitive load: 200 VA
- Nominal power resistive load: 200 W
- Max. switching power LED: 100 W
- RAL-number (similar): 0
- Assembly arrangement: Basic element with complete housing
- Nominal voltage: 230 V
- Control voltage: 0 V
- App control via Bluetooth: No
- Serial dimmer: No
- Device width: 40 mm
- Device height: 45 mm
- Device depth: 20 mm
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): Yes
- Core cross section: 2.5 mm²
- Type of fastening: Other
- Mounting method: Flush-mounted
- Operating method: Other
- Frequency: 50 Hz
- Min. depth of built-in installation box: 40 mm
- Material quality: Other
- Material: Other
- Halogen free: Yes
- Light value memory: Yes
- Suitable for degree of protection (IP): IP20
- Applicable with button: Yes
- Applicable with movement sensor: No
- Applicable with presence indicator: No
- Applicable with time switch/timer: No
- Applicable with transmission button: No
- Applicable with infrared button: No
- Transparent: No
- Surface finishing: Matt
- Surface protection: Untreated
- Substation input: Yes
- Impact strength: IK02
- Compatible with Amazon Alexa: No
- IFTTT support available: No
- Compatible with Google Assistant: No
- Compatible with Apple HomeKit: No
- Number of units: 1
- Power consumption: 150 W
- Min. brightness controllable: Yes
- Connection type: Screwed terminal
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly | Boroxid, Diboron trioxide | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- Article number supplier: CCT99100
- REACH Information obligation: Yes
