Schneider Electric

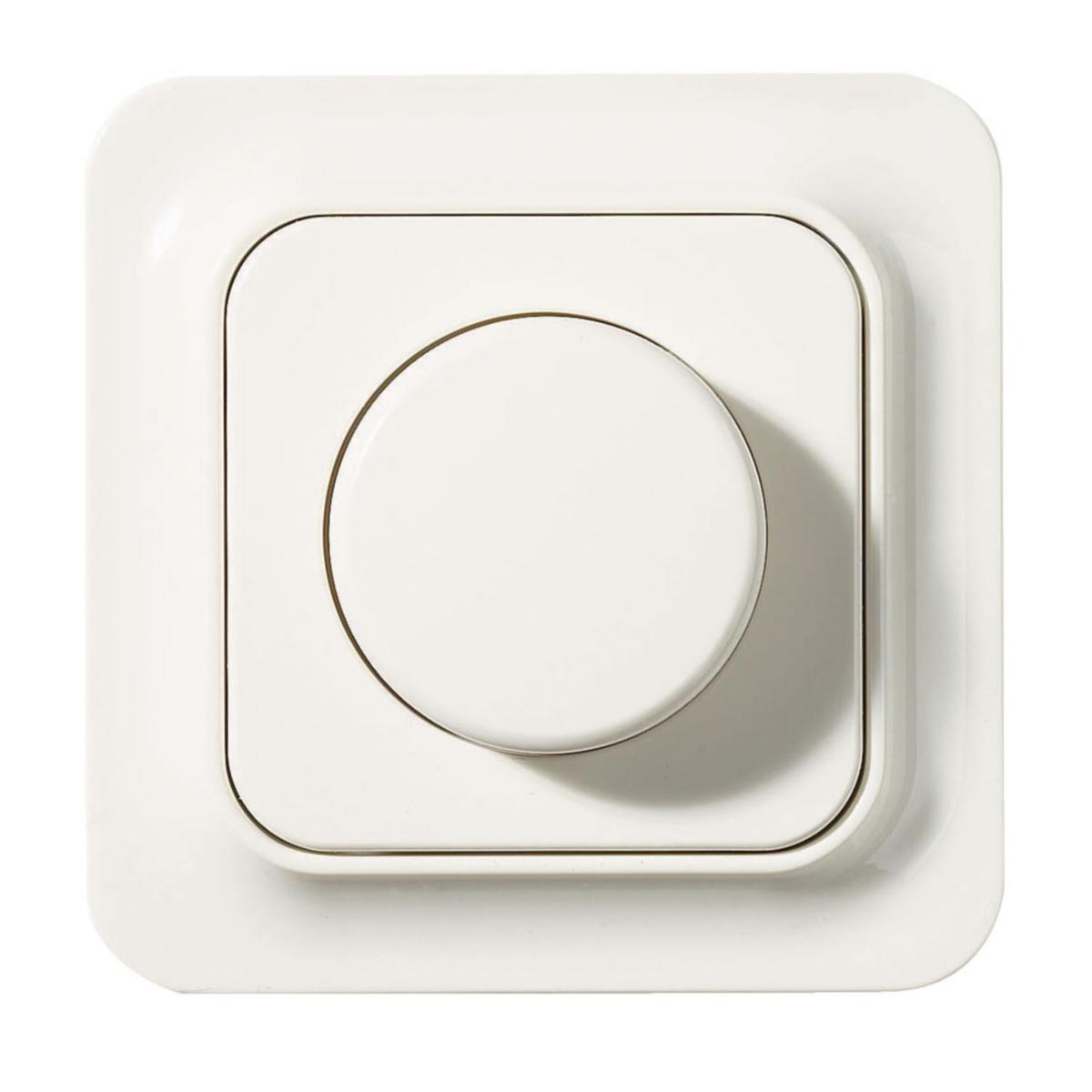

Transistor dimmer, insert, Trend
DIMMER 315W TREND WHITE CCTSE12011
Article number: Suppl. article no:
1370640
CCTSE12011
to see price and stock
Insert rotary dimmer for recessed IP20 mounting in apparatus box. For control of incandescent lamps and electronic transformers approved for light control. Push switch with step function. The insert will be supplemented with an optional frame E18 380 90-97, E18 381 90-97, E18 382 90-93.
- Article number: 1370640
- Suppl. article no: CCTSE12011
- Ean no: 3606480300806
- Replaces art.nbr: 1901606
- Material class QH2200
Technical data
- Packagin Size: 1 PCS/24 PCS
- Product series: Trend
- Colour: White
- Type of load: Inductive load
- Nominal power resistive load: 20-315 W
- RAL-number (similar): 9010
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 230 V
- App control via Bluetooth: No
- Serial dimmer: Yes
- Device width: 82 mm
- Device height: 82 mm
- Device depth: 29 mm
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): No
- Core cross section: 1.5-2.5 mm²
- Type of fastening: Mounting with screw
- Mounting method: Flush-mounted
- Number of modules (module system): 1
- Operating method: Turn/push button
- Frequency: 50 Hz
- Min. depth of built-in installation box: 46 mm
- Material quality: Thermoplastic
- Material: Plastic
- Halogen free: Yes
- Light value memory: No
- Suitable for degree of protection (IP): IP20
- Applicable with button: No
- Applicable with movement sensor: No
- Applicable with presence indicator: No
- Applicable with time switch/timer: No
- Applicable with transmission button: No
- Applicable with infrared button: No
- Transparent: No
- Surface finishing: Glossy
- Surface protection: Untreated
- Substation input: Yes
- Impact strength: IK02
- Compatible with Amazon Alexa: No
- IFTTT support available: No
- Compatible with Google Assistant: No
- Compatible with Apple HomeKit: No
- Number of units: 1
- Power consumption: 315 W
- Min. brightness controllable: Yes
- Connection type: Screwed terminal
- Nominal power: 20-315 W
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly | Blytitanzirkoniumoxide | Boroxid, Diboron trioxide | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- REACH Information obligation: Yes
