Eltako
Rotary dimmer for Din mounting
DIN rail rotary dimmer switch
Article number: Suppl. article no:
1360377
21100810
to see price and stock

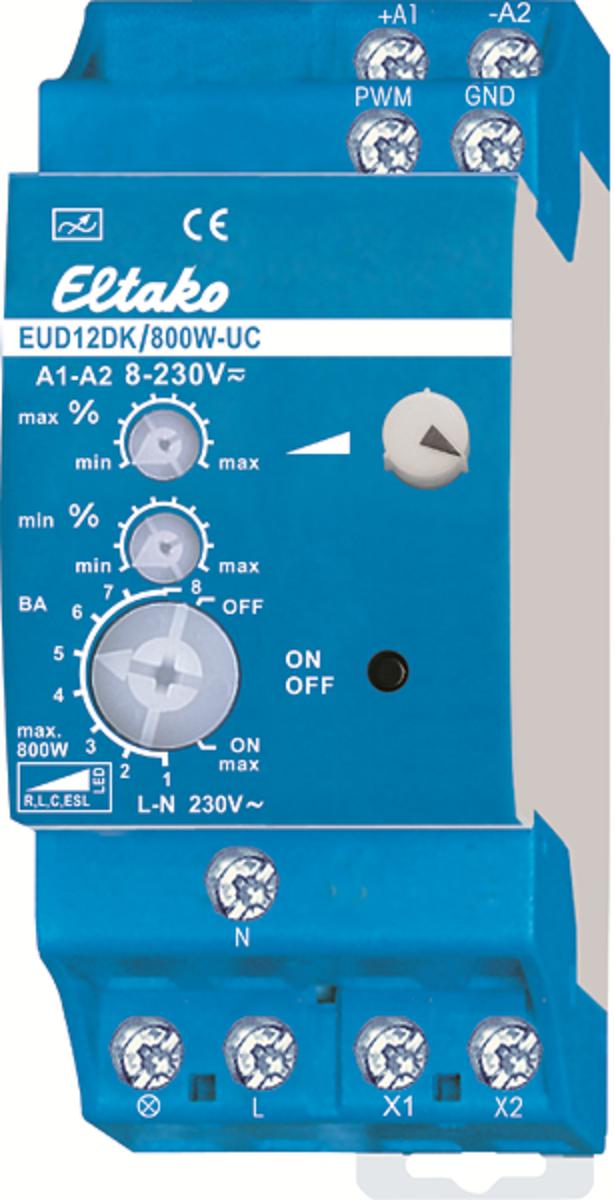

Rotary dimmer for DIN mounting EUD12DK/800W-UC, Power MOSFET up to 800W. Automatic load sensing. Standby only 0.2W. With min and max light adjustment.
- Article number: 1360377
- Suppl. article no: 21100810
- Ean no: 4010312109656
- Material class QH8840
Technical data
- App control via Bluetooth: No
- Control voltage: 8-230 V
- Nominal voltage: 230 V
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): Yes
- Applicable with button: Yes
- Operating method: Turn/push button
- Light value memory: Yes
- Type of load: Universal
- Serial dimmer: No
- Device width: 36 mm
- Device depth: 58 mm
- Device height: 82 mm
- Mounting method: DRA (DIN-rail adaptor)
- Frequency: 50 Hz
- Colour: Blue
- Halogen free: Yes
- Applicable with infrared button: No
- Number of modules (module system): 2
- Applicable with presence indicator: No
- Applicable with movement sensor: No
- Applicable with time switch/timer: No
- Applicable with transmission button: No
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Assembly arrangement: Other
- Substation input: No
- RAL-number (similar): 5012
- Transparent: No
- Type of fastening: Other
- Surface finishing: Glossy
- Surface protection: Untreated
- REACH Date: 2021-01-01
- REACH Information obligation: No
