Ebeco
EB-Therm 300 Floor Heating Thermostat
THERMOSTAT EB-THERM 300
Article number: Suppl. article no:
8583030
8583030
to see price and stock

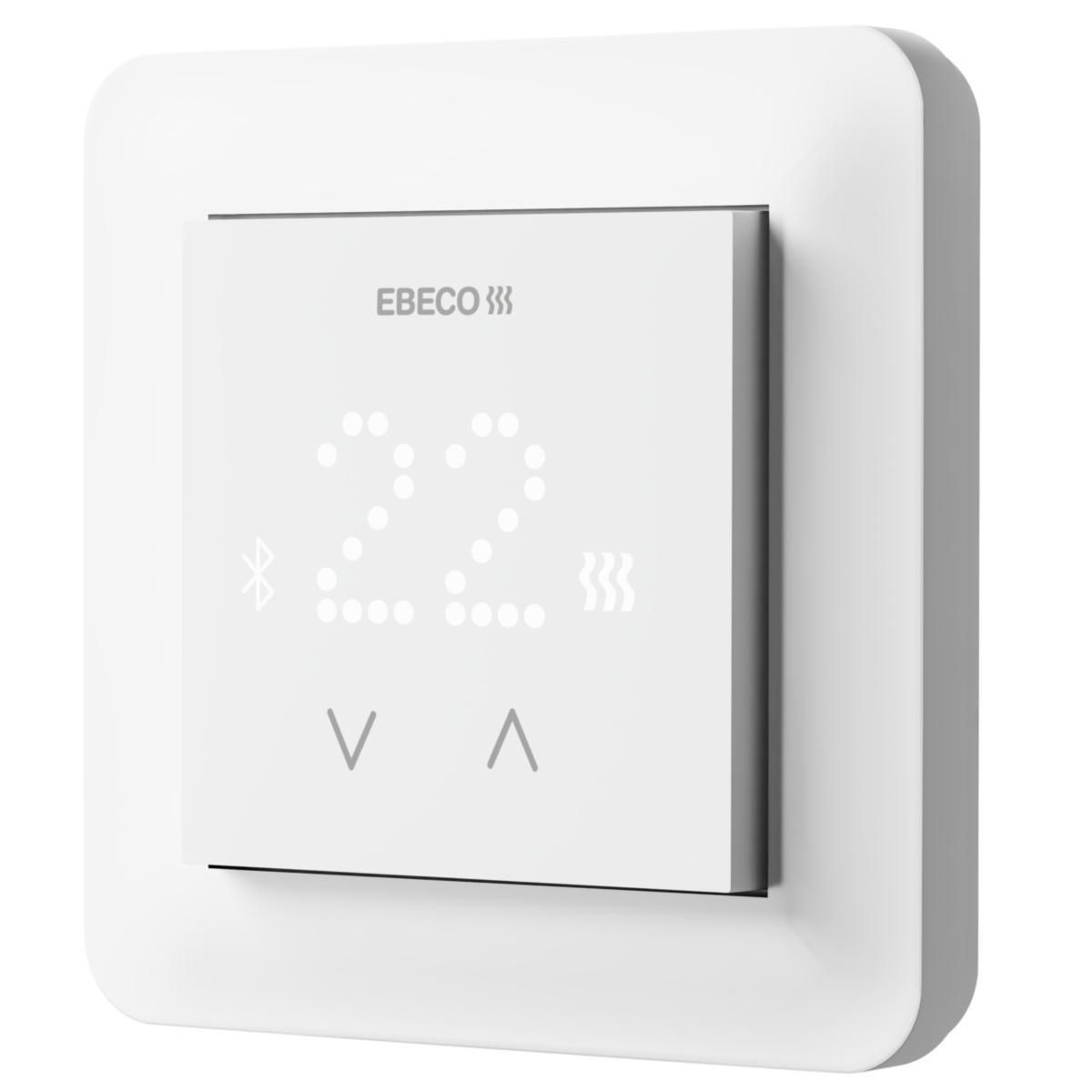

The EB-Therm 300 floor heating thermostat, equipped with floor and room sensors, features a sleek LED display with two touch buttons and a setup guide that simplifies the process for both the installer and the user. Commissioning and setting the desired temperature can be done without an app, directly via the thermostat’s display. To access the thermostat’s weekly program as well as other functions and settings, the thermostat can be connected via Bluetooth® and controlled locally via the Ebeco Connect app. The thermostat also supports a local API.
The EB-Therm 300 supports eight different sensor types and fits the most common frame systems. A white frame and cover plate (RAL 9003) are included. A cover plate must be purchased separately for other frame systems and colors, e.g., Elko One & Plus, Schneider Renova, and SG Armaturen.
The EB-Therm 300 supports eight different sensor types and fits the most common frame systems. A white frame and cover plate (RAL 9003) are included. A cover plate must be purchased separately for other frame systems and colors, e.g., Elko One & Plus, Schneider Renova, and SG Armaturen.
- Article number: 8583030
- Suppl. article no: 8583030
- Ean no: 7330778830305
- Material class QX2200
Technical data
- Packagin Size: 1 PCS/64 PCS
- Type of clock: Week clock
- Colour: White
- Type of power supply: 230 V

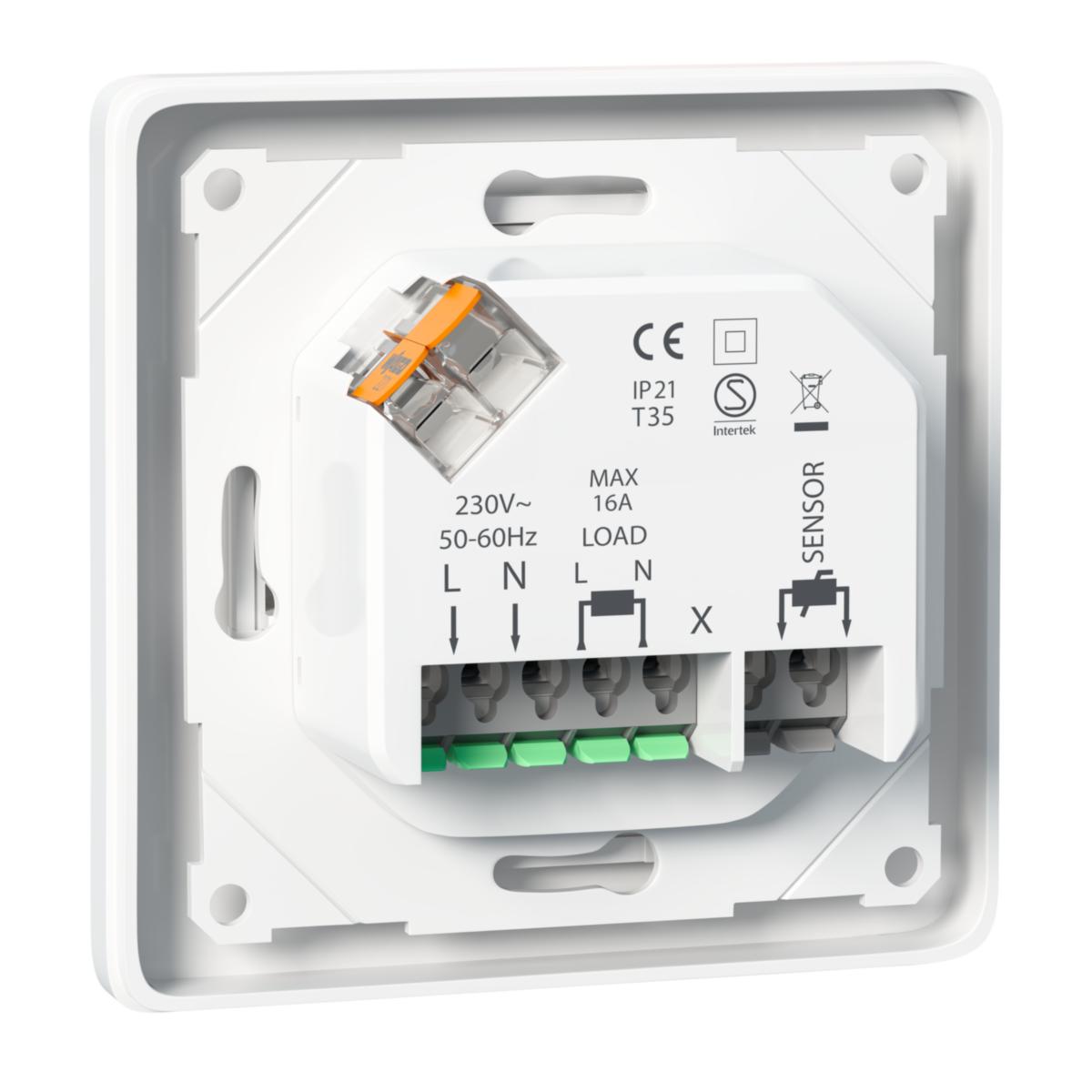

- Connection: 2-wire
- Number of heater outputs: 1
- Width: 87 mm
- Differential value: 0.3 K
- Depth: 47 mm
- Standby power consumption (solstandby): 0.5 W
- Explosion-proof: No
- External sensor: Yes
- Height: 87 mm
- Degree of protection (IP): IP21
- Class of the temperature control: II
- Clock model: Digital
- Suitable for cooling: No
- Temperature readable: Yes
- Operation: Touch screen
- Max. contact load: 16 A
- Max. contact voltage: 230 V
- With display: Yes
- Measuring range: 5-35 °C
- RAL-number: 9003
- Regulation type on/off: Yes
- Relative humidity (RH) readable: No
- Sensor/feeler type: Resistance sensor
- Weather-dependent control system: No
- Overtime switch: Yes
- REACH Date: 2026-02-25
- REACH Information obligation: No
