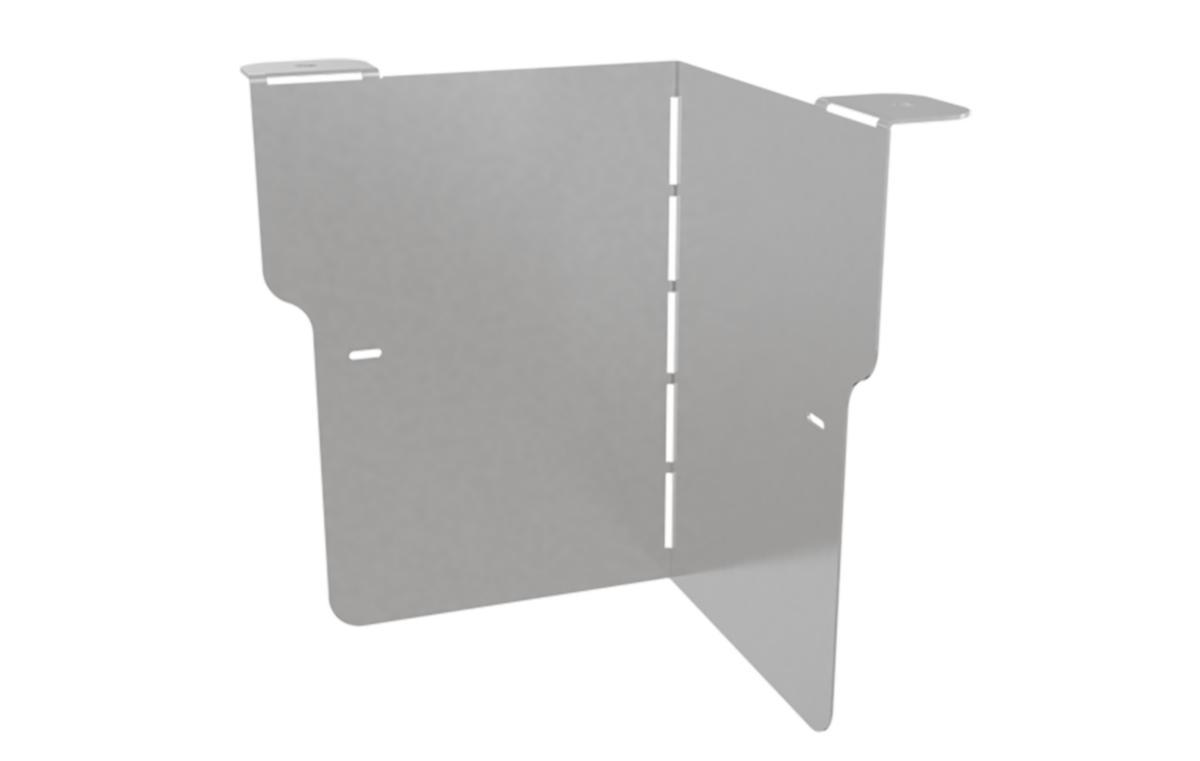

Baffle Mount HFF-A, Hallströms

Mounting bracket for installing baffle HBE-G L:900 in silencer HFF-A L:1000. The baffle is mounted diagonally in the silencer.

Start by mounting the baffle brackets in the silencer - two on each side. Fasten with self-drilling screws.
Slide the baffle into place. Be careful not to damage the protective fabric.
The baffle is placed centered in the silencer.
Fold down the "ears" on the baffle and secure with a screw on each side into the baffle bracket.
NOTE! 4 brackets/baffle
