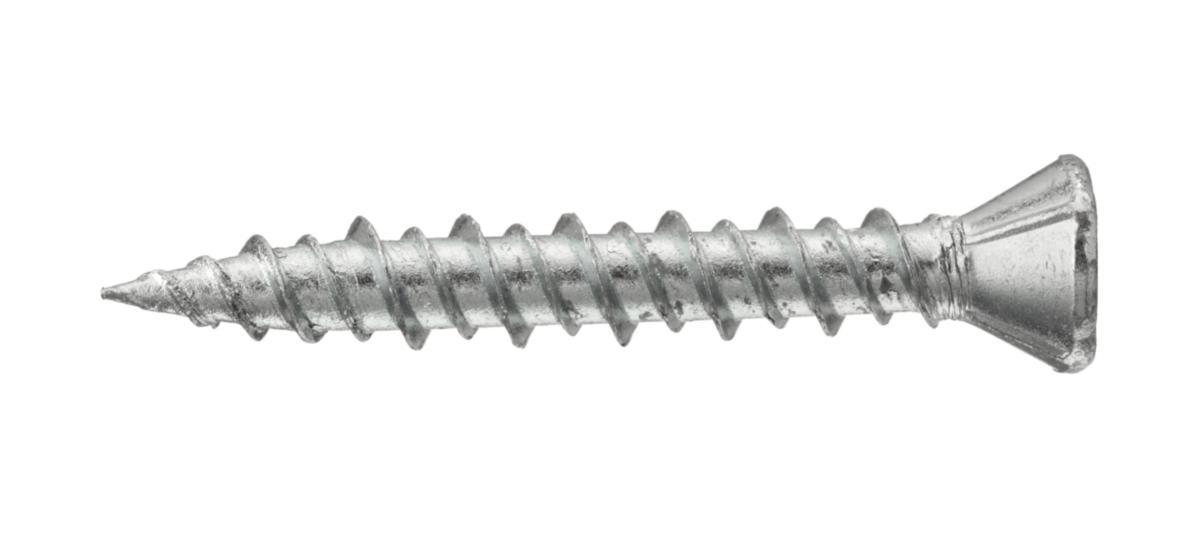

Phillips cross recess no. 2. Head Ø 7 mm. Mounting usage: A screwdriver with an RPM of 2.000 - 3.000 is recommended. Dimensions ca. 15 pieces/sq.m. screw distance 20 cm on the board edge and 30 cm on inner sections. Sharp tip with double-lead wood and steel threads (Hi-Low) that form an immediate grip, penetrate very quickly into the wooden and steel frame at the same time as the grooves under the head embed the screw. Suitable for the installation of cement-based plates, etc. onto wooden frames or steel frames of a material thickness of 1.0 mm.
- Article number: 472688
- Suppl. article no: 472688
- Ean no: 7333123002341
- Replaces art.nbr: 472545
- Material class TD302A
- This is an alternative to item 472545
Technical data
- Packagin Size: 1 FRP/49 FRP/147 FRP
- Diameter: 4.2 mm
- Length: 30 mm
- Thread length: 26 mm
- Head diameter: 7 mm
- Drill capacity: 1 mm
- Bit size: 2
- Screwing system: Phillips PH
- Surface protection: Galvanic/electrolytic zinc plated
- Fixx-pack: PA 6
- Corrosion class according to EN ISO 9223: C1
- Hardened: Yes
- Material: Steel
