Joma

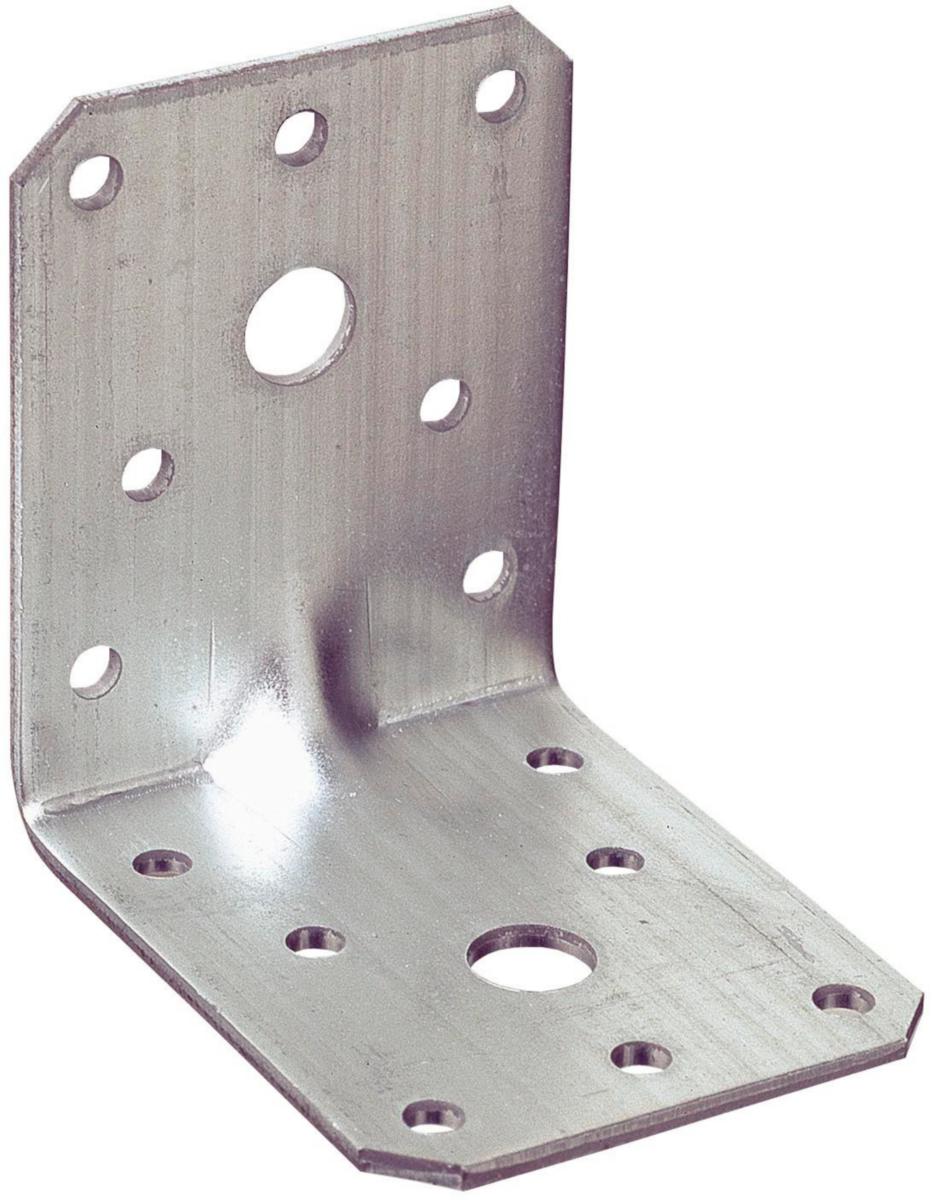

Angle fitting 470
ANGLE FITTING 470M ETA-09/0316 2.5X70X70X55 M ENHANCEMENT
Article number: Suppl. article no:
269928
470M000
to see price and stock
The angle bracket is used mainly for cross joints of wood e.g. between truss and wall plate at roof ridge anchoring to bearing beams. The bracket can be used for bolt attachment to concrete, light concrete or tile. Delivered with (W) or without (W/O) reinforcement. Other: Nail hole Ø 5 mm. Bolt hole Ø 11 mm.
- Article number: 269928
- Suppl. article no: 470M000
- Ean no: 57319654702009
- Material class TD1200
- This is an alternative to item 21192760
Technical data
- Packagin Size: 1 ST/50 ST/900 ST/4500 ST
- Designation: 470M
- Surface protection: Hot-dip galvanised
- Width: 55 mm
- Length: 70 mm
- Height: 70 mm
- Thickness: 2.5 mm
- Hole diameter: 5-11 mm
- Material: Steel
- Material: Sheet steel
- CE-marking: EN 14545:2008
