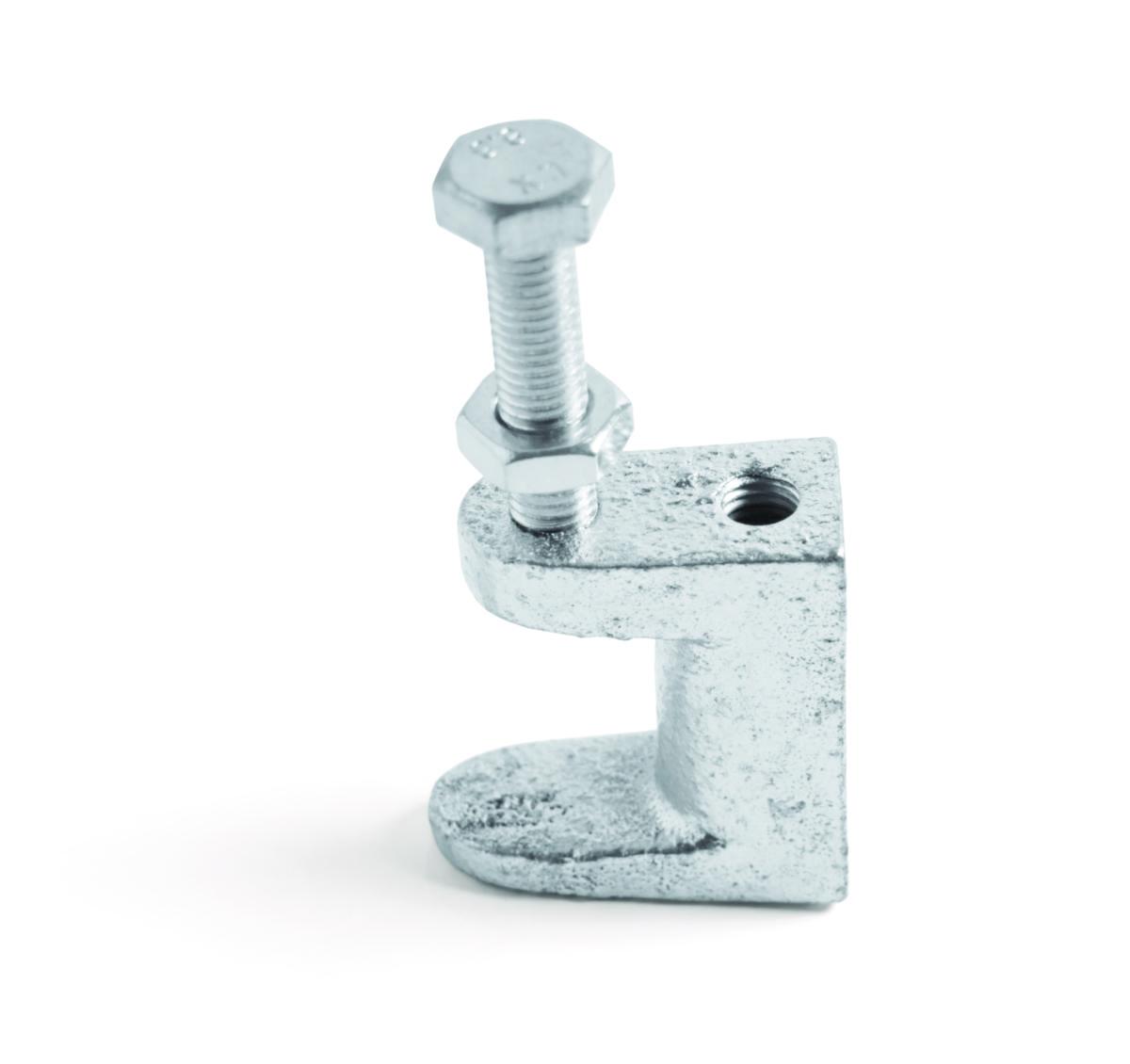

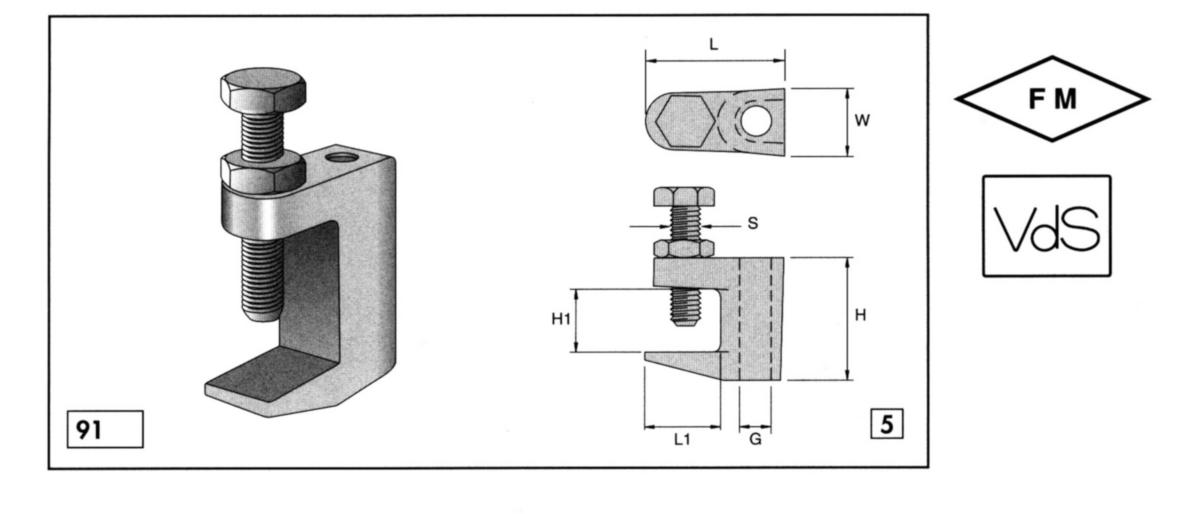

Beam Clamp type "Big Mouth", electro-galvanized Fzb
BEAM CLAMP M10 LARGE 0
Article number: Suppl. article no:
3820390
TK16-M10
to see price and stock
With threaded hole and extra large gripping capacity.
- Article number: 3820390
- Suppl. article no: TK16-M10
- Ean no: 7340080705574
- Material class PLQ160
Technical data
- Packagin Size: 1 ST/25 ST
- Thread size (metric): 10
- Suitable for flange thickness: 0-28 mm
- Permitted work load: 2600 N
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Model: With internal thread
- Horizontal mounting: Yes
- Vertical mounting: Yes
- Thread type: Metric
- Type: Big Mouth
- For threaded rod: M10
- REACH Date: 2026-01-12
- REACH Information obligation: No
