Schneider Electric
HDMI socket angled
CYB KIT ANGELED HDMI WHITE
Article number: Suppl. article no:
6221764
INS60510
to see price and stock

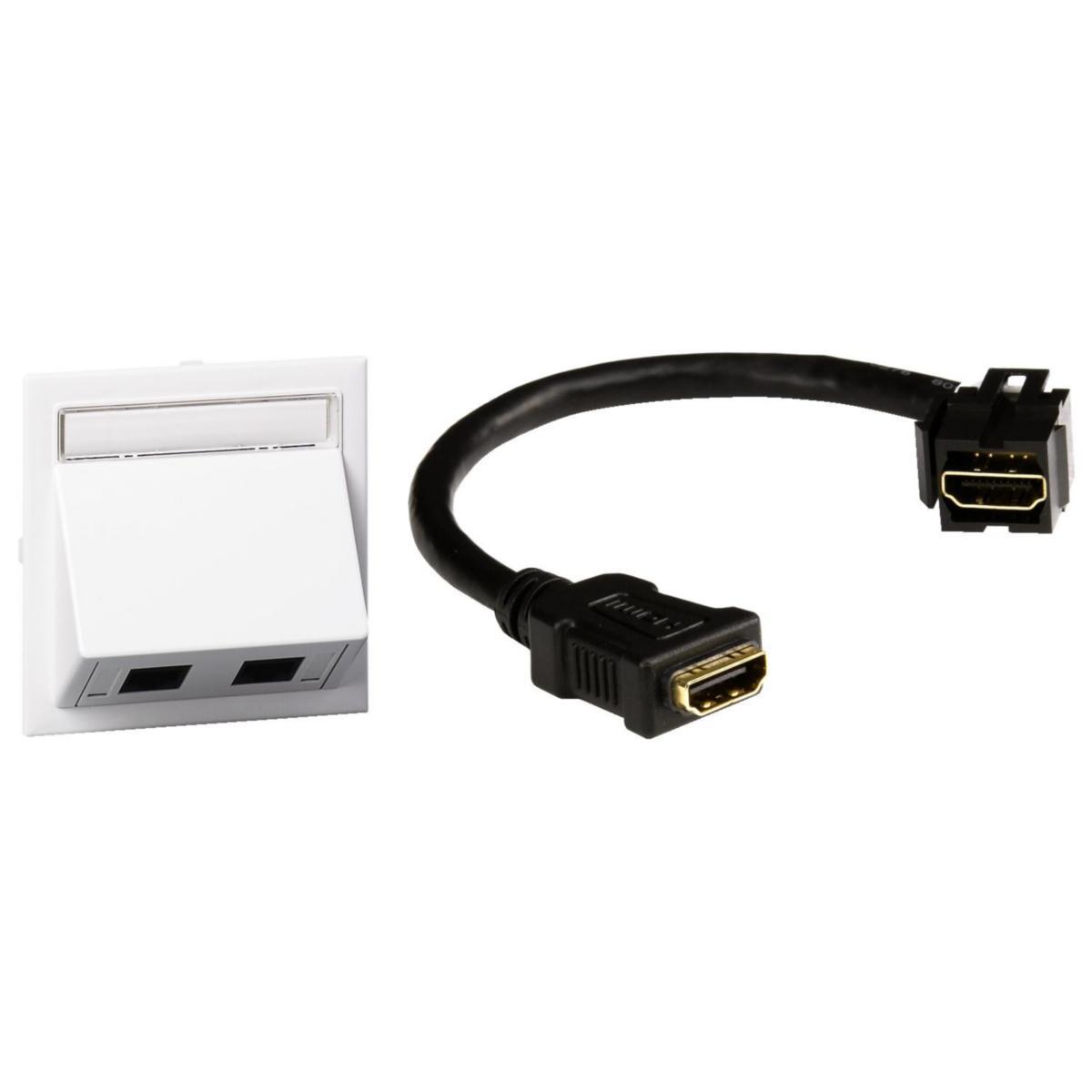

HDMI CYB kit angled. Kit with F80 mounting frame, marking window with label, angled lid, mounting plate with HDMI connector and cable 200mm.
- Article number: 6221764
- Suppl. article no: INS60510
- Ean no: 3606481298348
- Material class QD5700
Technical data
- Packagin Size: 1 ST/10 ST
- Type: INS60510
- Product series: CYB
- Utilization: HDMI
- Colour: White
- Shielded buses: No
- Suitable for number of connectors: 2
- With buses/couplings: No
- Assembly arrangement: Basic element with complete housing
- With dust cover: Yes
- Outlet direction: Inclined
- Imprintable label: With indication plate
- With imprint: No
- Mounting method: Wall duct
- With strain relief: No
- RAL-number (similar): 9016
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Luster terminal: No
- Suitable for degree of protection (IP): IP20
- With hinged lid: No
- Shielded housing: No
- Support ring: No
- Transparent: No
- Type of fastening: Mounting with claw
- Surface finishing: Matt
- Surface protection: Untreated
- Device width: 84 mm
- Device depth: 50 mm
- Device height: 84 mm
- Impact strength: IK04
- Anti-bacterial treatment: No
- With lighting: No
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
- Isolated connections: No
- Contact type: Female
