Schneider Electric

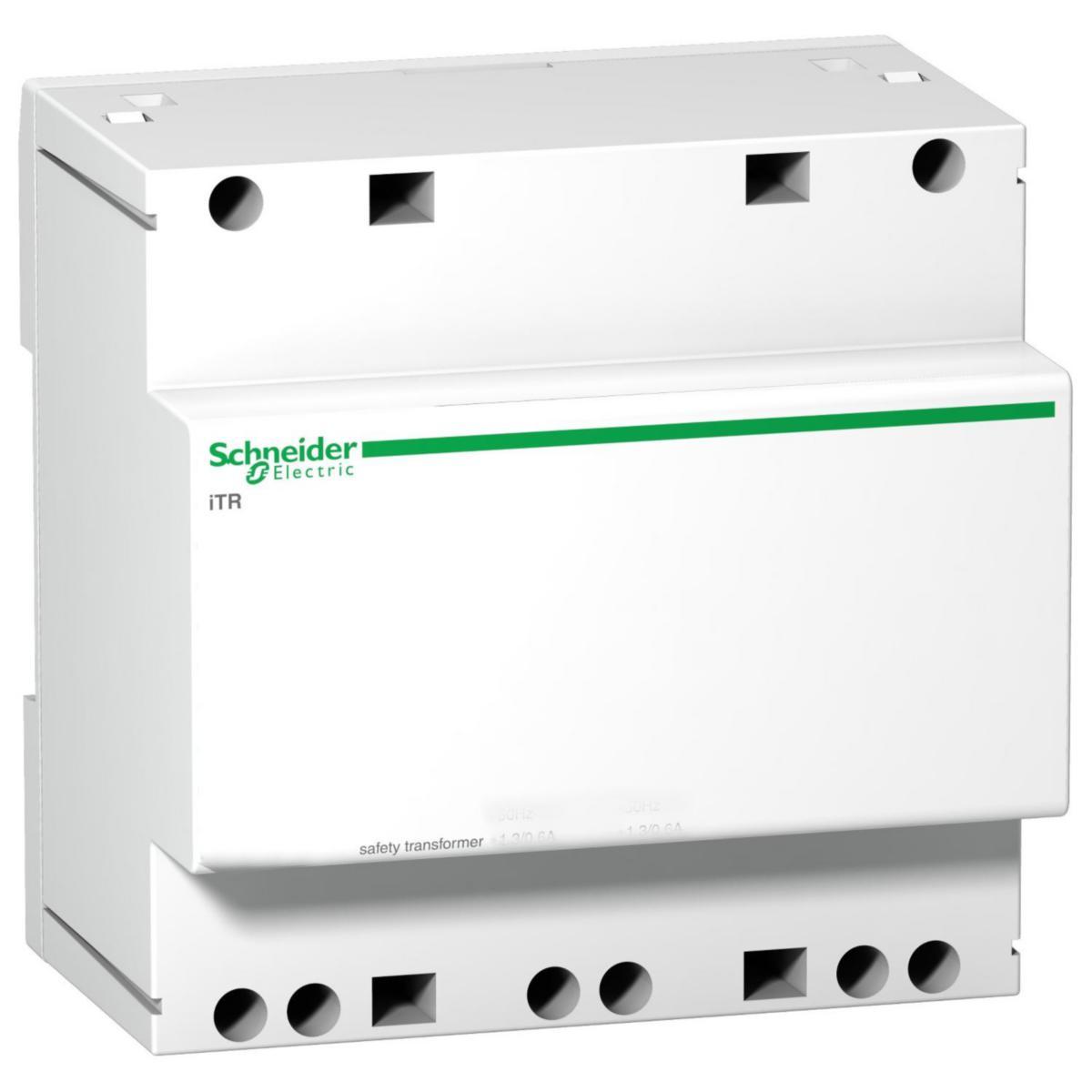

Safety transformer iTR
TRANSF 63VA 230VCA 12-24VCA A9A15222
Article number: Suppl. article no:
5203049
A9A15222
to see price and stock
Rated voltage: 230 V primary, 12/24 V secondary.
- Article number: 5203049
- Suppl. article no: A9A15222
- Ean no: 3606480097836
- Material class QL540A
Technical data
- Packagin Size: 1 ST/14 ST
- Type: A9A15222
- Primary voltage: 230 V
- Secondary voltage 1: 12 V
- Secondary voltage 2: 24 V
- Secondary voltage 3: 0 V
- Secondary amperage 1: 5.25 A
- Secondary amperage 2: 2.6 A
- Secondary amperage 3: 0 A
- Max. output power: 0 W
- With on/off switch: No
- Width in number of modular spacings: 5
- Width: 90 mm
- Height: 89 mm
- Length: 60 mm
- Short-circuit protected: Yes
- Flush-mounted installation: No
- Surface mounting: No
- Max. power loss: 4 W
- Max. output current: 0 A
- Suitable for distribution board: Yes
- Temperature protection: Yes
- Type of transformer: Safety transformer
- REACH Date: 2025-07-18
- REACH contains candidate substances: 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)
- REACH Information obligation: Yes
