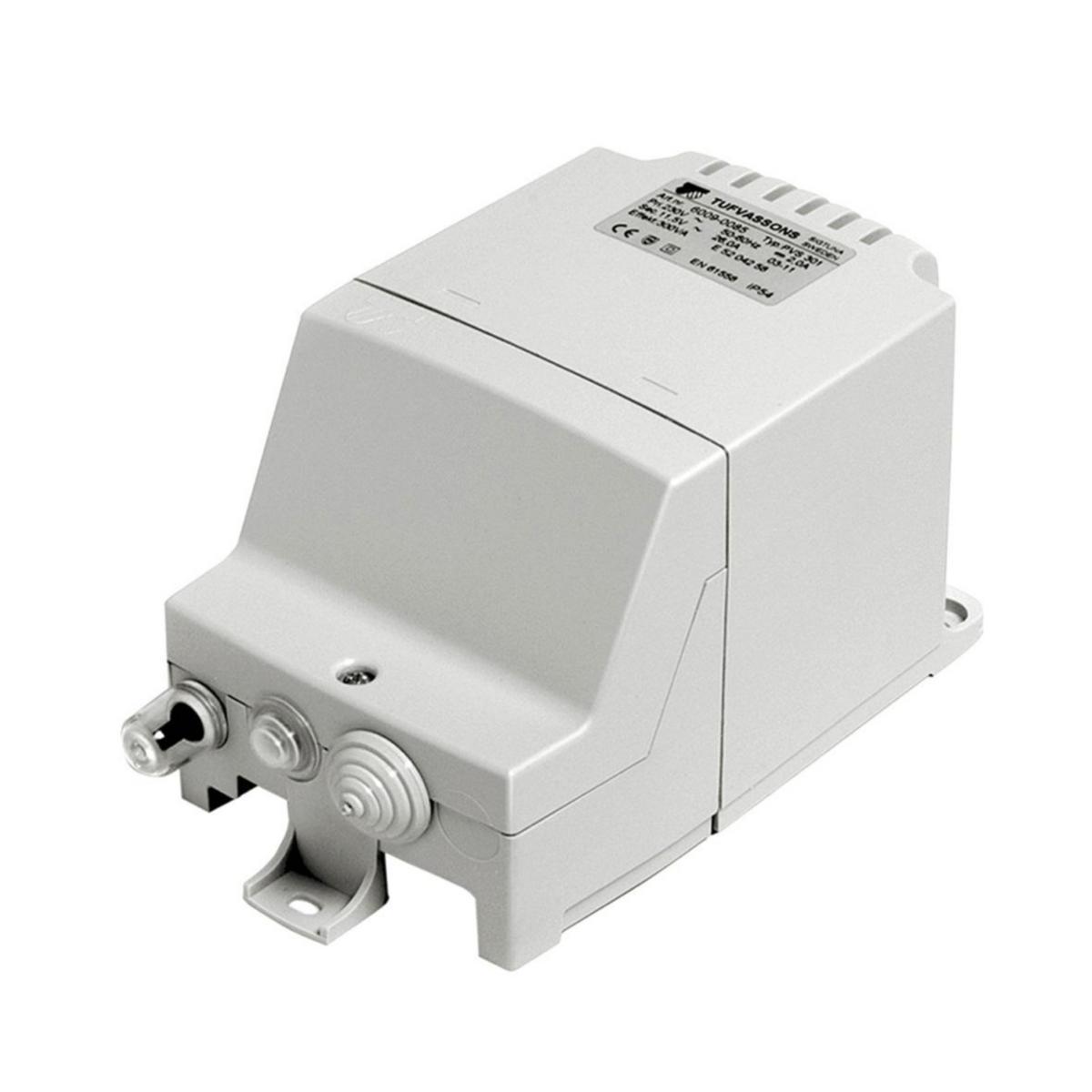

Transformer PVS 230V/24V for screw fastening

Protective transformer according to EN 61 558 in class II for use in isolation or an inefficient insulated system where U = 50V alternating current. The transformers are designed with safety separation between the primary and secondary windings and intended for the supply of SELV and PELV circuits. The transformers are CE-marked and meet the applicable LVD and EMC requirements and insulation requirement class III that are 4kV.
Transformers are nested within the cover of the light grey UV resistant self-fading thermoplastic and fitted with plastic bushings > IP44, breakout openings < IP40.
The secondary voltage varies linearly with the load and the nominal voltage is indicated in the event of 100% load, the transformer must never be overloaded, but can cope with a temporary start current of 300% for 10 s.
The transformer is intended for use in appropriate areas such as supply voltage of the actuator control, thermostats, light and sound signals.
