AhlsellProductsElectricTelecoms, Data, Security 50-6351 Network material for dataComplete sockets with module socketConnection kits with modular socket
Elko

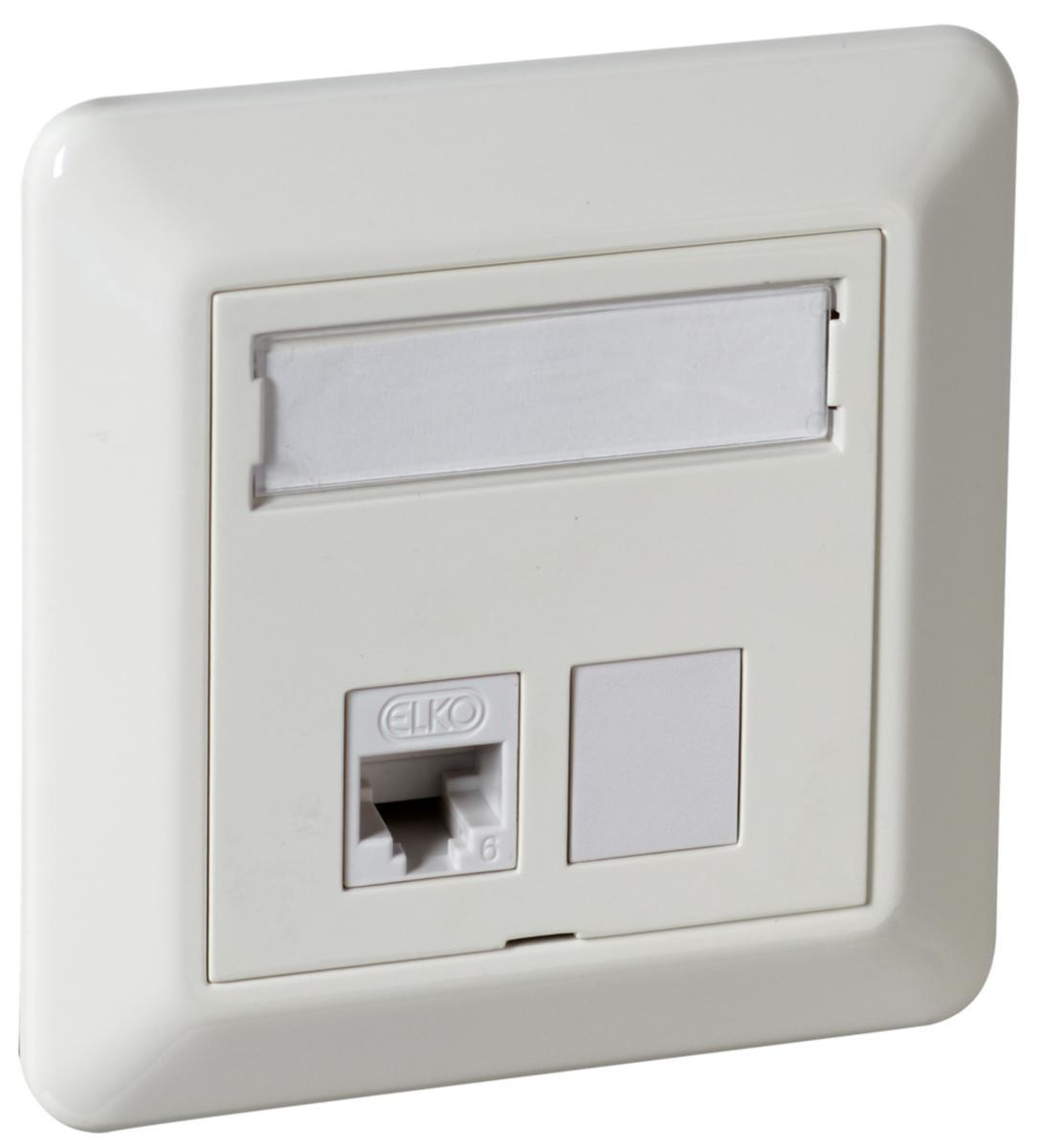

Modular socket straight TL UTP C6 RS, Elko
SOCKET 1X8 UTP C6 TL FV RS 5530
Article number: Suppl. article no:
5105360
EKO05530
to see price and stock
Modular Output TL UTP C6 in complete output kits consisting of unshielded modular jacket TCS ToolLess, straight centre plate and frame. Simple, tool-less contacting. Can be contacted in accordance with 568A or 568B. Jacket snaps directly in the centre plate. The modular outlet has been designed and developed in accordance with SS-EN 50173 series, and is part of the warranty system ELKO TCS. Assembly depth 30 mm. Mountain white colour.
- Article number: 5105360
- Suppl. article no: EKO05530
- Ean no: 7020160553003
- Material class QR3100
Technical data
- Packagin Size: 1 PCS/5 PCS/25 PCS
- Product series: RS
- Suitable for number of connectors: 1
- Type of connector: RJ45 8(8)
- With buses/couplings: Yes
- Category: 6
- Colour: White
- Outlet direction: Straight
- RAL-number: 9010
- Shielded buses: No
- Compatible with third-party covers: Yes
- With dust cover: No
- Colour coding: Yes
- Floor box/subfloor mounted: Yes
- Duct installation: Yes
- With label space: Yes
- Separate strain relief: No
- Separate earthing connection: No
- Degree of protection (IP): IP20
- Type of fastening: Screwing
- Shielded housing: No
- Surface mounting: No
- With terminal resistor: No
- Connection type: Other
- REACH Date: 2022-08-09
- Type: EKO05530
- REACH Information obligation: No
