Elko

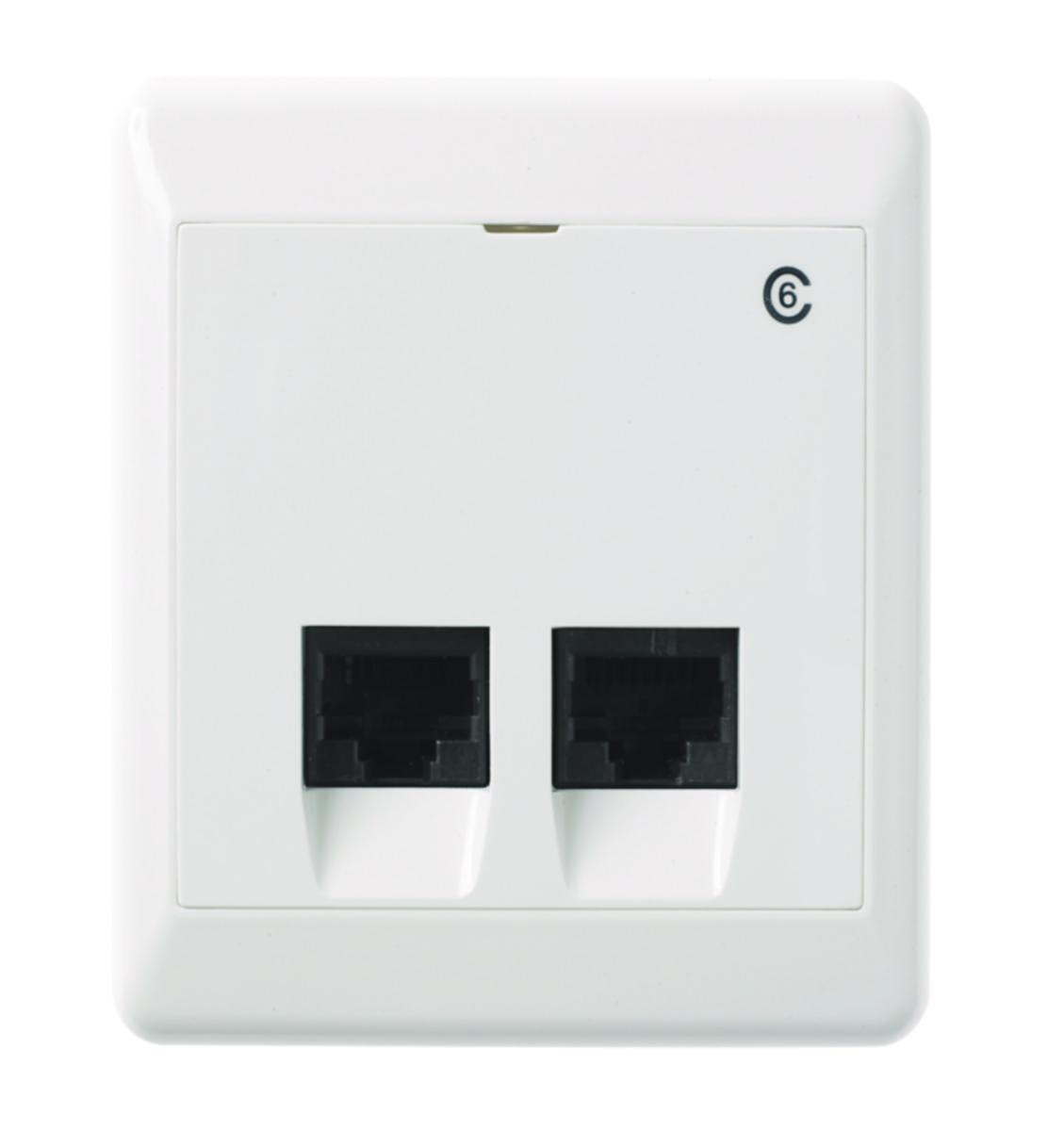

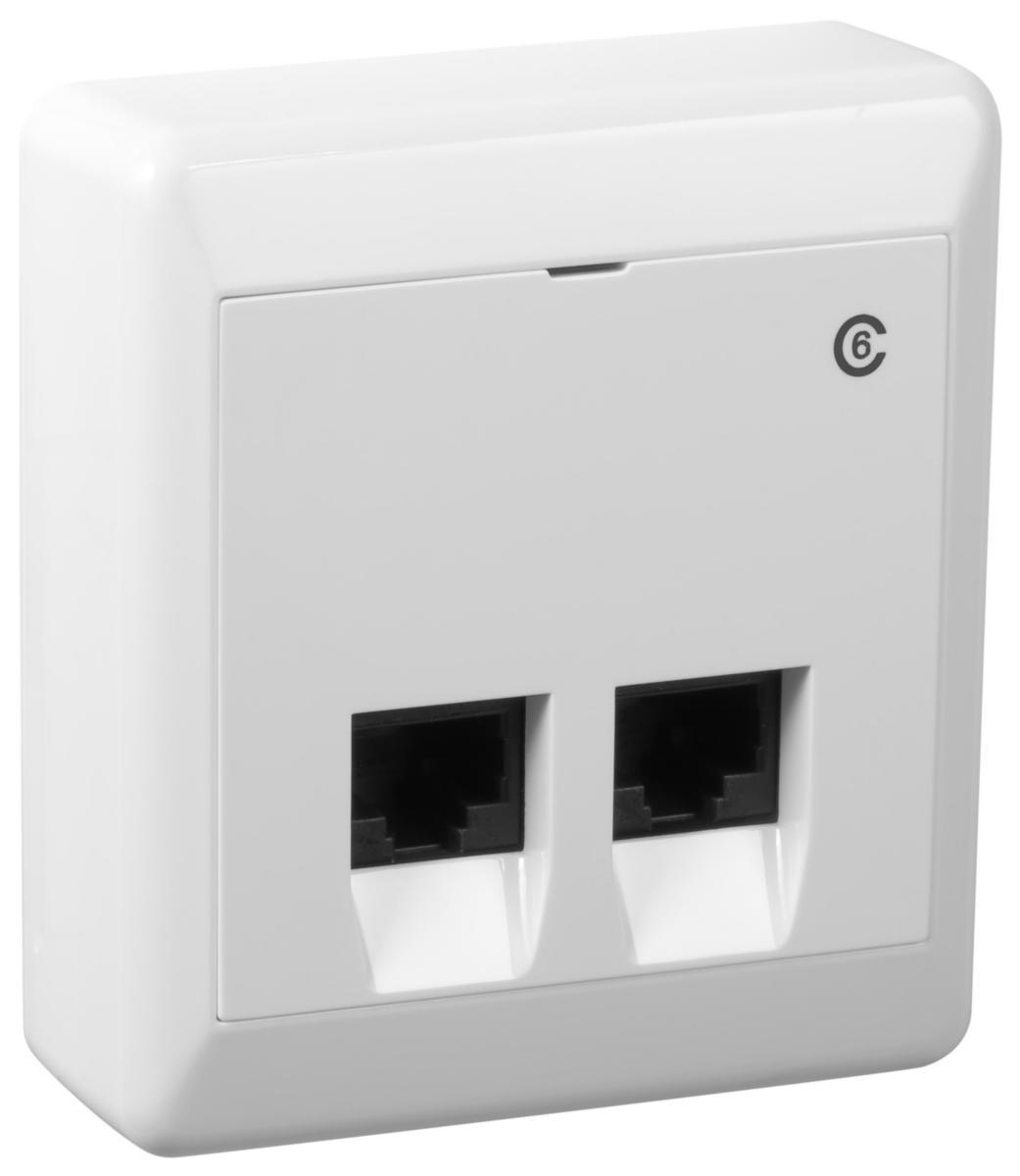

Modular socket surface mounted LSA UTP C6
RS16/MOD S 2X8 CAT6 UTP PW 4550
Article number: Suppl. article no:
5105144
EKO04550
to see price and stock
Complete surface mounting modular sockets UTP C6. Connection of the leads is by slotted contacts type LSA. Simple contact, straight forward with outlet in position. Clear colour labelling, according to the EIA/TIA on the terminals. The modular outlet is approved in accordance with the standard SS EN 50 173 series and is part of the warranty system ELKO TCS. Mountain white colour.
- Article number: 5105144
- Suppl. article no: EKO04550
- Ean no: 7020160455000
- Material class QR3101
Technical data
- Packagin Size: 1 PCS/5 PCS/50 PCS
- Product series: RS
- Suitable for number of connectors: 2
- Type of connector: 2x RJ45 8(8)
- With buses/couplings: Yes
- Category: 6
- Colour: White
- Outlet direction: Straight
- RAL-number: 9010
- Shielded buses: No
- Compatible with third-party covers: Yes
- With dust cover: No
- Colour coding: Yes
- Floor box/subfloor mounted: Yes
- Duct installation: Yes
- With label space: Yes
- Mounting method shielding connection: None
- Separate strain relief: No
- Separate earthing connection: No
- Degree of protection (IP): IP20
- Type of fastening: Screwing
- Shielded housing: No
- Surface mounting: Yes
- Device width: 74 mm
- Device height: 84 mm
- With terminal resistor: No
- Connection type: LSA
- REACH Date: 2022-08-09
- Type: EKO04550
- REACH Information obligation: No
