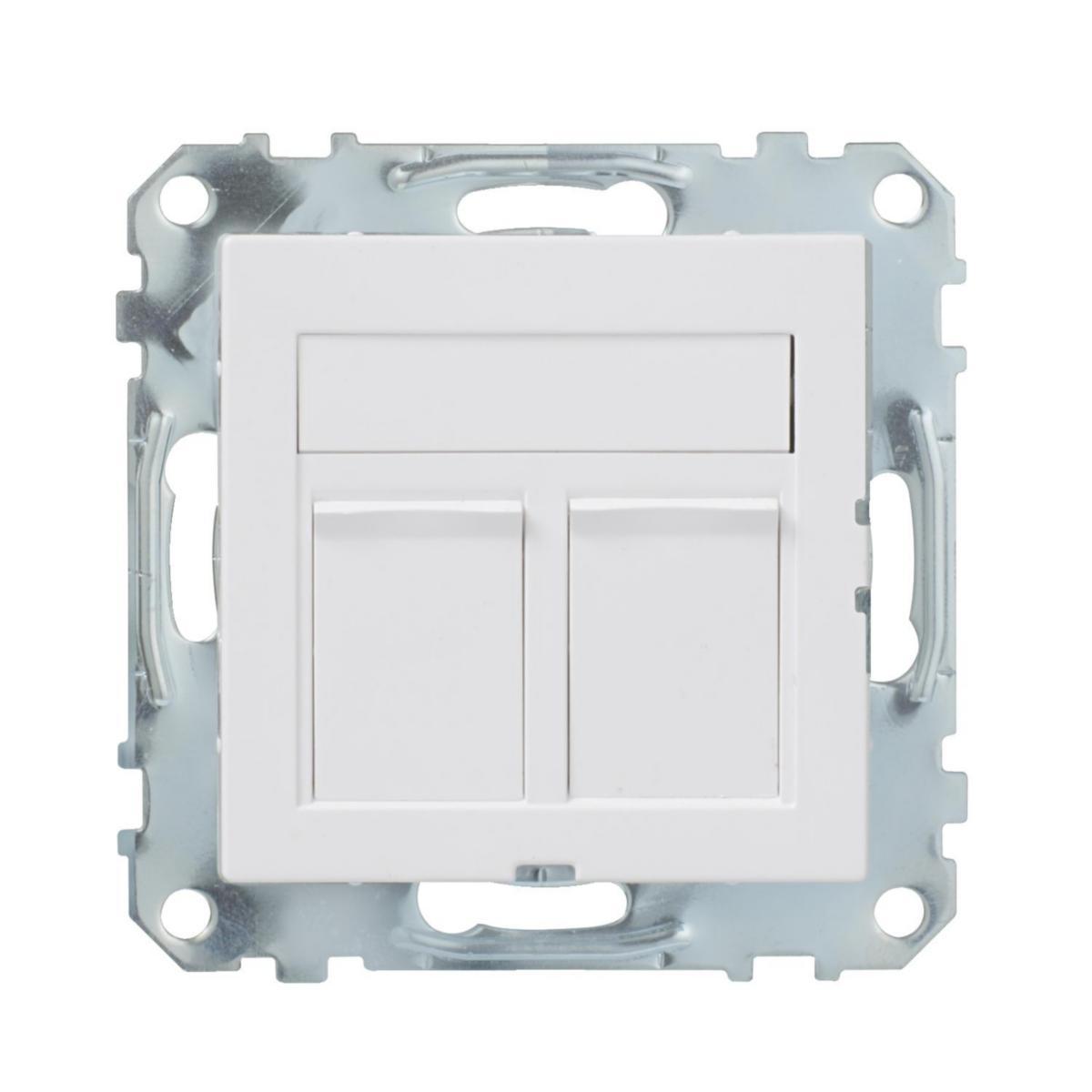

Complete module socket Exxact 2xC6A STP, Schneider
MOD-PL EXXACT 2XK6ASTP PL WH WDE002439 RAK
Article number: Suppl. article no:
5102694
WDE002439
to see price and stock
Data output Exxact Cat 6A STP in straight or curved design, with or without frame. The connection kit contains 2 pcs Kat 6A STP S-One modular jack, 60 pcs plate support frame for apparatus box c / c 1 mm, 1 pcs white flat / straight centre plate with dust traps or 1 pcs white curved centre plate.
- Article number: 5102694
- Suppl. article no: WDE002439
- Ean no: 3606480910357
- Material class QR3000
Technical data
- Product series: Actassi
- Suitable for number of connectors: 2
- Type of connector: 2x RJ45 8(8)
- With buses/couplings: TRUE
- Category: 6A (IEC)
- Colour: White
- Assembly arrangement: Basic element with central cover plate
- Outlet direction: Straight
- Shielded buses: TRUE
- Compatible with third-party covers: TRUE
- With dust cover: TRUE
- Colour coding: TRUE
- Floor box/subfloor mounted: FALSE
- Duct installation: FALSE
- With label space: TRUE
- Mechanical coding: FALSE
- Mounting method shielding connection: Clip
- Separate strain relief: TRUE
- Separate earthing connection: FALSE
- Degree of protection (IP): IP20
- Type of fastening: Screwing
- Shielded housing: TRUE
- Surface mounting: FALSE
- Device width: 70 mm
- Device height: 70 mm
- Device depth: 35 mm
- Connection type: Insulation displacement connector
- REACH Date: 2022-07-20
- Type: WDE002439
- REACH Information obligation: No
