Schneider Electric

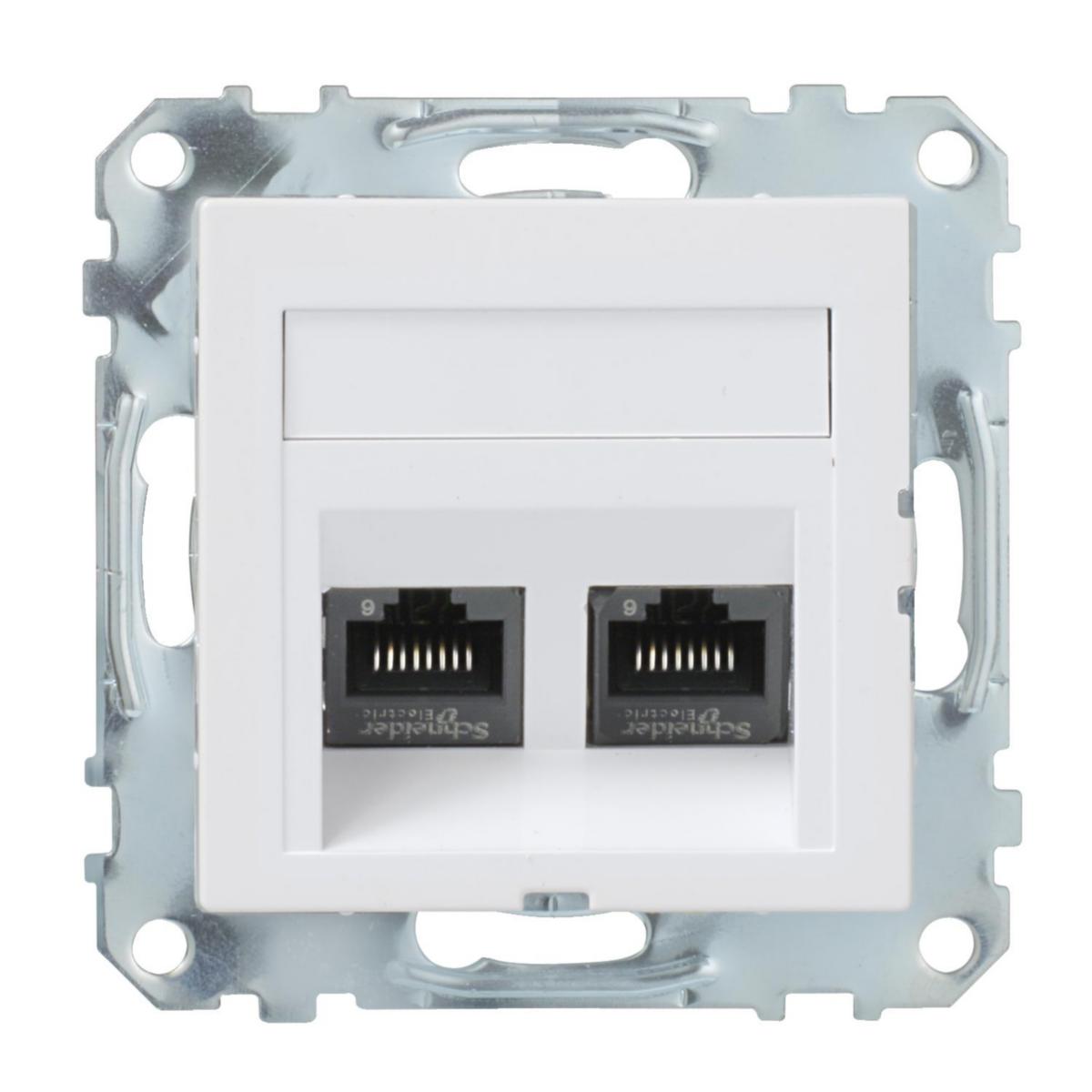

Complete module socket Exxact 2xC6 UTP, Schneider
MOD-PL EXXACT 2XK6PLP VI WH WDE002427 VINKLAD
Article number: Suppl. article no:
5102691
WDE002427
to see price and stock
Data output Exxact Cat 6 UTP in straight or curved design, with or without frame. The connection kit contains 2 pcs Kat 6 UTP S-One modular jack, 1 pcs plate support frame for apparatus box c / c 60 mm, 1 pcs white flat / straight centre plate with dust traps or 1 pcs white curved centre plate.
- Article number: 5102691
- Suppl. article no: WDE002427
- Ean no: 3606480202469
- Material class QR3000
Technical data
- Type: WDE002427
- Design: Without frame, angled
- Product series: Actassi
- Suitable for number of connectors: 2
- Type of connector: RJ45 8(4)
- With buses/couplings: No
- Category: 6
- Colour: White
- Assembly arrangement: Basic element with central cover plate
- Outlet direction: Straight
- Shielded buses: No
- Compatible with third-party covers: Yes
- With dust cover: No
- Colour coding: No
- Floor box/subfloor mounted: No
- Duct installation: No
- With label space: No
- Mechanical coding: No
- Mounting method shielding connection: None
- Separate strain relief: No
- Separate earthing connection: No
- Degree of protection (IP): IP20
- Type of fastening: Screwing
- Shielded housing: No
- Surface mounting: No
- Device width: 70 mm
- Device height: 70 mm
- Device depth: 35 mm
- Connection type: Insulation displacement connector
- REACH Date: 2025-07-18
- GWP-tot (A1-A3): 0,2293 kgCO2e/ST
- REACH Information obligation: No
