Schneider Electric
Modular socket Exxact outside with modular jack S-One
SURFACE BOX S1/KEYSTONE C6 UTP WDE002431
Article number: Suppl. article no:
5100263
WDE002431
to see price and stock

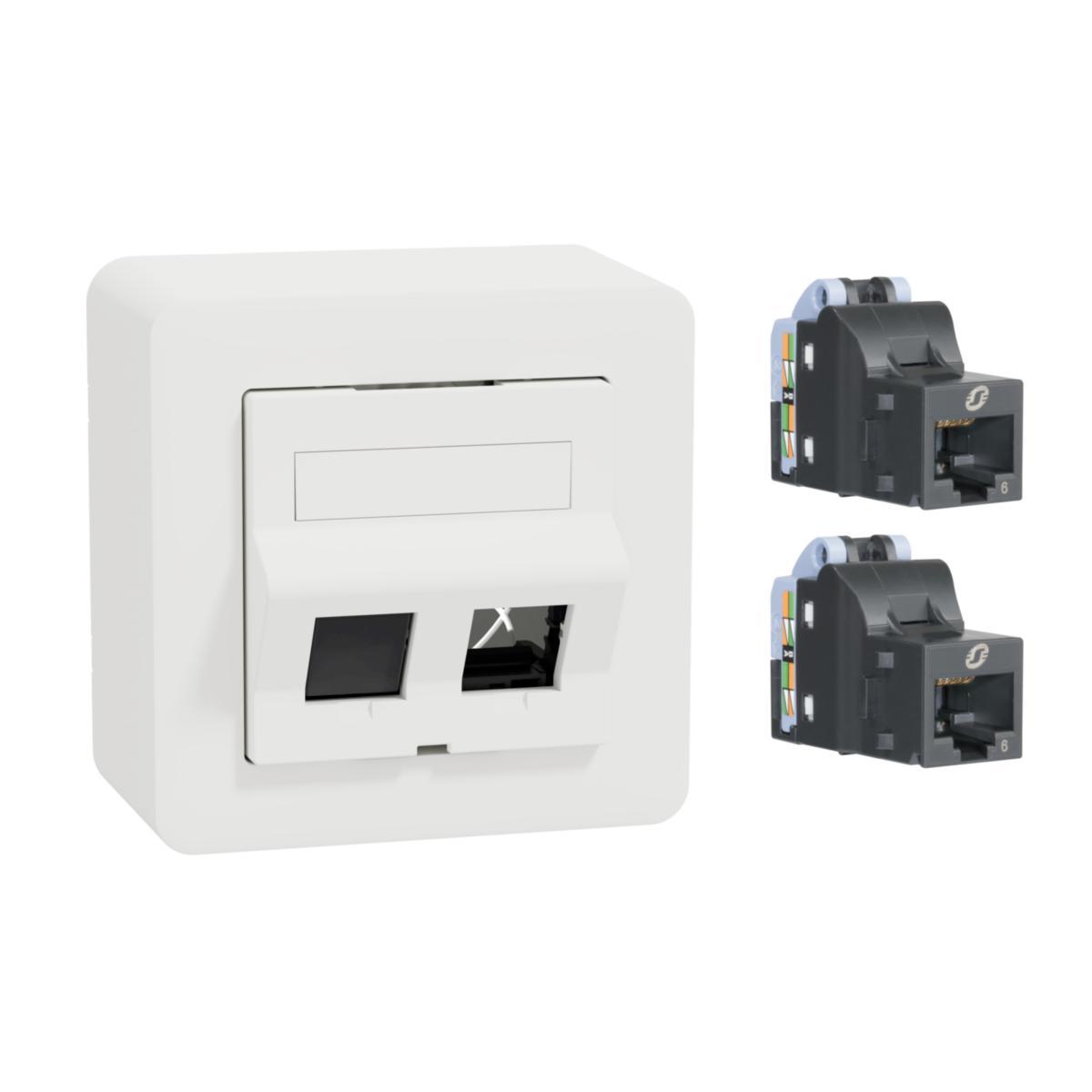

Data socket Exxact Kat 6 UTP with UP-Box 47mm in angled design. The connection kit contains 2 Cat 6 UTP S-One modular jacks. Adjustable nameplate with three sides; glossy, text or color coding.
- Article number: 5100263
- Suppl. article no: WDE002431
- Ean no: 3606480202490
- Material class QR3000
Technical data
- Packagin Size: 1 ST/10 ST/210 ST
- Suitable for number of connectors: 2
- Type of connector: 2x RJ45 8(8)
- With buses/couplings: Yes
- Category: 6
- Colour: White
- Assembly arrangement: Basic element with complete housing
- Outlet direction: Inclined
- RAL-number: 9003
- Shielded buses: No
- Compatible with third-party covers: Yes
- With dust cover: No
- Colour coding: Yes
- Floor box/subfloor mounted: No
- Duct installation: No
- With label space: Yes
- Mechanical coding: No
- Mounting method shielding connection: None
- Separate strain relief: No
- Separate earthing connection: No
- Degree of protection (IP): IP20
- Type of fastening: Screwing
- Shielded housing: No
- Surface mounting: Yes
- Device width: 85 mm
- Device height: 85 mm
- Device depth: 47 mm
- Connection type: Insulation displacement connector
- REACH Date: 2022-07-20
- REACH Information obligation: No
