Schneider Electric

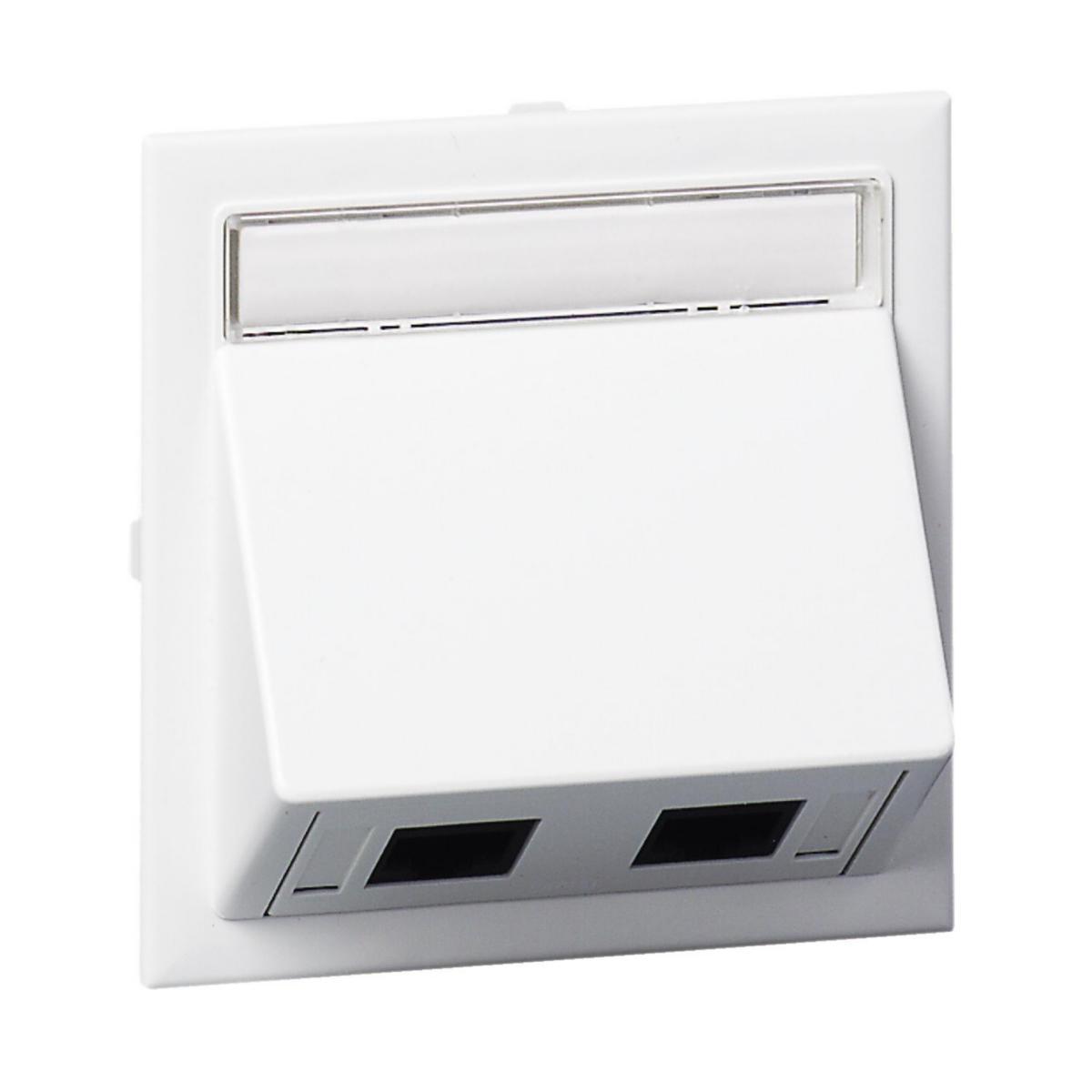

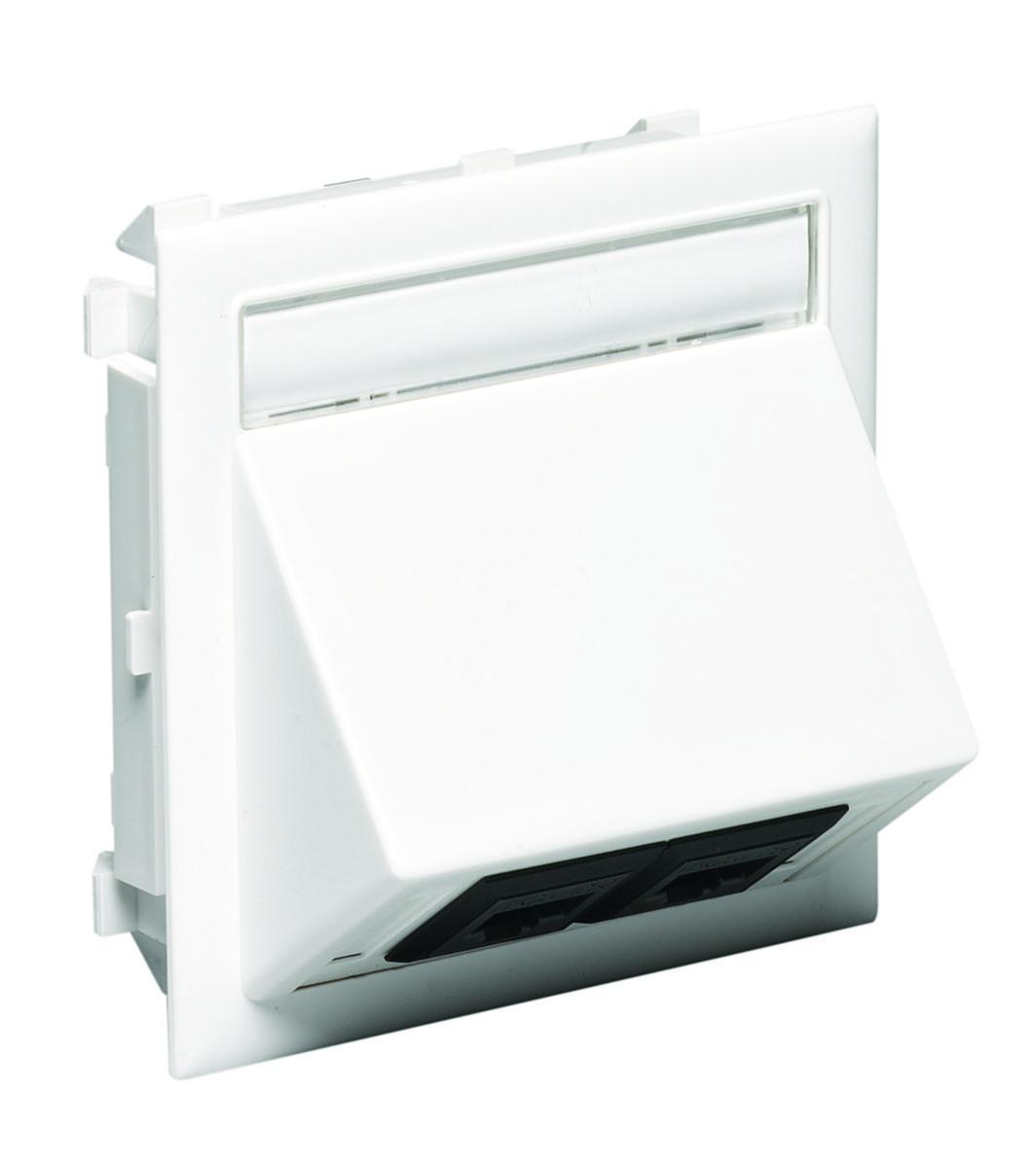

Connection kit Lex Com Cat6 UTP
CON.KIT, 1XLEXCOM CAT6 UTP A,B 5974090
Article number: Suppl. article no:
5113836
5974090
to see price and stock
Connecting Kit for mounting in Thorsman installation channels, i.e., ducts, poles and boxes. The kit contains angled cover with holder for snapping into the front opening, contact washer, frame and connectors LexCom Cat6. UTP=unshielded, STP=shielded. 568 A-/B connection. The kit can also be installed surface-mounted on the wall or junction box c/c 60 with the mounting frame
- Article number: 5113836
- Suppl. article no: 5974090
- Ean no: 7315885974098
- Material class QR3000
Technical data
- Packagin Size: 1 PCS/10 PCS/400 PCS
- Product series: CYB
- Suitable for number of connectors: 1
- Type of connector: RJ45 8(8)
- With buses/couplings: No
- Category: 6
- Colour: White
- Assembly arrangement: Basic element with full cover plate
- Outlet direction: Inclined
- RAL-number: 9016
- Shielded buses: No
- Compatible with third-party covers: No
- With dust cover: No
- Colour coding: No
- Floor box/subfloor mounted: Yes
- Duct installation: Yes
- With label space: Yes
- Mechanical coding: No
- Mounting method shielding connection: None
- Separate strain relief: No
- Separate earthing connection: No
- Degree of protection (IP): IP20
- Type of fastening: Engage (snap)
- Shielded housing: No
- Surface mounting: Yes
- Device width: 84 mm
- Device height: 84 mm
- Device depth: 50 mm
- Flush-mounted installation: No
- With terminal resistor: No
- Connection type: Insulation displacement connector
- REACH Date: 2025-07-18
- REACH Information obligation: No
