Wall box inner 4 fibre TD Fiberoptik - LM WALL MOUNT BOX 4 SC
Hexatronic Fiberoptic

Wall box inner 4 fibre TD Fiberoptik

LM WALL MOUNT BOX 4 SC
Article number:
5057870
Suppl. article no:
LM-5311
‌
‌
‌
‌
‌
 to see price and stock
Byggvarubedomning: Accepteras

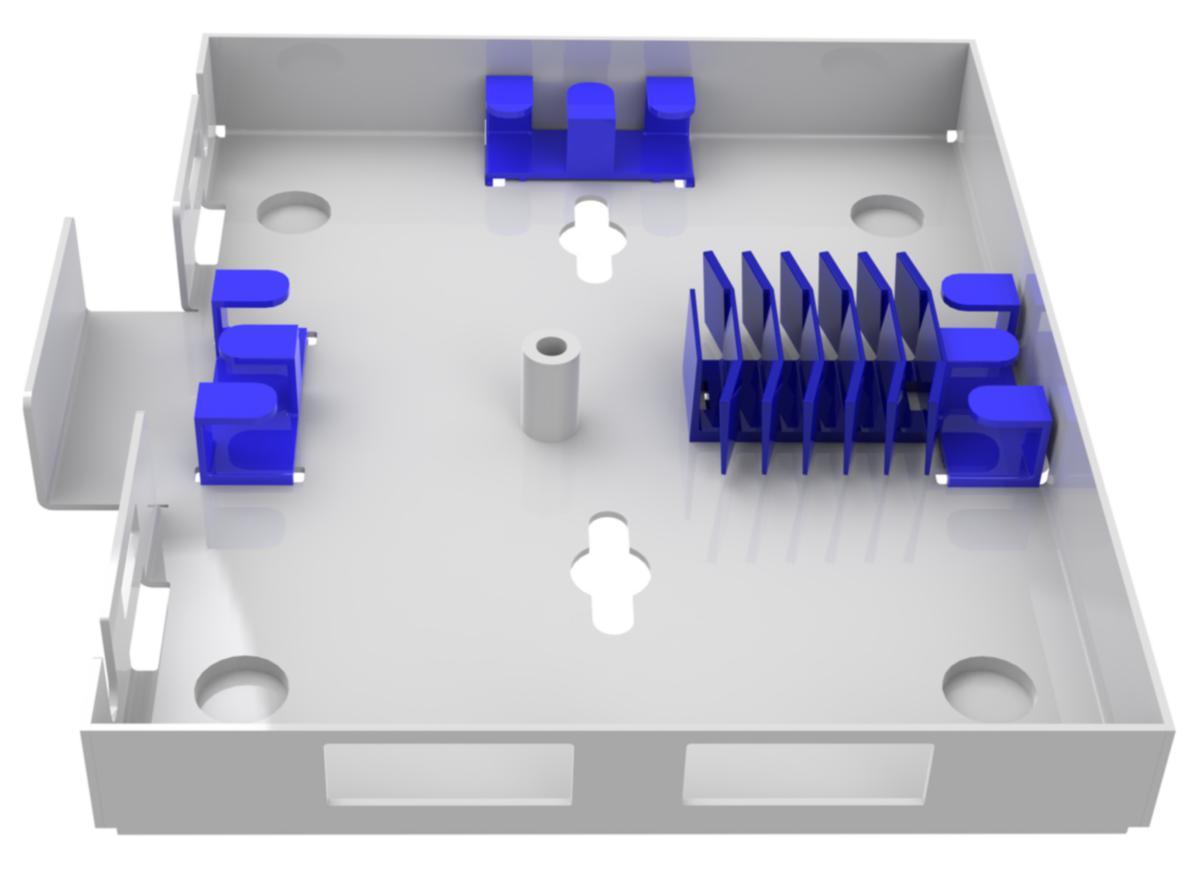

Wall box 4SC (2xSC duplex). Lacquered steel. Colour coral white, structural lacquer. Wall box with very low build height, only 20mm protrusion from wall. To be used as wall-mounted ODF at customer. Supplied complete with holder for joints, 12 single or 3 ribbon joints. Splice sleeves with max. length 45 mm are recommended. Guide for fibres in the box guarantees a minimum bend radius 30 mm. Traditional cable, micro cable and micro ducts can be connected. The box has stand offs to wall. Can be sealed with a seal.
  • Article number:
    5057870
  • Suppl. article no:
    LM-5311
  • Material class
    QR5641
Technical data
  • Packagin Size: 1 ST/4 ST/10 ST
  • Width: 130 mm
  • Height: 170 mm
  • Deep: 20 mm
  • Skanova approved: Ja
  • Skanova article number: 4/NCLA10183
  • Information: Wall box 4
  • REACH Date: 2022-10-20
  • REACH Information obligation: No
