Ledvance

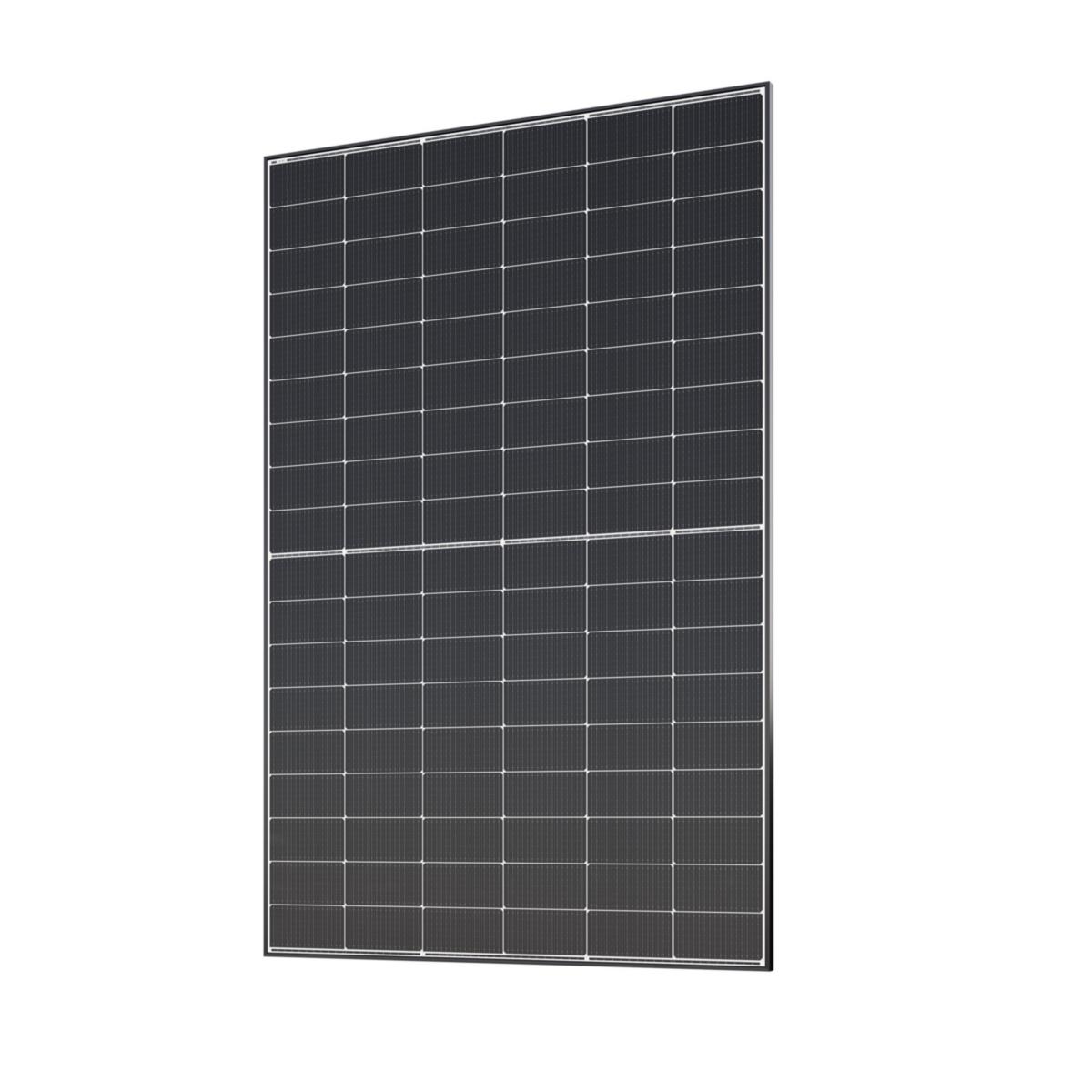

Solar panel with double glass
PV-PANEL 590WP BIFACIAL
Article number: Suppl. article no:
2742188
AC6626400LR
to see price and stock
LEDVANCE SOLAR PANEL N-TYPE TOPCon BIFACIAL with anodized aluminum alloy frame. TopCon technology provides higher efficiency thanks to better sunlight conversion than standard panels. Double glazing means that both sides of the panel absorb the light and generate energy.
More power in low light conditions, such as haze, clouds and early morning. The double layers of glass provide extra protection to cope with harsh environments and are adapted to our Nordic climate. The panel is resistant and has limited PID effect (potential induced degradation) thanks to strict quality control in the production process.
Very low annual degradation of the cells thanks to better resistance to high temperatures and durable design with the highest production standards guarantees operational reliability and quality. Multi-bus bar (MBB) technology.
Maximum static load up to 5400 Pa. Delivered fully assembled, ready for installation with MC4 EVO 2 connectors mounted on the panel and 3 bypass diodes. 25-year product warranty and 30-year linear effect guarantee.
More power in low light conditions, such as haze, clouds and early morning. The double layers of glass provide extra protection to cope with harsh environments and are adapted to our Nordic climate. The panel is resistant and has limited PID effect (potential induced degradation) thanks to strict quality control in the production process.
Very low annual degradation of the cells thanks to better resistance to high temperatures and durable design with the highest production standards guarantees operational reliability and quality. Multi-bus bar (MBB) technology.
Maximum static load up to 5400 Pa. Delivered fully assembled, ready for installation with MC4 EVO 2 connectors mounted on the panel and 3 bypass diodes. 25-year product warranty and 30-year linear effect guarantee.
- Article number: 2742188
- Suppl. article no: AC6626400LR
- Ean no: 4099854372537
- Material class QQ3190
Technical data
- Packagin Size: 1 PCS/36 PCS
- MPP power by STC: 590 Wp
- Number of cells: 144
- Cell material: Mono crystalline
- Width: 1134 mm
- Height: 30 mm
- Length: 2278 mm
- Colour frame: Black
- Max. system voltage: 40.06 V
- Colour backsheet: Black
- Colour cells: Blue
- Open circuit voltage: 51.88 V
- Short-circuit current: 14.48 A
- MPP-voltage: 42.92 V
- MPP-current: 13.75 A
- Number of bypass diodes: 3
- Module efficiency factor (STC): 22.84 %
- Power tolerance: 3 %
- Temperature coefficient Isc: 0.045 %/K
- Temperature coefficient Uoc: -0.26 %/K
- Temperature coefficient Pmpp: -0.29 %/K
- Operating temperature: -40-85 °C
- Reverse current load: 30 A
- Glass with anti-reflection coating: Yes
- With connection cable: Yes
- Suitable for vertical/overhead glazing: No
- Cable length: 1400 mm
- Weight: 31.2 kg
- With frame: Yes
- Module structure: Glass-glass
- REACH Date: 2025-01-01
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
