Solplanet

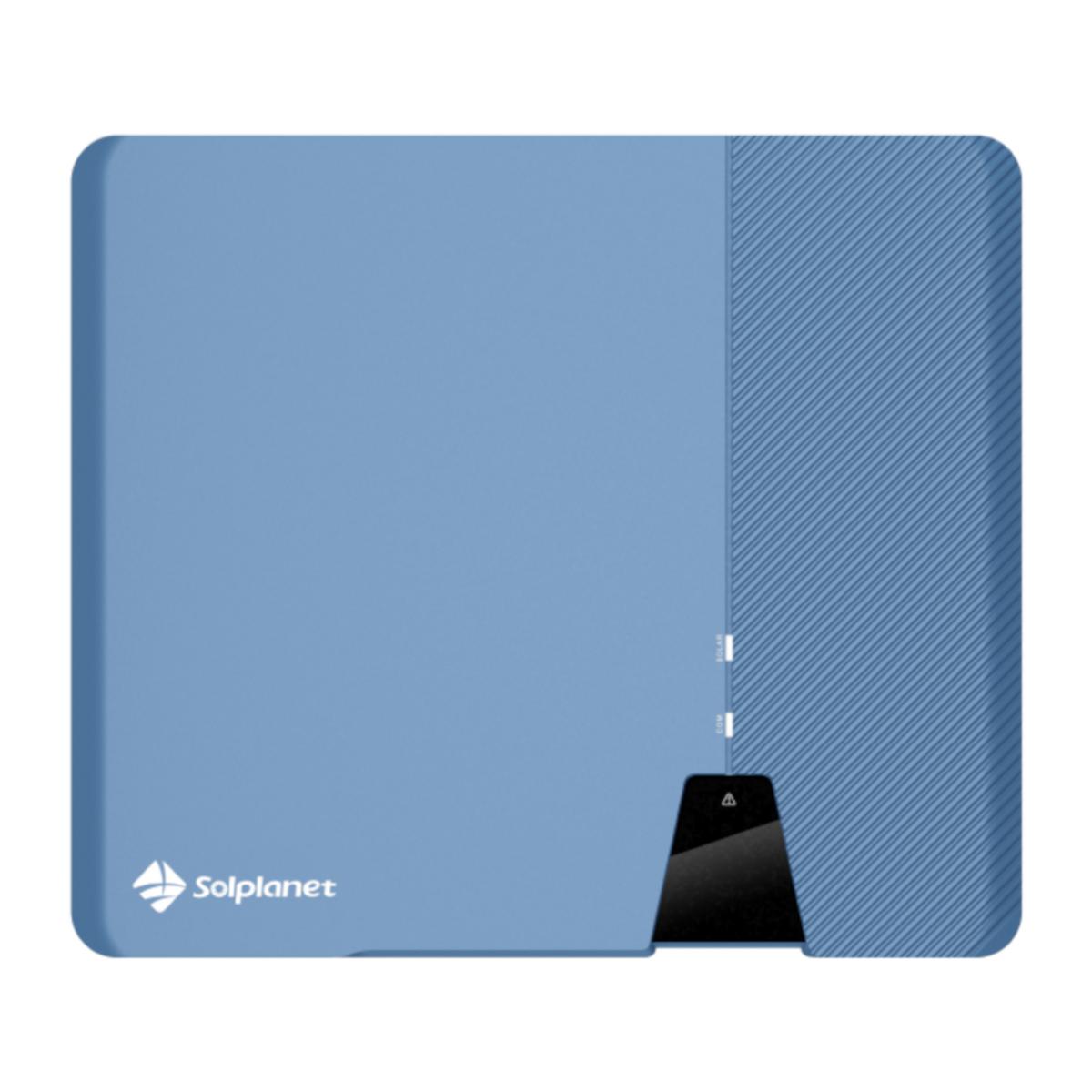

Inverter ASW 3-20K-LT-G2 PRO AFCI+
Inverter 8KW 2 MPPT AFCI+
Article number: Suppl. article no:
2741723
SP0008-60-03-AHP
to see price and stock
• 2 MPPT
• 20A input current per string, compatible with bifacial and large solar panels
• 150% oversizing for higher yields
• Low starting voltage - increased generation in low light conditions
• DC and AC surge protection: Type II
• AFCI - Arc flash protection integrated
• RCMU - Residual Current Monitoring Unit integrated
• ShadeSol shade management system
• Easy commissioning and monitoring with Solplanet App
• Standard warranty 10 years
• Extended warranty period - purchase for an additional 5 or 10 years
• Plug & Play Wifi and 4G- dongle enable monitoring of up to five inverters
• DC Connection: Phoenix Contact -Sunclix - 1100V
• 20A input current per string, compatible with bifacial and large solar panels
• 150% oversizing for higher yields
• Low starting voltage - increased generation in low light conditions
• DC and AC surge protection: Type II
• AFCI - Arc flash protection integrated
• RCMU - Residual Current Monitoring Unit integrated
• ShadeSol shade management system
• Easy commissioning and monitoring with Solplanet App
• Standard warranty 10 years
• Extended warranty period - purchase for an additional 5 or 10 years
• Plug & Play Wifi and 4G- dongle enable monitoring of up to five inverters
• DC Connection: Phoenix Contact -Sunclix - 1100V
- Article number: 2741723
- Suppl. article no: SP0008-60-03-AHP
- Material class QQ3130
Technical data
- Type: ASW8K-LT-G2 PRO
- String connetions per MPPT input: 2
- Max. input power DC: 12000 W
- Max. input voltage DC: 1100 V
- Number of independent MPPT inputs: 2
- European efficiency: 98.2 %
- Degree of protection (IP): IP66
- Width: 503 mm
- Depth: 183 mm
- Height: 435 mm
- Weight: 16 kg
- REACH Date: 2024-05-10
- REACH Information obligation: No
