Huawei

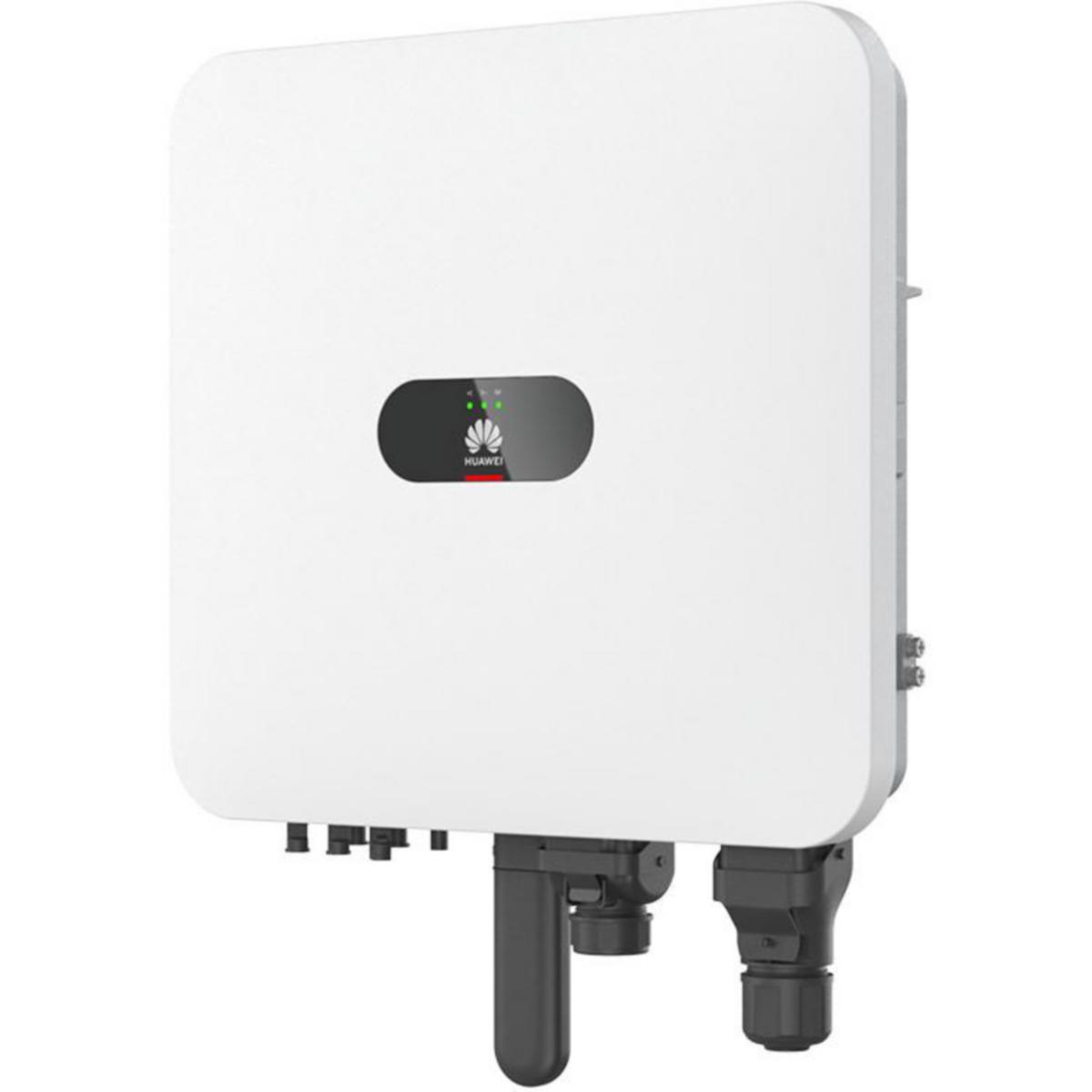

Inverter SUN2000-MAP0 5-12 kW
HUAWEI - SUN2000-MAP0 12 KW
Article number: Suppl. article no:
9815169
SUN2000-12K-MAP0
to see price and stock
Huawei - SUN2000-MAP0 5-12 kW
Hybrid inverter with asymmetric output per phase.
2 MPPT
DC and AC overvoltage protection integrated
DC and AC lightning protection integrated
Arc protection integrated
RCMU - Residual Current Monitoring Unit integrated
Fin cooling with internal circulation IP66
10 year warranty.
Compatible with Huawei LUNA2000-5/10/15-S0 & LUNA2000-7/14/21-S1
Compatible with Huawei optimizers SUN2000-450W-P2, SUN2000-600W-P
Compatible with Huawei SmartGuard-63A-T0 (3 phase)
Possibility to connect up to 42 kWh Huawei batteries to one inverter.
Possibility to connect almost all panels, up to 16 A per string.
(Smart Dongle must be ordered separately)
Hybrid inverter with asymmetric output per phase.
2 MPPT
DC and AC overvoltage protection integrated
DC and AC lightning protection integrated
Arc protection integrated
RCMU - Residual Current Monitoring Unit integrated
Fin cooling with internal circulation IP66
10 year warranty.
Compatible with Huawei LUNA2000-5/10/15-S0 & LUNA2000-7/14/21-S1
Compatible with Huawei optimizers SUN2000-450W-P2, SUN2000-600W-P
Compatible with Huawei SmartGuard-63A-T0 (3 phase)
Possibility to connect up to 42 kWh Huawei batteries to one inverter.
Possibility to connect almost all panels, up to 16 A per string.
(Smart Dongle must be ordered separately)
- Article number: 9815169
- Suppl. article no: SUN2000-12K-MAP0
- Material class QQ3150
Technical data
- Output power: 12 kW
- Weight: 21 kg
- Max. input voltage DC: 1100 V
- Max. input current DC per MPP tracker: 16 A
- Number of independent MPPT inputs: 2
- String connetions per MPPT input: 2
- Rated MPP-voltage: 600-980 V
