Ferroamp
EnergyHub XL Rack
ENERGYHUB XL 42U CABINET PH01227
Article number: Suppl. article no:
5289421
PH01227
to see price and stock

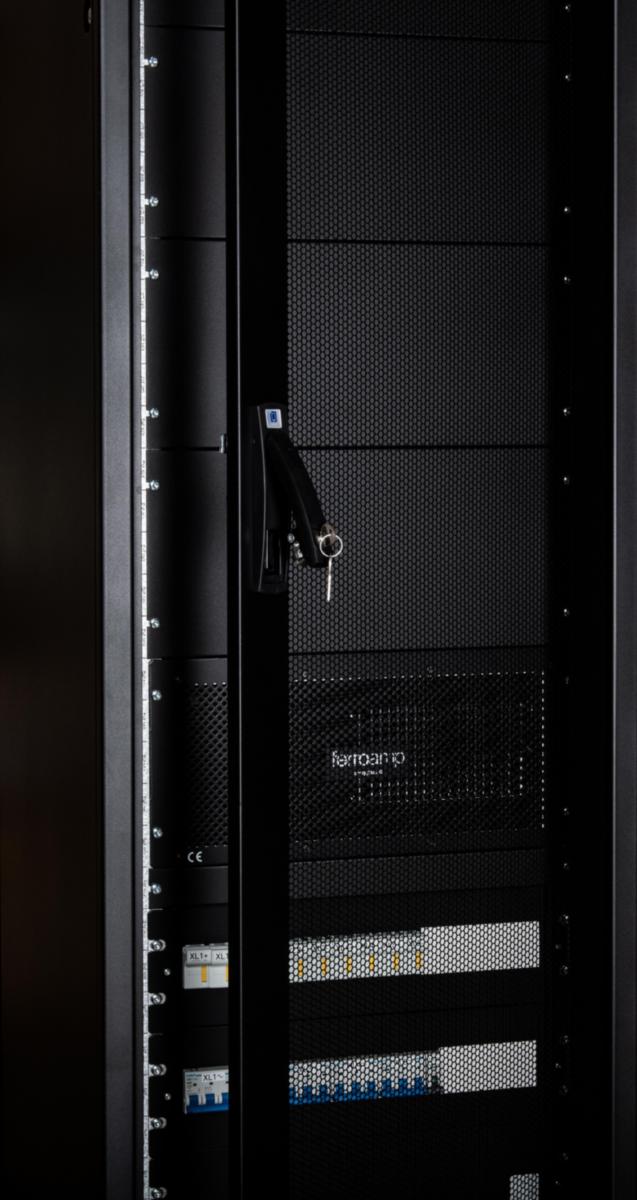

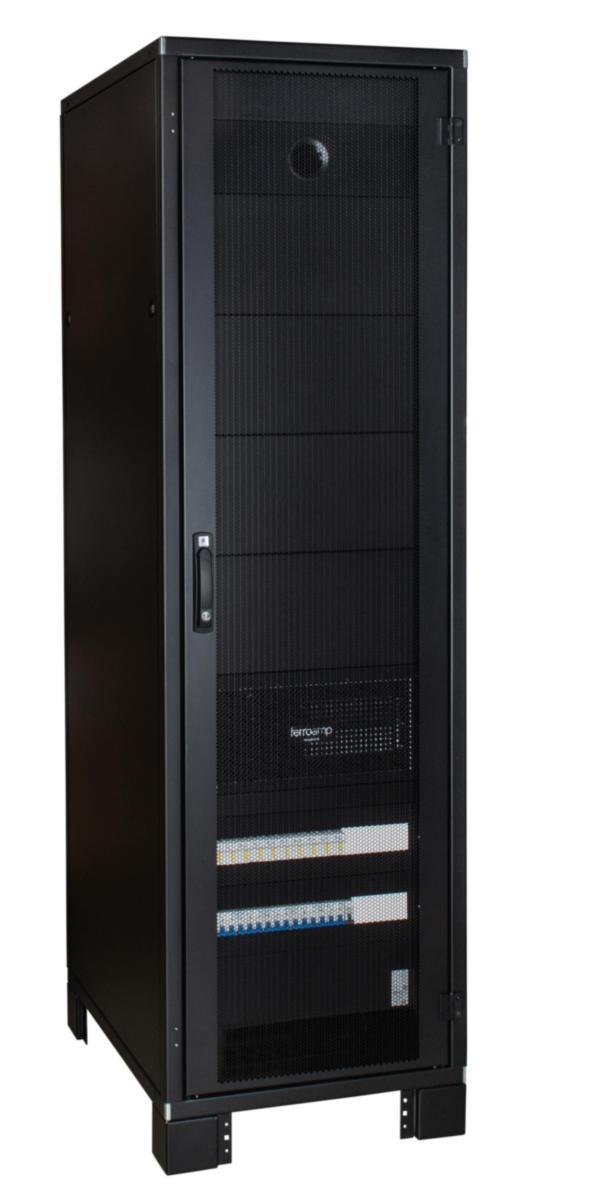

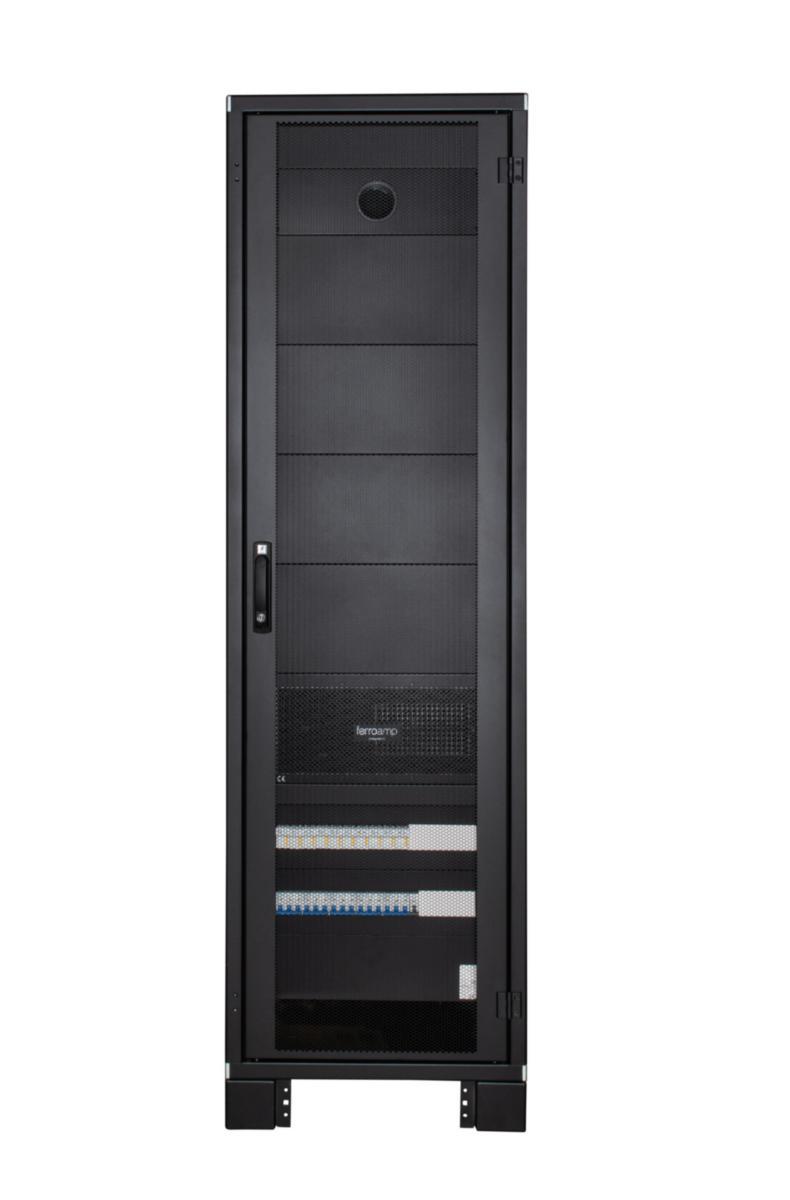

The Swedish EnergyHub inverter from Ferroamp in a 42U rack cabinet that includes an EnergyHub XL 28 kW module in the package. It has space for a total of 5 EnergyHub XL modules, and it is possible to mix XL21 (5289205) and XL28 (5289208) modules in the cabinet. Maximum capacity up to a total of 140 kW installed power.
20A phase balancing per installed EnergyHub, max 100A can be moved between phases with five EnergyHubs in the cabinet.
A 300A current transformer kit is included in the package.
An advanced inverter from Swedish Ferroamp that evens out the load between phases, manages solar panels via SSO, controls batteries via ESO, and enables efficient electric car charging.
Connect buildings with their own EnergyHub and cut costs with PowerShare. By sharing energy between several buildings, the load on each individual connection is reduced and money can be saved on lower fuse fees and lower power costs.
If any of the buildings have solar panels, a larger proportion of the self-generated electricity can also be used locally, which provides greater earnings.
Share energy and cut electricity bills and grid fees.
20A phase balancing per installed EnergyHub, max 100A can be moved between phases with five EnergyHubs in the cabinet.
A 300A current transformer kit is included in the package.
An advanced inverter from Swedish Ferroamp that evens out the load between phases, manages solar panels via SSO, controls batteries via ESO, and enables efficient electric car charging.
Connect buildings with their own EnergyHub and cut costs with PowerShare. By sharing energy between several buildings, the load on each individual connection is reduced and money can be saved on lower fuse fees and lower power costs.
If any of the buildings have solar panels, a larger proportion of the self-generated electricity can also be used locally, which provides greater earnings.
Share energy and cut electricity bills and grid fees.
- Article number: 5289421
- Suppl. article no: PH01227
- Material class QQ3990
Technical data
- Type: PH01227
- Design: 5 modules
- Width: 600 mm
- Depth: 800 mm
- Height: 2065 mm
- Rated MPP-voltage: 0-720 V
- Max. input voltage DC: 800 V
- Max. input power DC: 140000 W
- Max. input current DC per MPP tracker: 14 A
- Nominal output power AC: 0-140000 W
- Max. input current DC per string input: 14 A
- Max. input current DC: 200 A
- Number of independent MPPT inputs: 64
- With data logging: Yes
- Degree of protection (IP): IP20
- Output phases: 3-phase
- Display: Standard
- Ethernet: Yes
- Built-in battery: No
- Suitable for emergency power: No
- Weight: 173 kg
- AC connection: Connector (male)
- String connetions per MPPT input: 64
- DC connection: Connector (male)
- Max. efficiency: 98.5 %
- Wireless: No
- Voltage type (supply voltage): AC
- Power consumption: 10 W
- Max. short circuit current per MPPT: 20 A
- Suitable for outdoor installation: No
- REACH Date: 2025-01-05
- REACH Information obligation: No
