Ferroamp

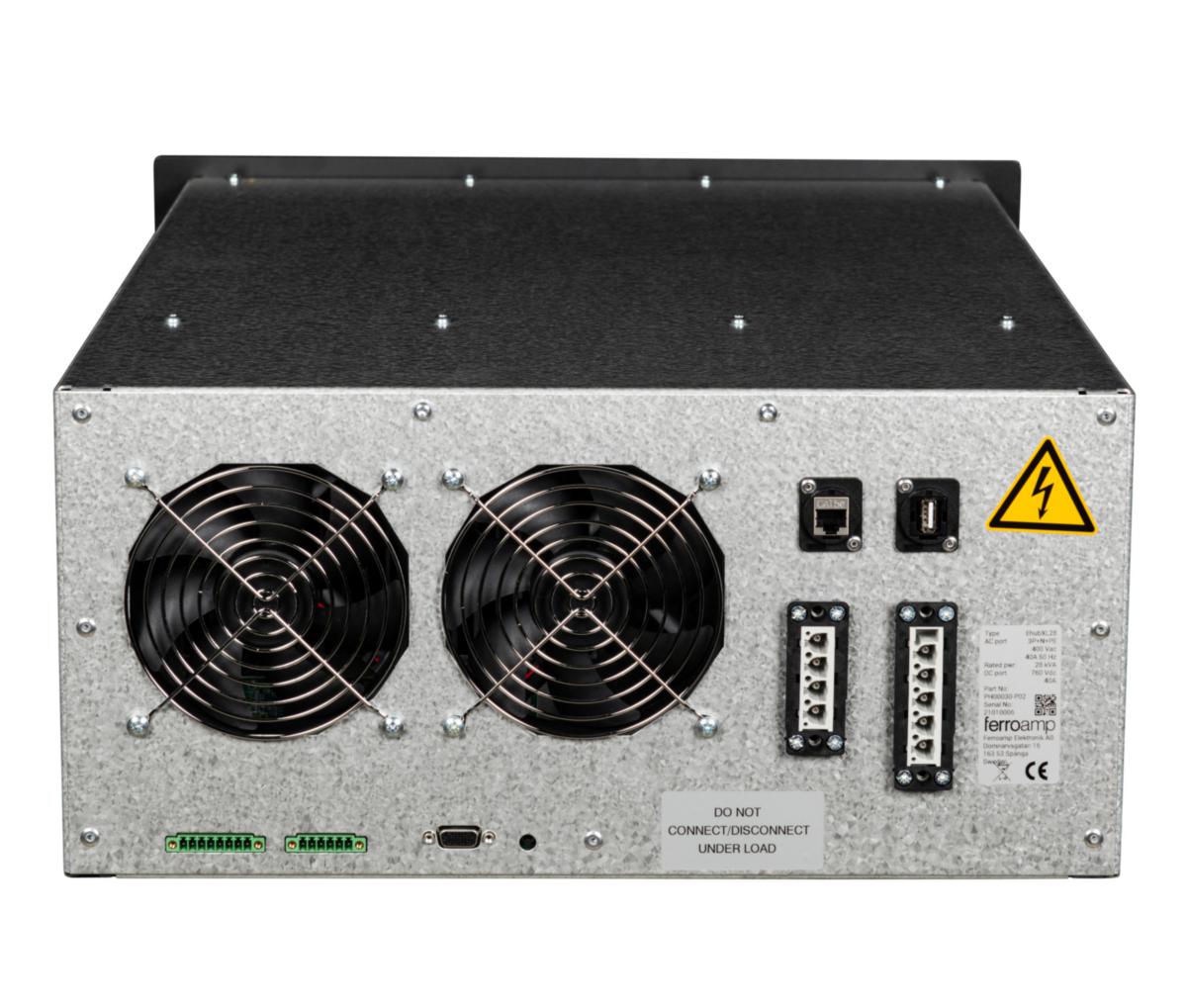

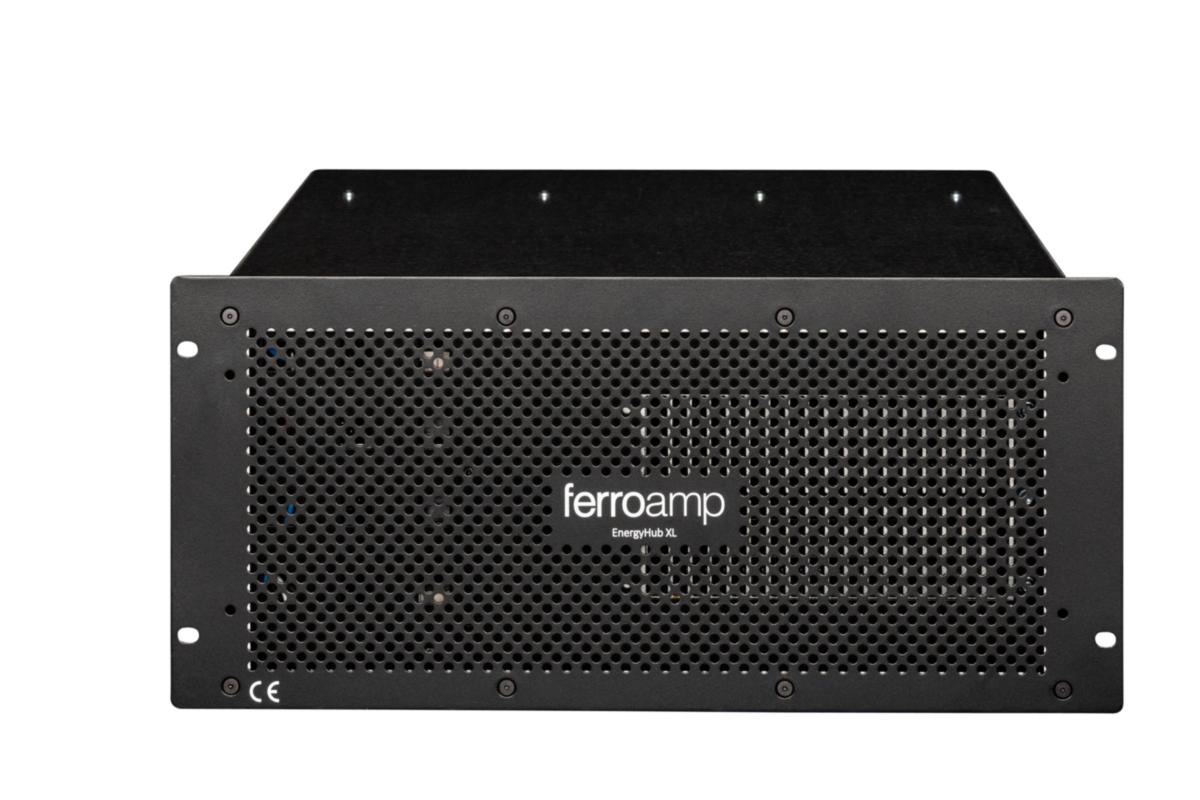

EnergyHub XL 21-28kW
ENERGYHUB XL 28 KW MODULE PH00030
Article number: Suppl. article no:
5289208
PH00030
to see price and stock
The Swedish EnergyHub inverter from Ferroamp for expansion in rack cabinets (5289514, 5289420, 5289421). XL21 (5289205) and XL28 (5289208) modules can be mixed in the same cabinet.
20A phase balancing per installed EnergyHub.
An advanced inverter from Swedish Ferroamp that evens out the load between phases, manages solar panels via SSO, controls batteries via ESO, and enables efficient electric car charging.
20A phase balancing per installed EnergyHub.
An advanced inverter from Swedish Ferroamp that evens out the load between phases, manages solar panels via SSO, controls batteries via ESO, and enables efficient electric car charging.
- Article number: 5289208
- Suppl. article no: PH00030
- Material class QQ3590
Technical data
- Packagin Size: 1 ST/4 ST
- Type: PH00030
- Design: 28 kW
- Width: 520 mm
- Depth: 650 mm
- Height: 220 mm
- Rated MPP-voltage: 0-720 V
- Max. input voltage DC: 800 V
- Max. input power DC: 28000 W
- Max. input current DC per MPP tracker: 14 A
- Nominal output power AC: 0-28000 W
- Max. input current DC per string input: 14 A
- Max. input current DC: 40 A
- Number of independent MPPT inputs: 64
- With data logging: Yes
- Degree of protection (IP): IP20
- Output phases: 3-phase
- Display: Standard
- Ethernet: Yes
- Built-in battery: No
- Suitable for emergency power: No
- Weight: 43 kg
- AC connection: Connector (male)
- String connetions per MPPT input: 64
- DC connection: Connector (male)
- Max. efficiency: 98.5 %
- Wireless: No
- Voltage type (supply voltage): AC
- Power consumption: 10 W
- Max. short circuit current per MPPT: 20 A
- Suitable for outdoor installation: No
- REACH Date: 2025-01-05
- REACH Information obligation: No
