EnergyHub XL 21-28kW

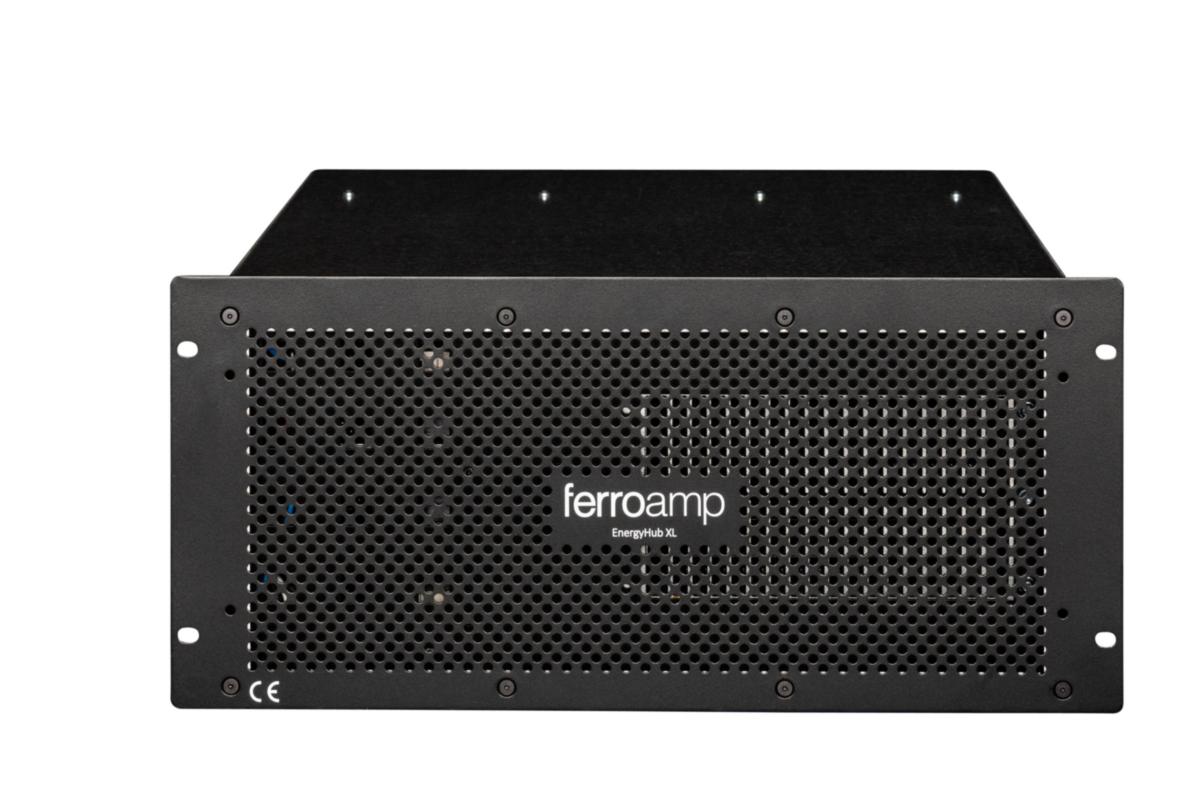

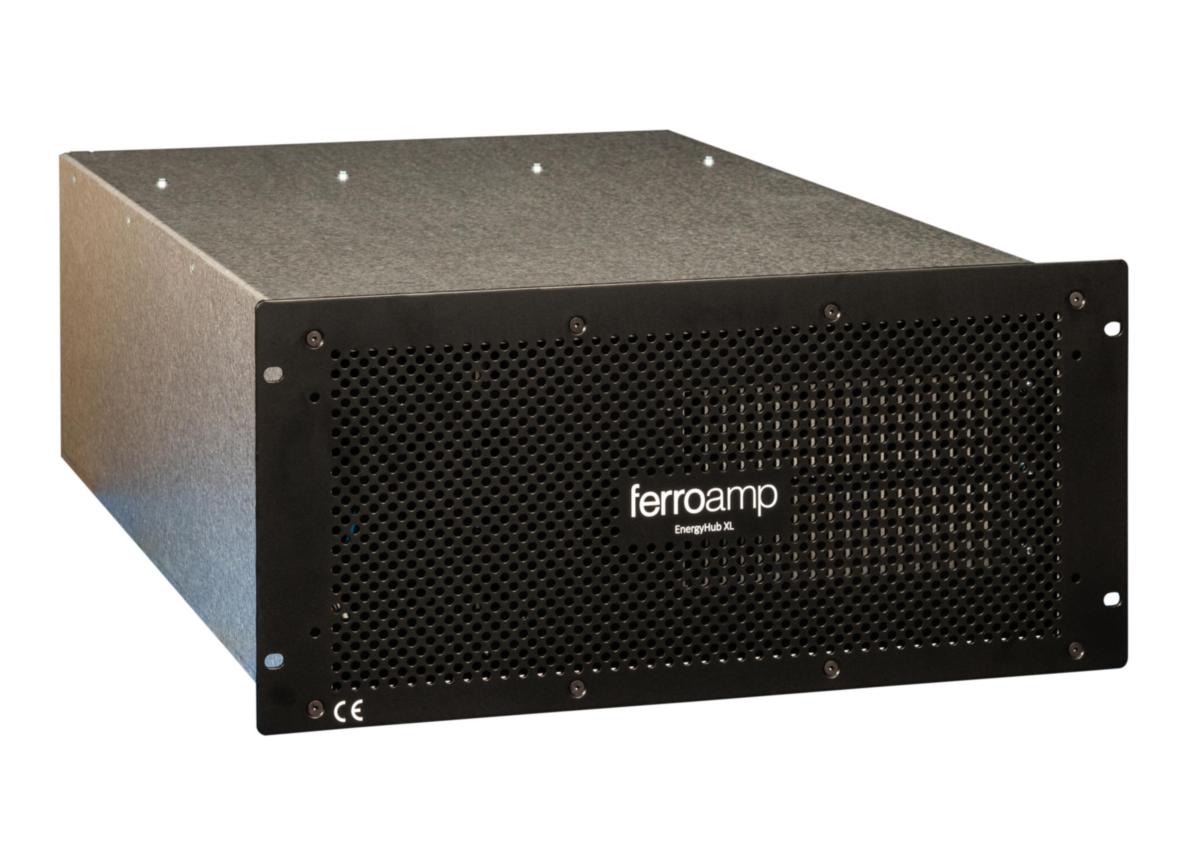

ENERGYHUB XL 21 KW MODULE PH00798
Article number: Suppl. article no:
5289205
PH00798
to see price and stock
The Swedish EnergyHub inverter from Ferroamp for expansion in rack cabinets (5289514, 5289420, 5289421). XL21 (5289205) and XL28 (5289208) modules can be mixed in the same cabinet.
20A phase balancing per installed EnergyHub.
An advanced inverter from Swedish Ferroamp that evens out the load between phases, manages solar panels via SSO, controls batteries via ESO, and enables efficient electric car charging.
Connect buildings with their own EnergyHub and cut costs with PowerShare. By sharing energy between several buildings, the load on each individual connection is reduced and money can be saved on lower fuse fees and lower power costs.
If any of the buildings have solar panels, a larger proportion of the self-generated electricity can also be used locally, which provides greater earnings.
Share energy and cut electricity bills and grid fees.
20A phase balancing per installed EnergyHub.
An advanced inverter from Swedish Ferroamp that evens out the load between phases, manages solar panels via SSO, controls batteries via ESO, and enables efficient electric car charging.
Connect buildings with their own EnergyHub and cut costs with PowerShare. By sharing energy between several buildings, the load on each individual connection is reduced and money can be saved on lower fuse fees and lower power costs.
If any of the buildings have solar panels, a larger proportion of the self-generated electricity can also be used locally, which provides greater earnings.
Share energy and cut electricity bills and grid fees.
- Article number: 5289205
- Suppl. article no: PH00798
- Material class QQ3590
Technical data
- Packagin Size: 1 ST/4 ST
- Type: PH00798
- Design: 21 kW
- Width: 520 mm
- Depth: 650 mm
- Height: 220 mm
- Rated MPP-voltage: 0-720 V
- Max. input voltage DC: 800 V
- Max. input power DC: 21000 W
- Max. input current DC per MPP tracker: 14 A
- Nominal output power AC: 0-21000 W
- Max. input current DC per string input: 14 A
- Max. input current DC: 30 A
- Number of independent MPPT inputs: 64
- With data logging: Yes
- Degree of protection (IP): IP20
- Output phases: 3-phase
- Display: Standard
- Ethernet: Yes
- Built-in battery: No
- Suitable for emergency power: No
- Weight: 43 kg
- AC connection: Connector (male)
- String connetions per MPPT input: 64
- DC connection: Connector (male)
- Max. efficiency: 98.5 %
- Wireless: No
- Voltage type (supply voltage): AC
- Power consumption: 10 W
- Max. short circuit current per MPPT: 20 A
- Suitable for outdoor installation: No
- REACH Date: 2025-01-05
- REACH Information obligation: No
