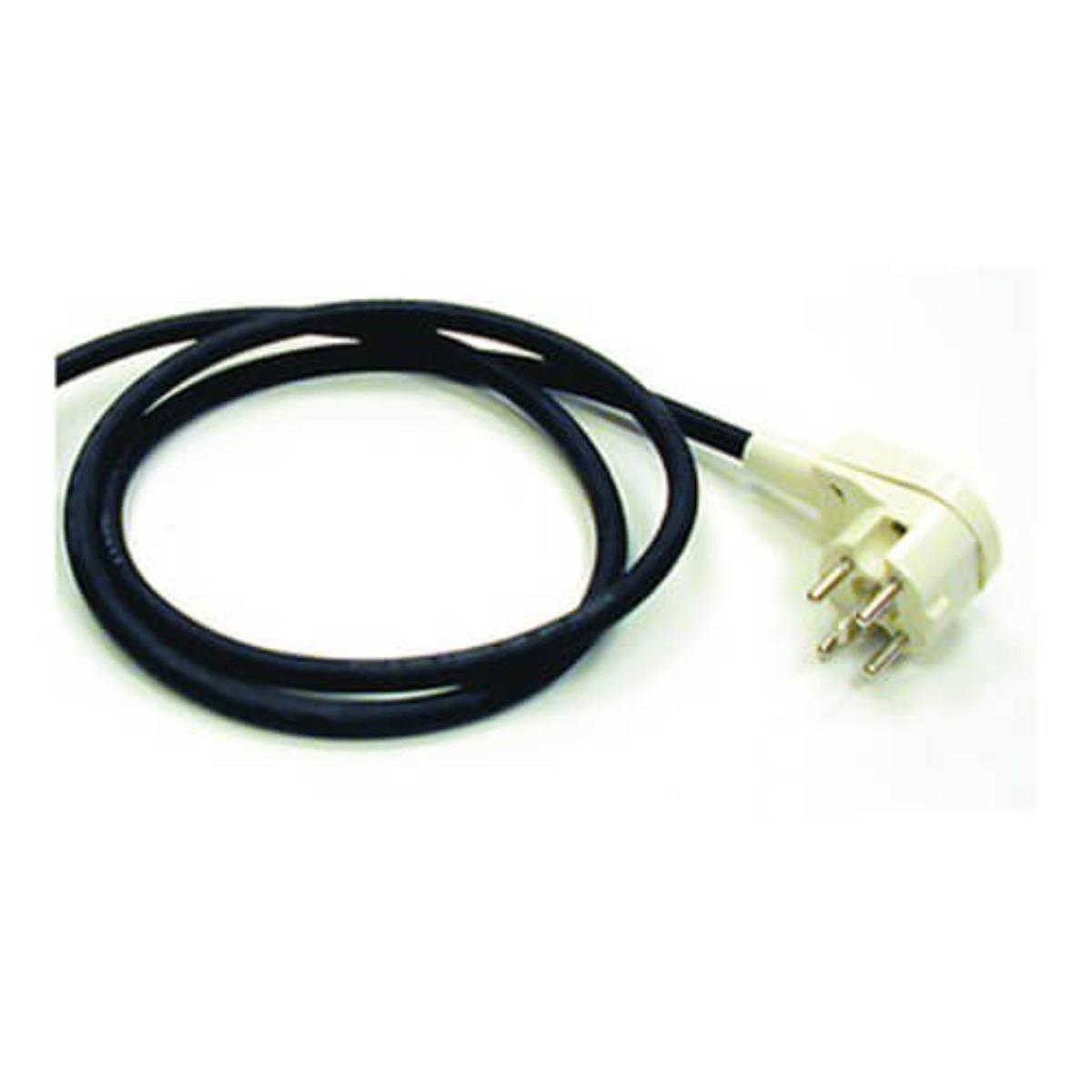

Cord set with Perilex plug
EXTENSION CORD 0
Article number:
2408025
to see price and stock
Perilex, a standard system for installing stoves, ovens, and cooktops. 5-pole, 3-phase, neutral, and ground. Made of heat-resistant plastic. Pre-assembled with stripped ends and sleeved cables. Safety-tested.
- Article number: 2408025
- Ean no: 7331430038046
- Material class QJ1100
Technical data
- Length: 1.4 m
- Connection 1: Perilex
- Connection 2: Free conductor end
- Number of cores: 5
- Nominal cross section conductor: 1.5 mm²
- Spiralized cable: No
- Nominal current: 16 A
- Colour outer sheath: Black
- With protective conductor: Yes
- Outer diameter approximate: 10 mm
- Nominal voltage: 400 V
- Material outer sheath: Rubber
- Degree of protection (IP): IP21
- Temperature resistance: -10-30 °C
- Frequency: 50 Hz
- With cord switch: No
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: None
- Reaction-to-fire according to EN 13501-6: Smoke production: None
- Reaction-to-fire according to EN 13501-6: Class: None
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Acidity: None
- System-oriented connector system: No
- Cable entry connection 1: Angled
- Connection type according to IEC 60320, connection 1: Other
- REACH Date: 2026-05-25
- Cable type: H05RR-F
- Colour: Black
- Information: Wire area: 5G1.5 mm²
- REACH Information obligation: No
