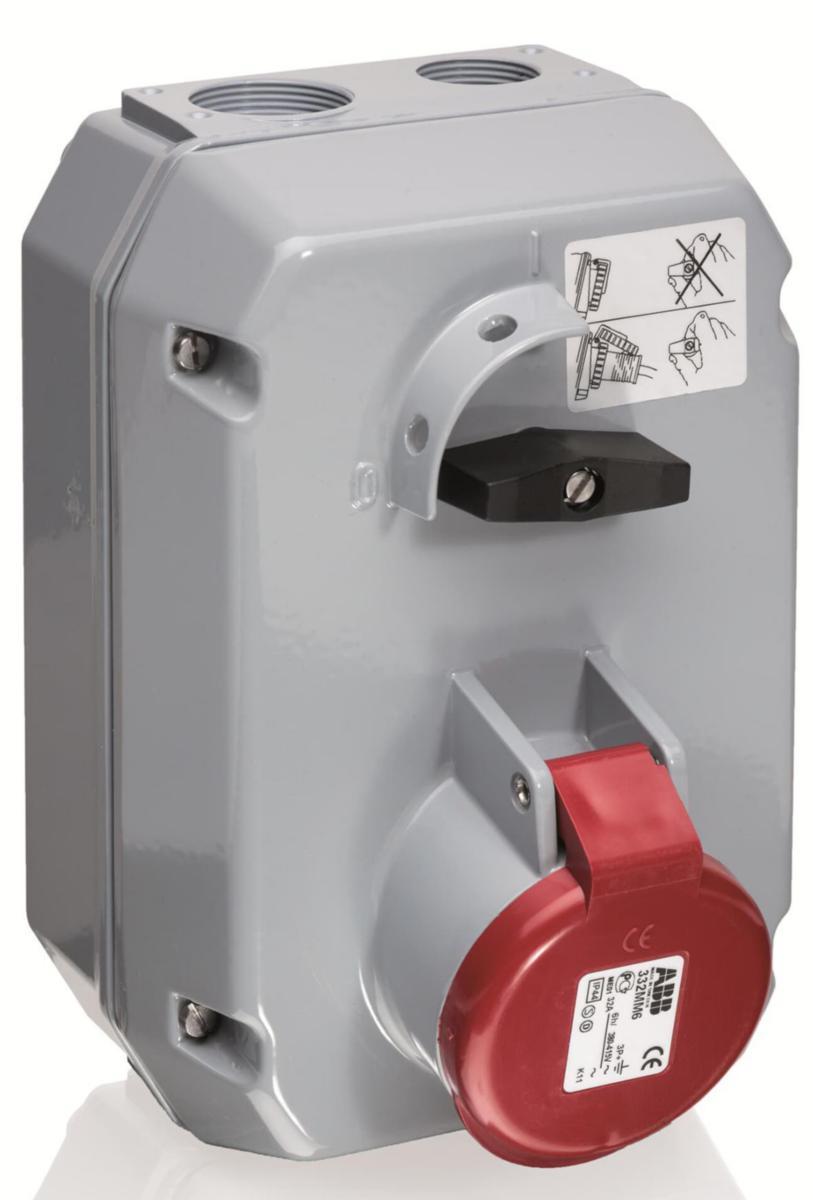

Blocked wall socket, IP 44, 16-125 A, ABB
BLOCKED WALL SOCKET 32A IP44 432MM6
Article number: Suppl. article no:
2417077
2CMA168002R1000
to see price and stock
AC frequency 50-60Hz. Mechanical sealing with 3-pole switch. Meets the demands of ELSÄK-FS 1994:7 part 2, blocked socket. Screw fittings are ordered separately (see list 14).
Splash-proof design, housing of light alloy. Contact part of polycarbonate with a flange opening at the top and at the bottom. Type MM with auxiliary contacts offered on demand.
Horizontal socket. Lockable dial with padlock.
Splash-proof design, housing of light alloy. Contact part of polycarbonate with a flange opening at the top and at the bottom. Type MM with auxiliary contacts offered on demand.
Horizontal socket. Lockable dial with padlock.
- Article number: 2417077
- Suppl. article no: 2CMA168002R1000
- Ean no: 7392696680028
- Material class QJ310B
Technical data
- Type: 432MM6
- IEC-amperage: 32 A
- Identification colour: Red
- Number of poles: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Clock hour position: 6 h
- Degree of protection (IP): IP44
- Connection system: Screwed terminal
- Cable entry: Other
- Material: Aluminium
- Military model: No
- Model: Surface mounted
- RAL-number: 7001
- Type of fastening: Inner lying mounting
- Insulated mounting: Yes
- Alternating current: 50-60 Hz
- Inserting hole lower: 1xM25 1xM32
- Inserting hole upper: 1xM25 1xM32
