Blocked sockets 16A, IP44, GARO - INTERLOCKED SOCKET 5P 16A 6H UB 416-6 S
Garo

Blocked sockets 16A, IP44, GARO

INTERLOCKED SOCKET 5P 16A 6H UB 416-6 S
Article number:
2425757
Suppl. article no:
2425757
‌
‌
‌
‌
‌
 to see price and stock

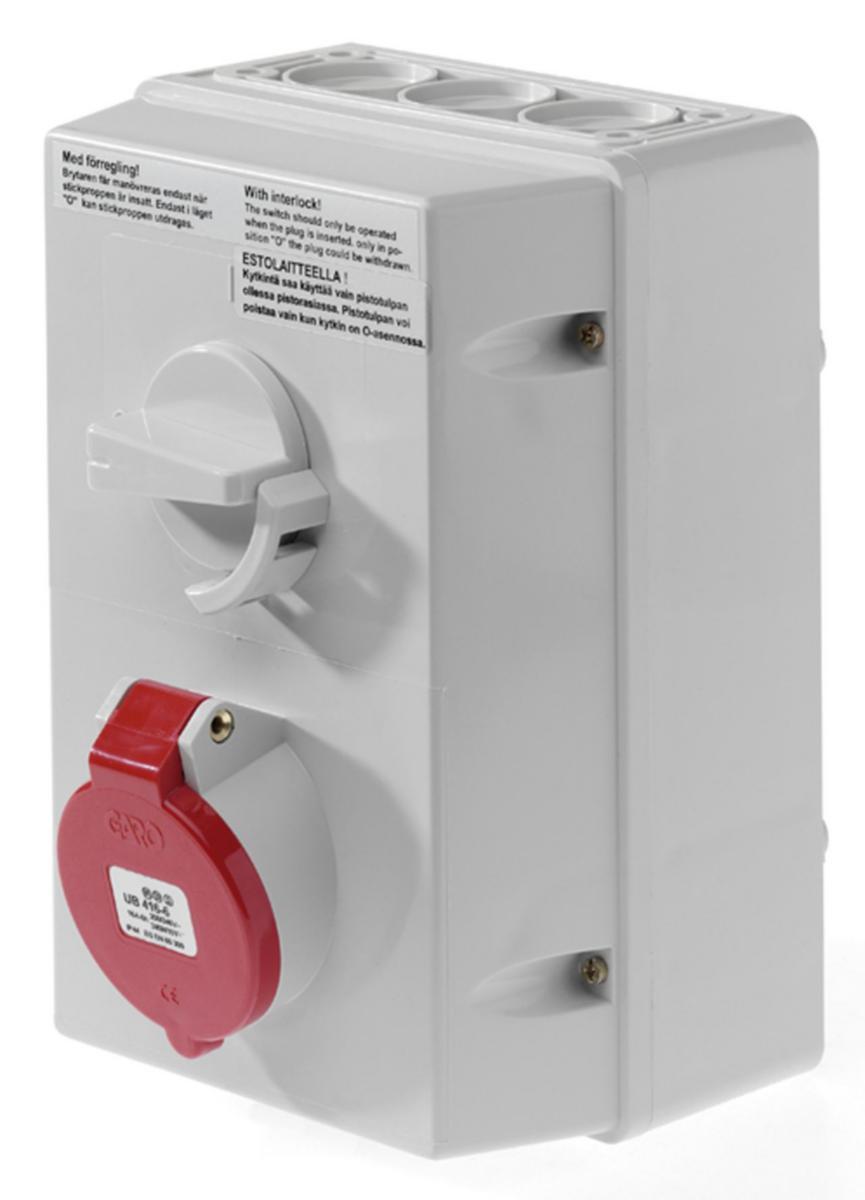

Blocked outlet for wall mounting, with an on/off lockable IEC/CEE socket on the front, plenty of coupling space FL13 in top and bottom combined with knockouts. Supplied with nipples suitable for the box ordered. Cable entry options from both the upper and underside.
  • Article number:
    2425757
  • Suppl. article no:
    2425757
  • Ean no:
    7331185007762
  • Material class
    QJ3400
  • This is an alternative to item
    03.1953223
Technical data
  • Packagin Size: 1 ST/2 ST
  • Type: UB 416-6
  • Number of poles: 5
  • IEC-amperage: 16 A
  • Voltage according to EN 60309-2: 400 V (50+60 Hz) red
  • Clock hour position: 6 h
  • Identification colour: Red
  • Protection: Other
  • Housing material: Plastic
  • With earth leakage switch: No
  • Switch: Mechanical locking
  • Empty locations on mounting rail: No
  • Model: Base unit and cover
  • Degree of protection (IP): IP44
  • Type of switch: Special switch
  • Military model: No
  • REACH Date: 2021-06-15
  • Amperage according to UL/CSA (for UL-version): 0 A
  • REACH Information obligation: No
