Garo

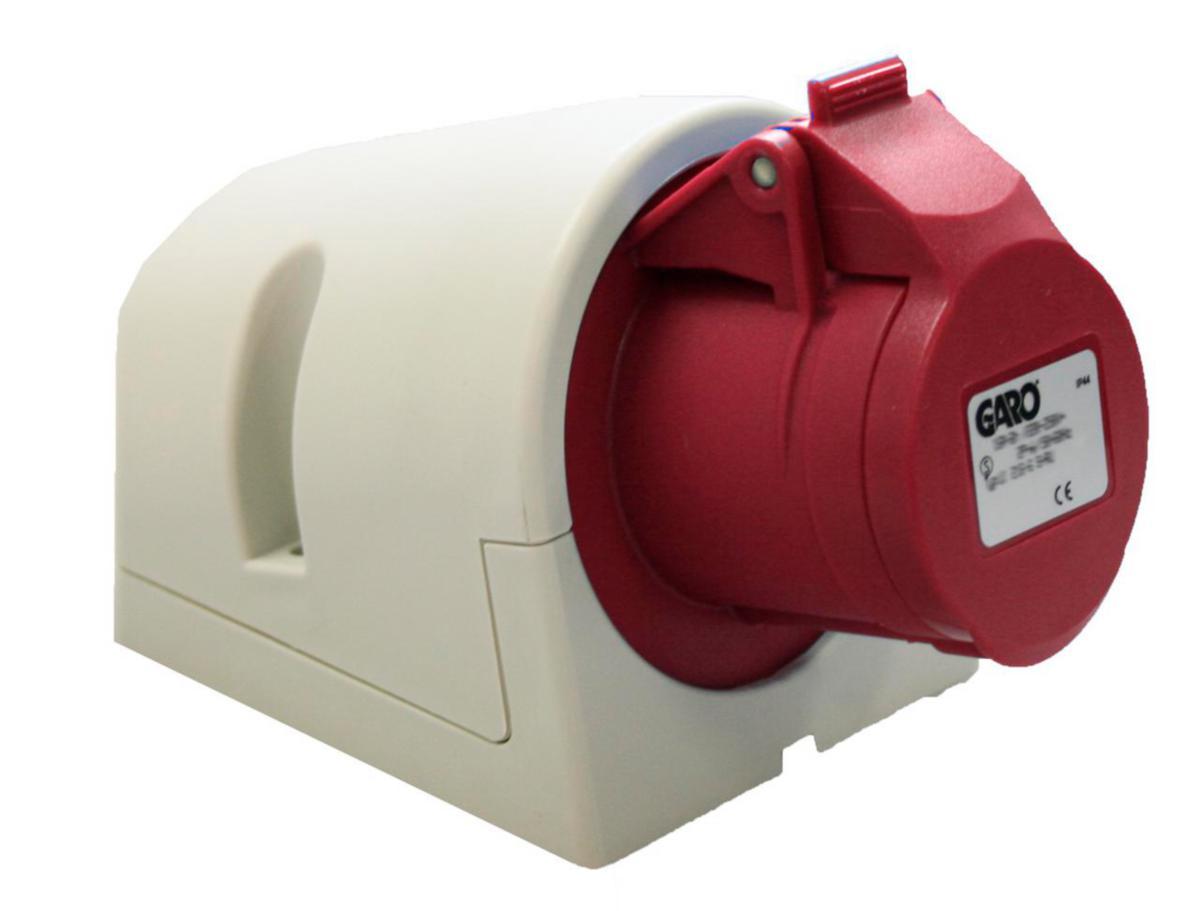

Wall socket Quick type UI+RU 16A, without screw
WALL SOCKET TT 5P 16A 6H UI 416-6 Q + RU
Article number: Suppl. article no:
2425500E
2425500
to see price and stock
Screwless wall-plug for 16 A with quick-release connection. Connectable wire area 1-2.5 mm² Solid cable 1-4 mm².
- Article number: 2425500E
- Suppl. article no: 2425500
- Ean no: 7331185084312
- Material class QJ3400
Technical data
- Packagin Size: 1 ST/10 ST
- Type: UI 416-6 Q+RU
- IEC-amperage: 16 A
- Identification colour: Red
- Number of poles: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Clock hour position: 6 h
- Amperage according to UL/CSA (for UL-version): 20 A
- Degree of protection (IP): IP44
- Connection system: Screwless terminal
- Cable entry: Other
- Material: Plastic
- Military model: No
- Model: Surface mounted
- RAL-number: 3000
- Type of fastening: Inner lying mounting
- Insulated mounting: Yes
- REACH Date: 2021-06-15
- REACH Information obligation: No
