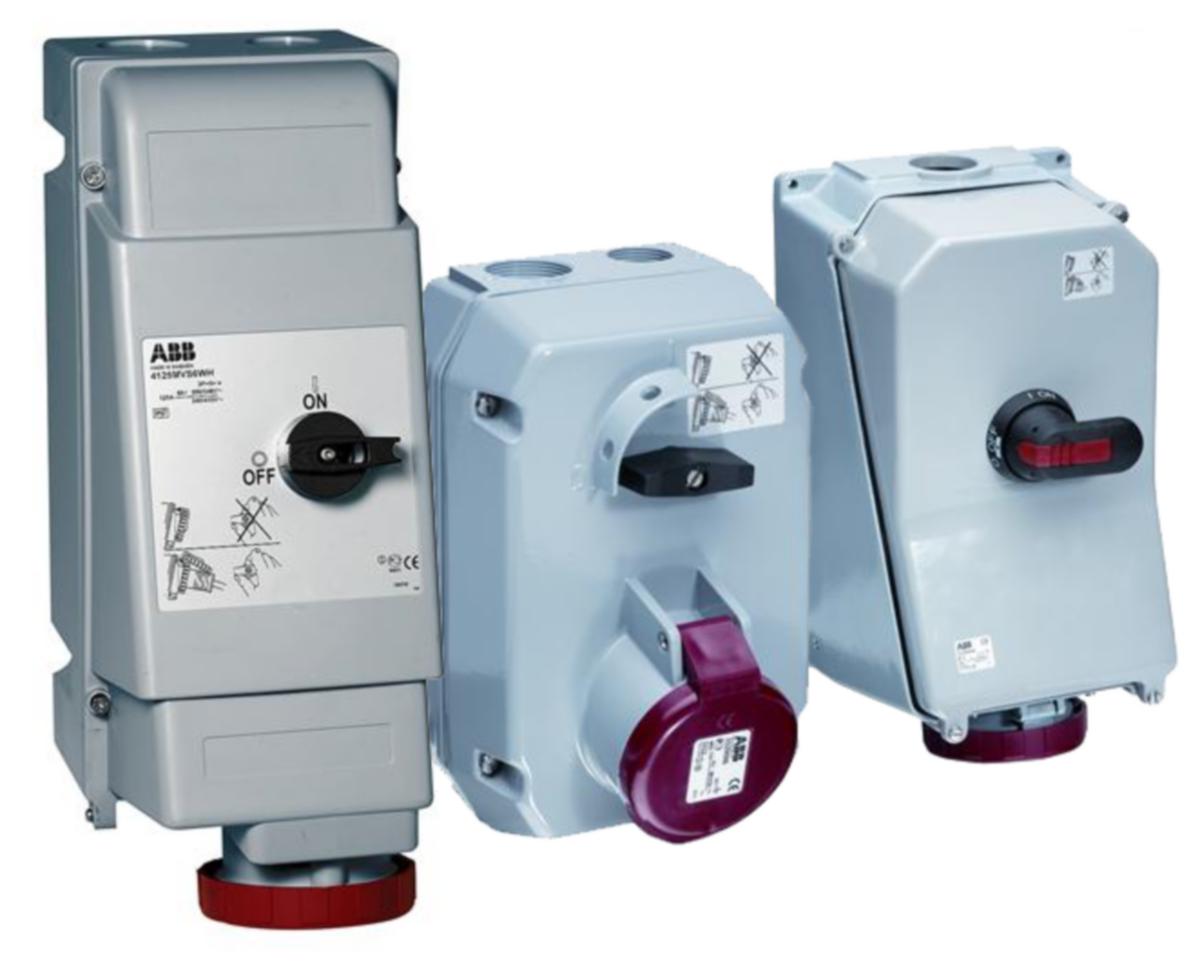

Blocked wall socket IP44
BLOCKED WALL SOCK IP44 332MM7 VER
Article number: Suppl. article no:
2417072
2CMA167994R1000
to see price and stock
Coated with either thermoplastic polyester (PBT) or metal.
- Article number: 2417072
- Suppl. article no: 2CMA167994R1000
- Ean no: 7392696679947
- Material class QJ310B
Technical data
- Type: 332MM7
- IEC-amperage: 32 A
- Identification colour: Black
- Number of poles: 4
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Clock hour position: 7 h
- Degree of protection (IP): IP44
- Connection system: Screwed terminal
- Cable entry: Other
- Material: Aluminium
- Military model: No
- Model: Surface mounted
- RAL-number: 7001
- Type of fastening: Inner lying mounting
- Insulated mounting: Yes
