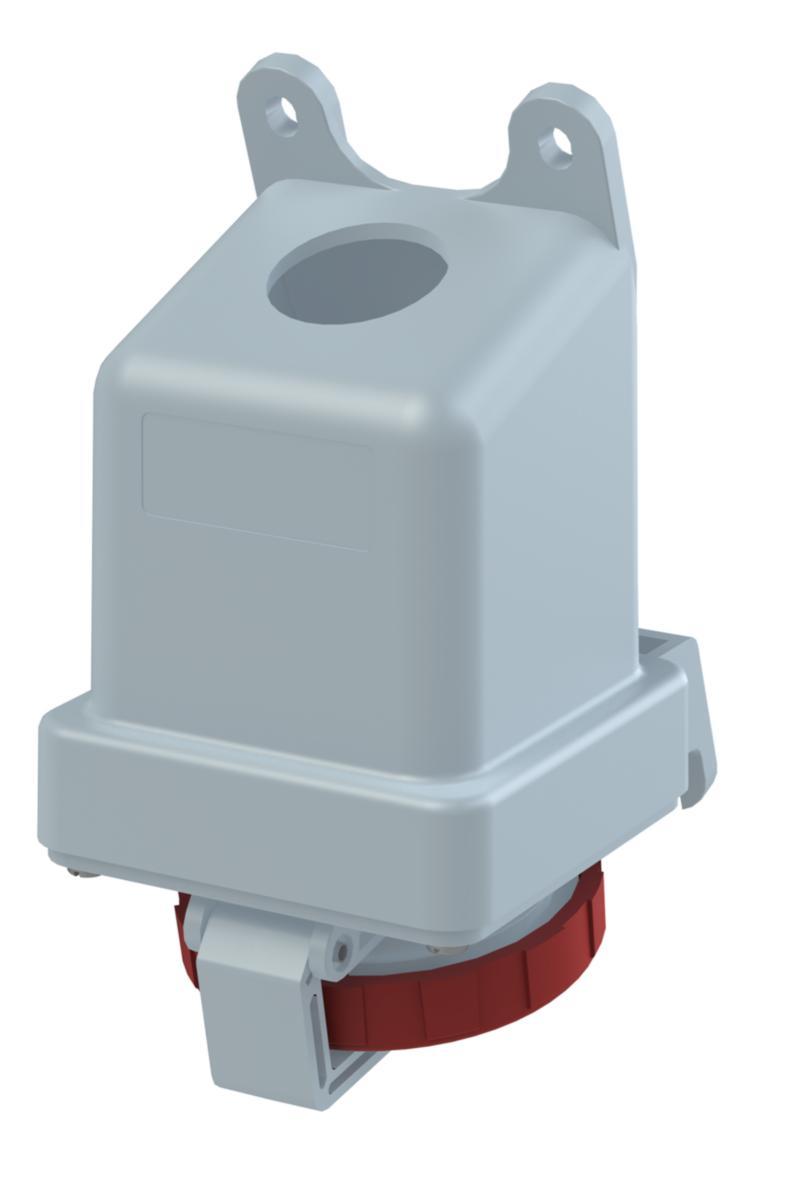

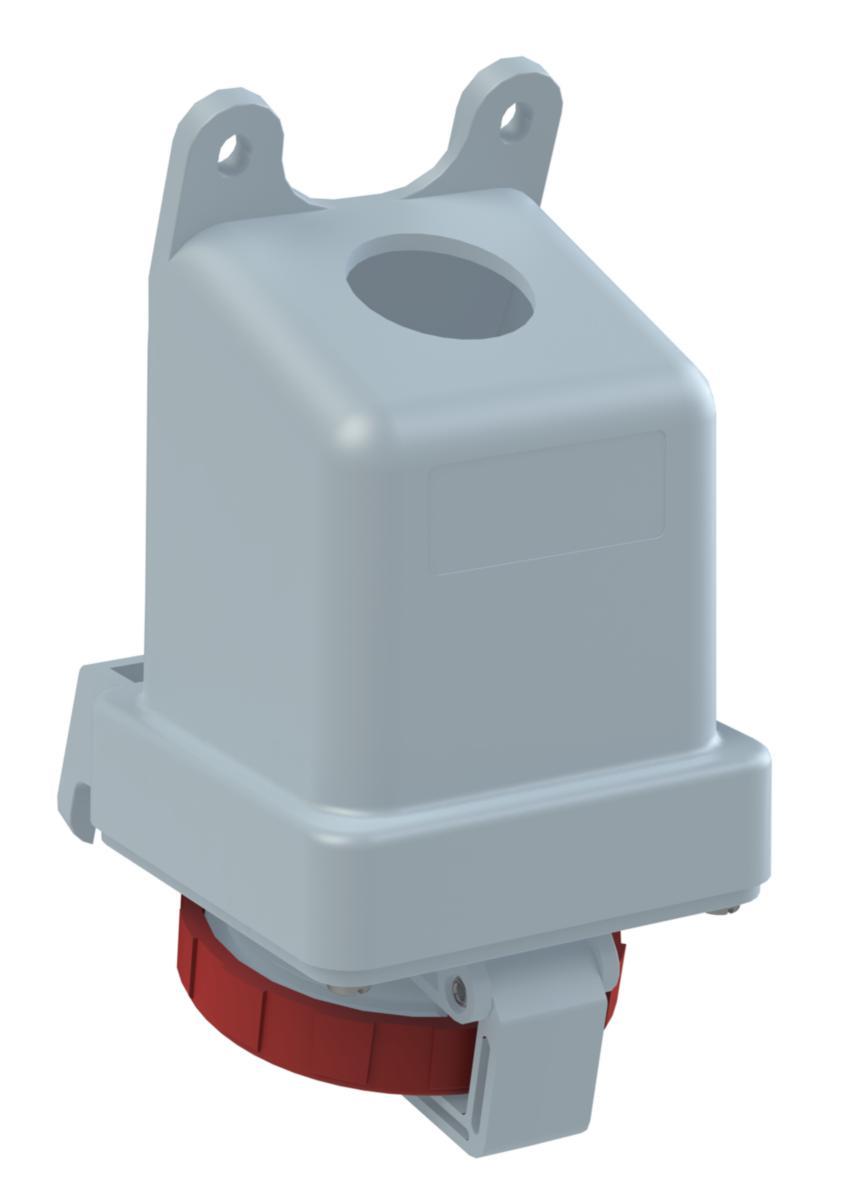

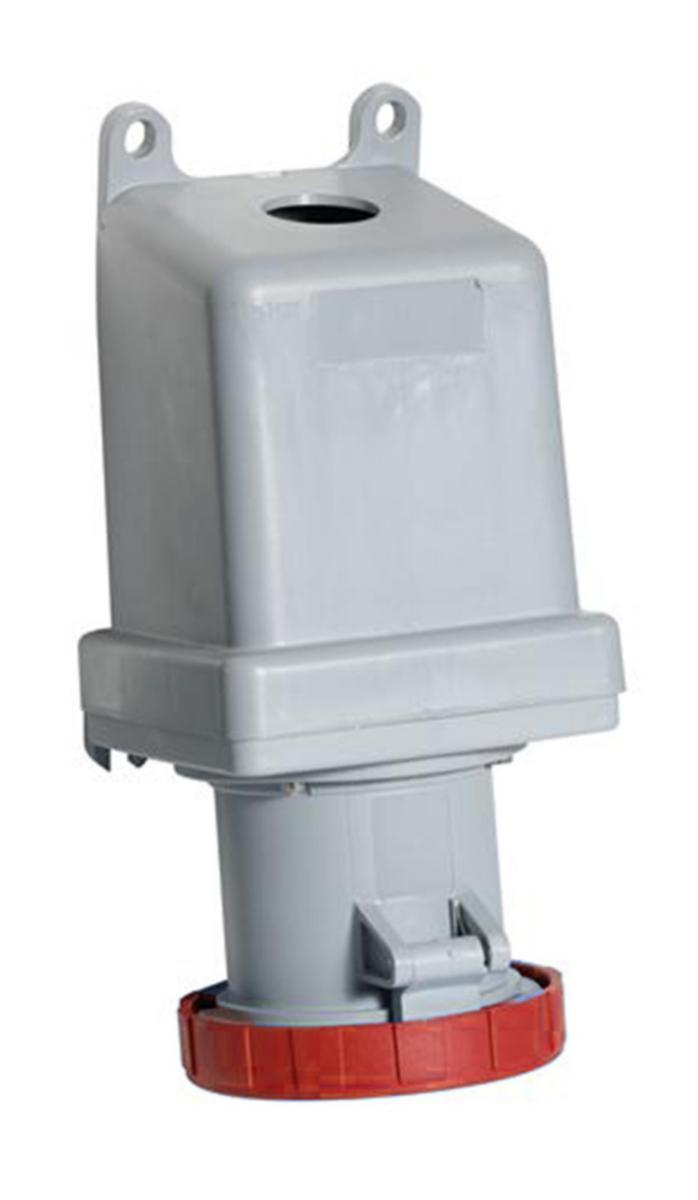

Wall socket 16-125 A, IP67
416RS6W 0
Article number: Suppl. article no:
2416541
2CMA167166R1000
to see price and stock
Surface mounting. PBT enclosure with entry hole at the top. Screw connections must be ordered separately (see list 14). All products comply with IEC 60309-1,-2.
- Article number: 2416541
- Suppl. article no: 2CMA167166R1000
- Ean no: 7392696671668
- Material class QJ3100
Technical data
- Type: 416RS6W
- IEC-amperage: 16 A
- Identification colour: Red
- Number of poles: 5
- Voltage according to EN 60309-2: 400-440 V (50+60 Hz) red
- Clock hour position: 6 h
- Degree of protection (IP): IP67
- Connection system: Screwed terminal
- Cable entry: Other
- Material: Plastic
- Military model: No
- Model: Surface mounted
- RAL-number: 7012
- Type of fastening: External mounting
- Insulated mounting: Yes
- Surface coating contacts: Untreated
- REACH Date: 2023-07-01
- REACH Information obligation: No
