Amphenol

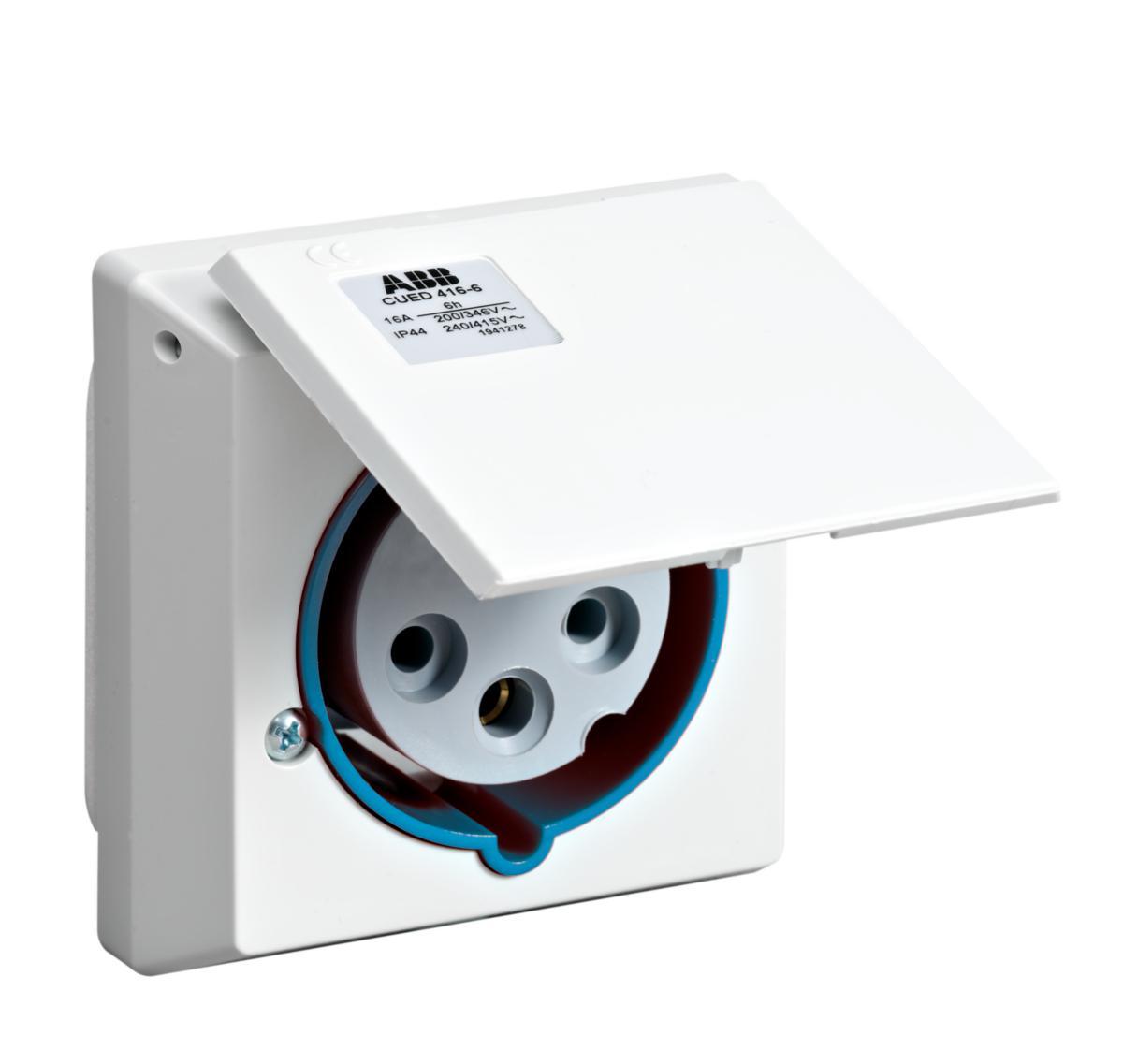

Wall socket CUED, for wall box
CUED 216-6 COLOR CODE: BLUE
Article number: Suppl. article no:
2416012
2CMA178698R1000
to see price and stock
Wall outlet for recessed mounting, 6 o'clock for earth pin, rated current 16A, IP44, frequency 50-60 Hz. Casing: thermoplastic. Connectable area 1.5-4 sq.mm.
- Article number: 2416012
- Suppl. article no: 2CMA178698R1000
- Ean no: 7392696786980
- Material class QJ3100
Technical data
- Packagin Size: 1 ST/10 ST
- Design: 2-pole + ground
- Colour: White
- Nominal current: 16 A
- Nominal voltage: 230 V
- Clock hour position: 6 h
- RAL-number: 9001
- Number of poles: 3
- REACH Date: 2021-04-30
- IEC-amperage: 16 A
- Current supply: Other
- Configuration: Closed cover
- Type: CUED 216-6
- REACH Information obligation: No
- Identification colour: Blue
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Construction type: Wall mounted socket
