Garo

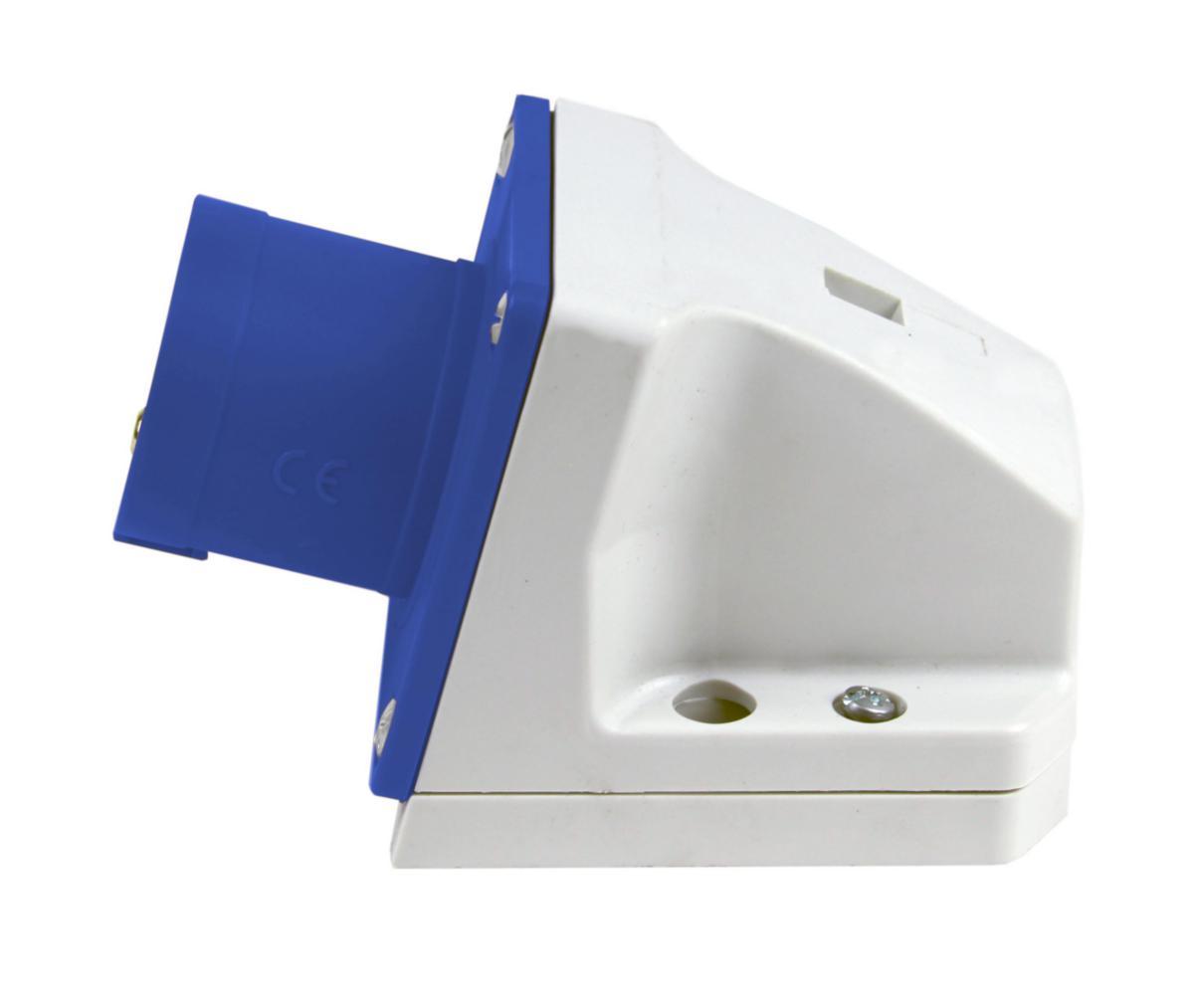

Wall inlet Basic type II+RI 16A
WALLMOUNTED INLET II+RI 16A II 216-6 SEC + RH
Article number: Suppl. article no:
2425143
2425143
to see price and stock
For wall mounting with cable connection options from the top and bottom (41 x 52 mm=).
Connectable wire area 1-2.5 mm² Solid cable 1-4 mm².
Connectable wire area 1-2.5 mm² Solid cable 1-4 mm².
- Article number: 2425143
- Suppl. article no: 2425143
- Ean no: 7331185089089
- Material class QJ3400
Technical data
- Packagin Size: 1 ST/10 ST
- Type: II 216-6 S+RI
- IEC-amperage: 16 A
- Identification colour: Blue
- Number of poles: 3
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Degree of protection (IP): IP44
- Clock hour position: 6 h
- Insert direction: Straight
- Connection system: Screwed terminal
- Phase inverter: No
- Material: Plastic
- Military model: No
- REACH Date: 2021-06-15
- Pole quantity: 3(2p+E)
- REACH Information obligation: No
