Garo

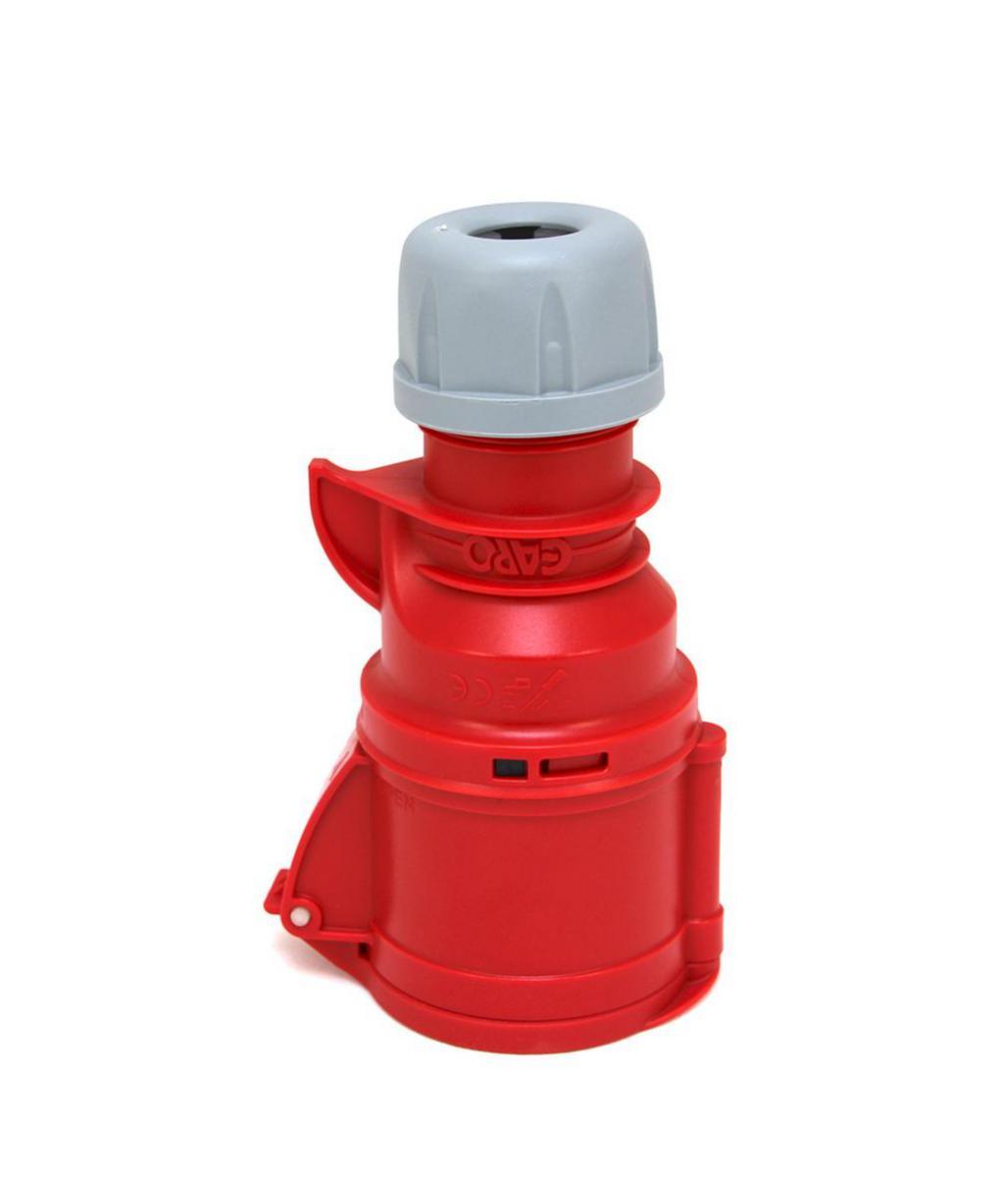

Coupler socket Quick type S 32A, without screw
CONNECTORS TT 5P 32A 6H S 432–6 Q
Article number: Suppl. article no:
2425476E
2425476
to see price and stock
Screwless splice socket for 32 A with quick-release connection. Connectable wire area 2.5-6 mm².
- Article number: 2425476E
- Suppl. article no: 2425476
- Ean no: 7331185083209
- Material class QJ3400
- This is an alternative to item 9812290
Technical data
- Packagin Size: 1 ST/10 ST
- Type: S 432-6 Q
- IEC-amperage: 32 A
- Amperage according to UL/CSA (for UL-version): 30 A
- Identification colour: Red
- Number of poles: 5
- Clock hour position: 6 h
- Degree of protection (IP): IP44
- Insert direction: Straight
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Connection system: Screwless terminal
- Military model: FALSE
- Material: Plastic
- Cable entry: Other
- RAL-number: 3000
- REACH Date: 2021-06-15
- REACH Information obligation: No
