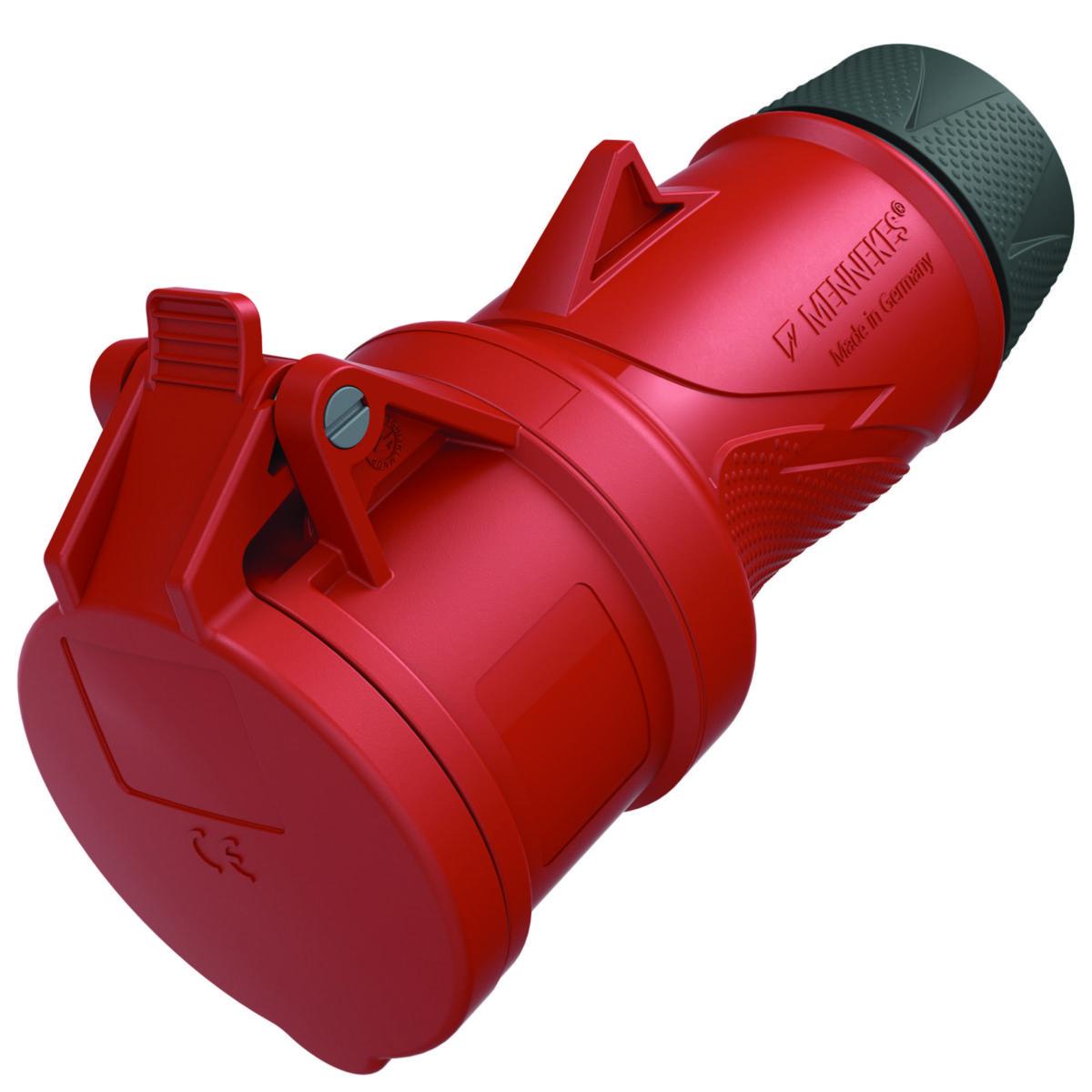

Coupler socket CEE, PowerTop Xtra, with screw connection
CONN. 32A5P6H400V IP44 14520
Article number: Suppl. article no:
2418037
14520
to see price and stock
Splice socket PowerTOP Xtra, 400V IP54. X-contact. Ergonomic Housing. Screw connection.
- Article number: 2418037
- Suppl. article no: 14520
- Ean no: 4015394289364
- Material class QJ3810
Technical data
- Packagin Size: 1 ST/10 ST
- IEC-amperage: 32 A
- Amperage according to UL/CSA (for UL-version): 30 A
- Identification colour: Red
- Number of poles: 5
- Clock hour position: 6 h
- Degree of protection (IP): IP44
- Insert direction: Straight
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Connection system: Screwed terminal
- Military model: No
- Material: Plastic
- Cable entry: Gland nut
- RAL-number: 3013
