Mennekes

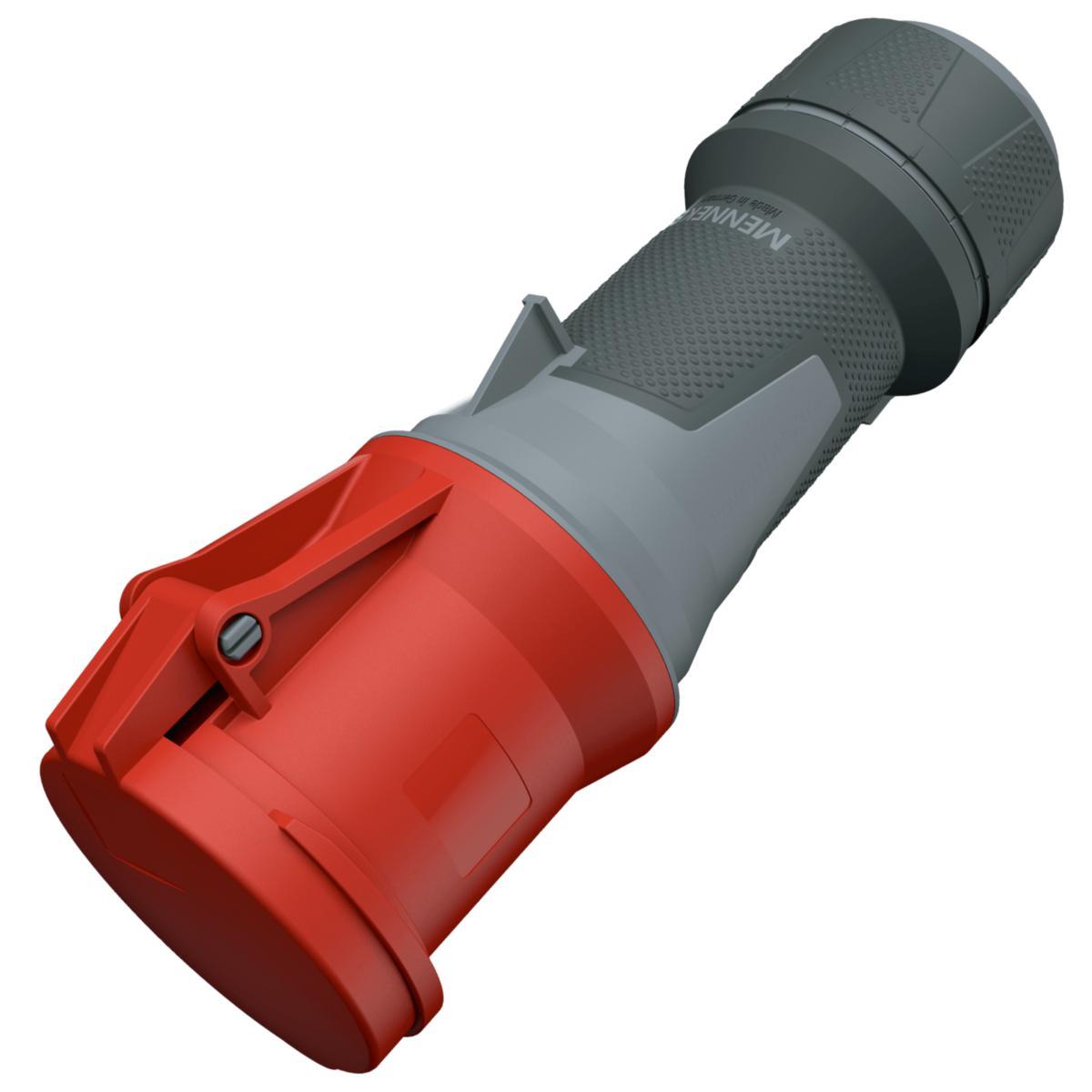

Cone socket CEE, PowerTop Xtra, with thread lock
CONN. 63A5P6H400V IP44 0
Article number: Suppl. article no:
2418033E
14112
to see price and stock
Split socket PowerTOP Xtra with X-CONTAC, rubberized grip area. Connection with integrated strain relief and seal. Housing with lock nut and thread lock.
- Article number: 2418033E
- Suppl. article no: 14112
- Material class QJ3810
Technical data
- Packagin Size: 1 ST/5 ST
- IEC-amperage: 63 A
- Amperage according to UL/CSA (for UL-version): 60 A
- Identification colour: Red
- Number of poles: 5
- Clock hour position: 6 h
- Degree of protection (IP): IP44
- Insert direction: Straight
- Voltage according to EN 60309-2: 380-415 V (50+60 Hz) red
- Connection system: Screwed terminal
- Military model: No
- Material: Plastic
- Cable entry: Gland nut
- RAL-number: 3013
- Contact material: CuSn
- Surface coating contacts: Untreated
