Amphenol

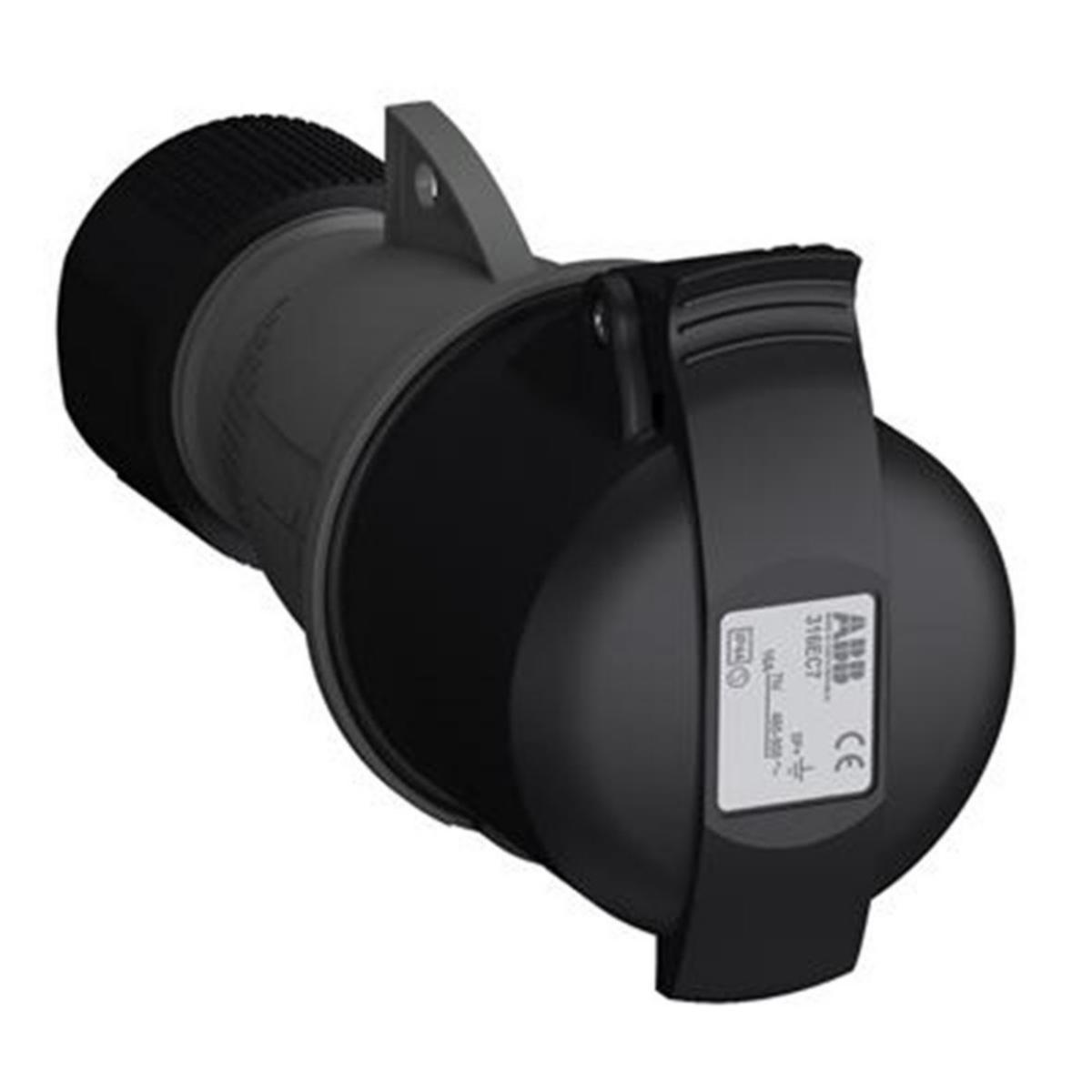

Coupler socket, IP 44, 16A,
316EC7 0
Article number: Suppl. article no:
2416182
2CMA102013R1000
to see price and stock
Housing of robust thermoplastic. Screw-less with tension relief. Angled rear body for better grip and a good angle for the cable.
- Article number: 2416182
- Suppl. article no: 2CMA102013R1000
- Ean no: 7392696020138
- Material class QJ3100
Technical data
- Packagin Size: 1 ST/10 ST
- Type: 316C7
- IEC-amperage: 16 A
- Identification colour: Black
- Number of poles: 4
- Clock hour position: 7 h
- Degree of protection (IP): IP44
- Insert direction: Straight
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Connection system: Screwed terminal
- Military model: No
- Material: Plastic
- Cable entry: Gland nut
- REACH Date: 2021-04-30
- REACH Information obligation: No
