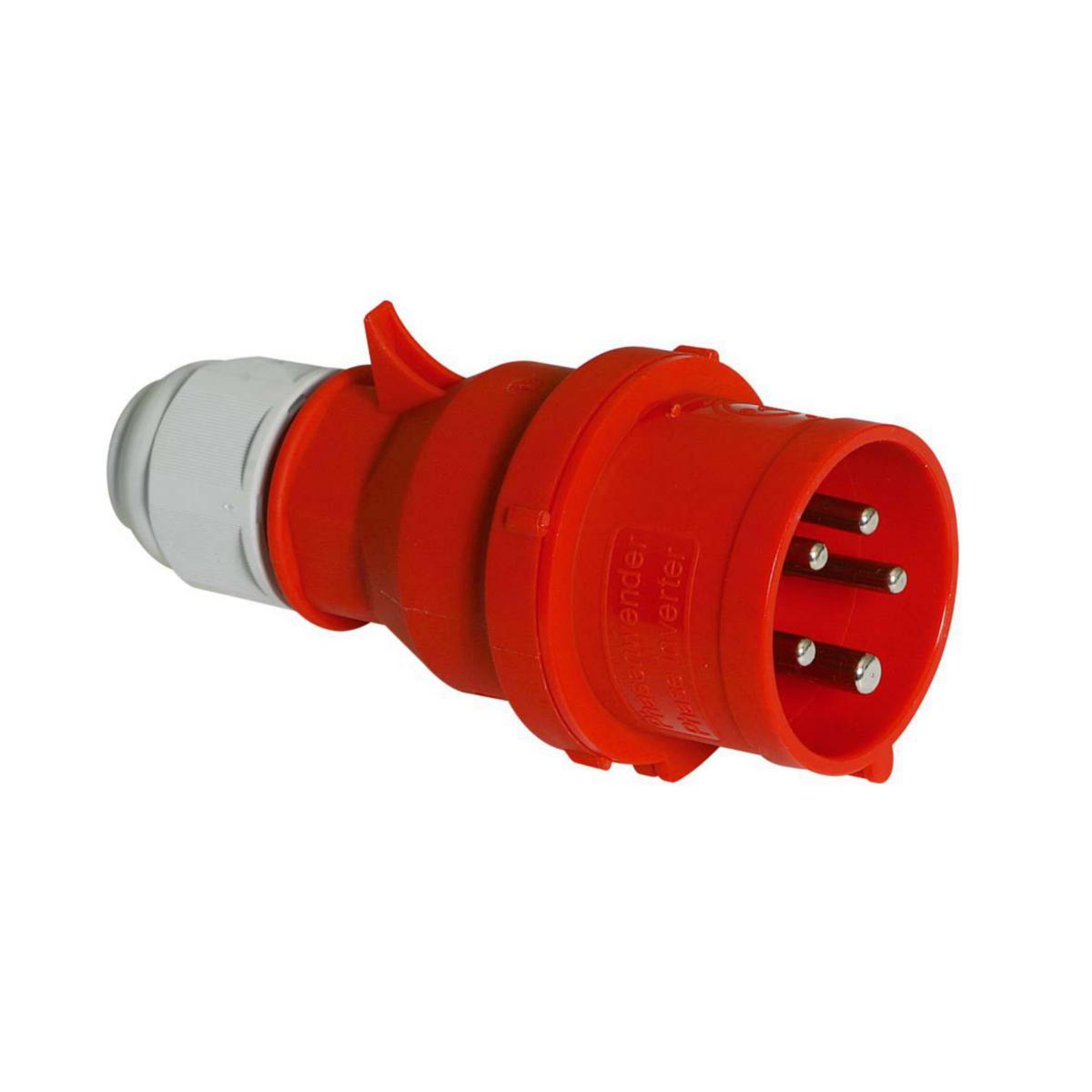

Attachment plug, Quick-Connect with Multi-Grip
PLUG, 5-POLE, 16A, 400V, QC 2421702
Article number: Suppl. article no:
2421702E
2421702
to see price and stock
Plug in polyamide with terminals in brass. With rated current 16A and with cable penetration of 8-18 mm.
- Article number: 2421702E
- Suppl. article no: 2421702
- Replaces art.nbr: 1954714
- Material class QJ3860
- This is an alternative to item 9812289
Technical data
- Packagin Size: 1 ST/10 ST
- Type: Quick-Connect with Multi-Grip
- IEC-amperage: 16 A
- Identification colour: Red
- Number of poles: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Degree of protection (IP): IP44
- Clock hour position: 6 h
- Insert direction: Straight
- Connection system: Screwless terminal
- Material: Plastic
- Military model: FALSE
- REACH contains candidate substances: Bly
- REACH Date: 2022-09-06
- REACH Information obligation: Yes
