Amphenol

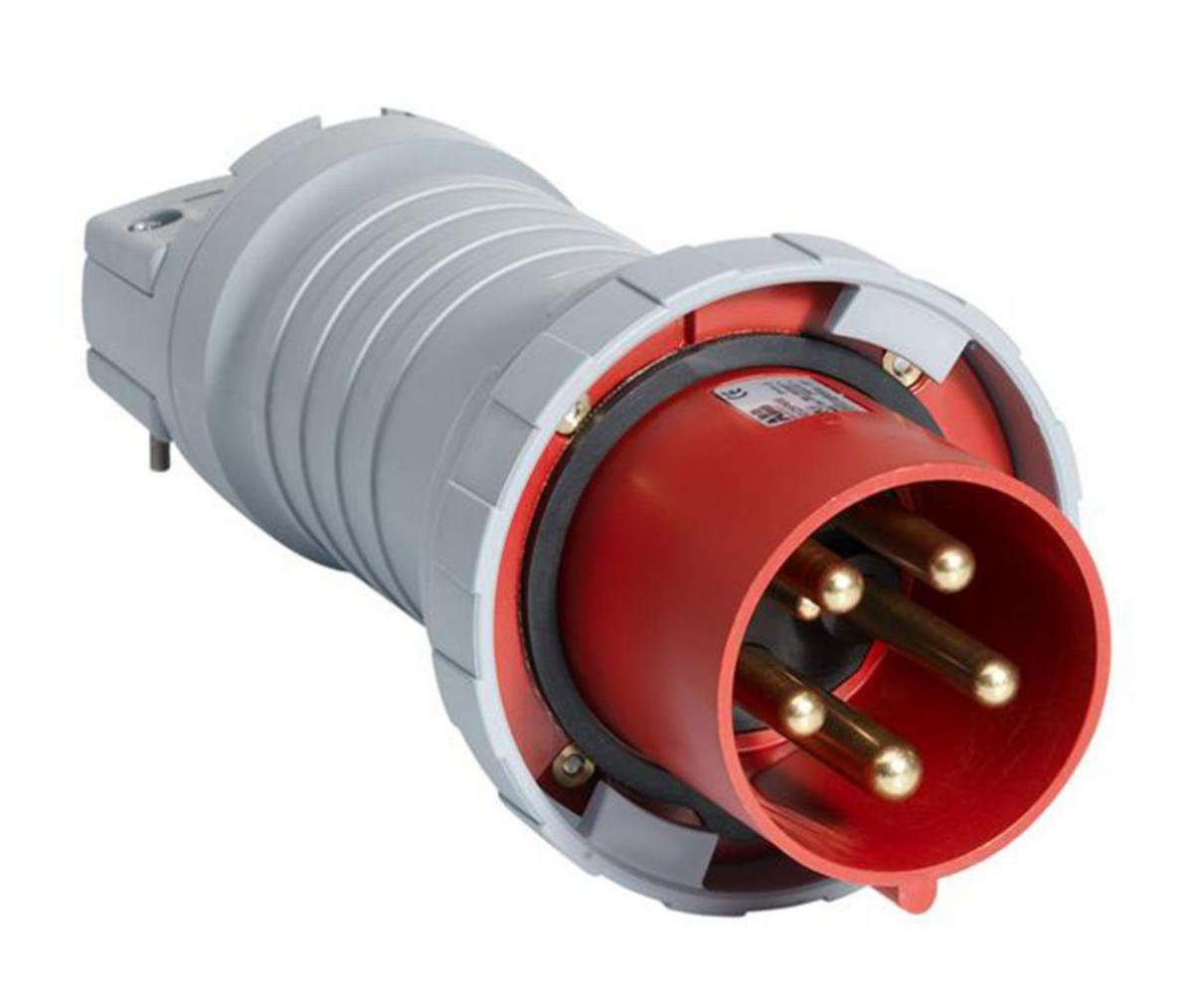

Plug CEE 16-125 A, IP67
463P6W 0
Article number: Suppl. article no:
2416294
2CMA166798R1000
to see price and stock
Plug connectors for use in environments with high functional and safety requirements. The robust housing is made of PBT plastic, a durable plastic material that can withstand heavy use and most chemicals found in industrial environments. Tough & Safe plug connectors are available in waterproof (IP67) and splash-proof (IP44) designs. All external screws are made of stainless steel. External cable relief available on request.
- Article number: 2416294
- Suppl. article no: 2CMA166798R1000
- Ean no: 7392696667982
- Material class QJ3100
Technical data
- Type: 463P6W
- IEC-amperage: 63 A
- Identification colour: Red
- Number of poles: 5
- Voltage according to EN 60309-2: 400-440 V (50+60 Hz) red
- Degree of protection (IP): IP67
- Clock hour position: 6 h
- Insert direction: Straight
- Connection system: Screwed terminal
- Phase inverter: No
- Cable entry: Anti-kink sleeve
- Material: Plastic
- Amperage according to UL/CSA (for UL-version): 63 A
- Military model: No
- RAL-number: 7001
- Contact material: CuZn
- Surface coating contacts: Untreated
- REACH Date: 2023-07-01
- REACH Information obligation: No
