Garo

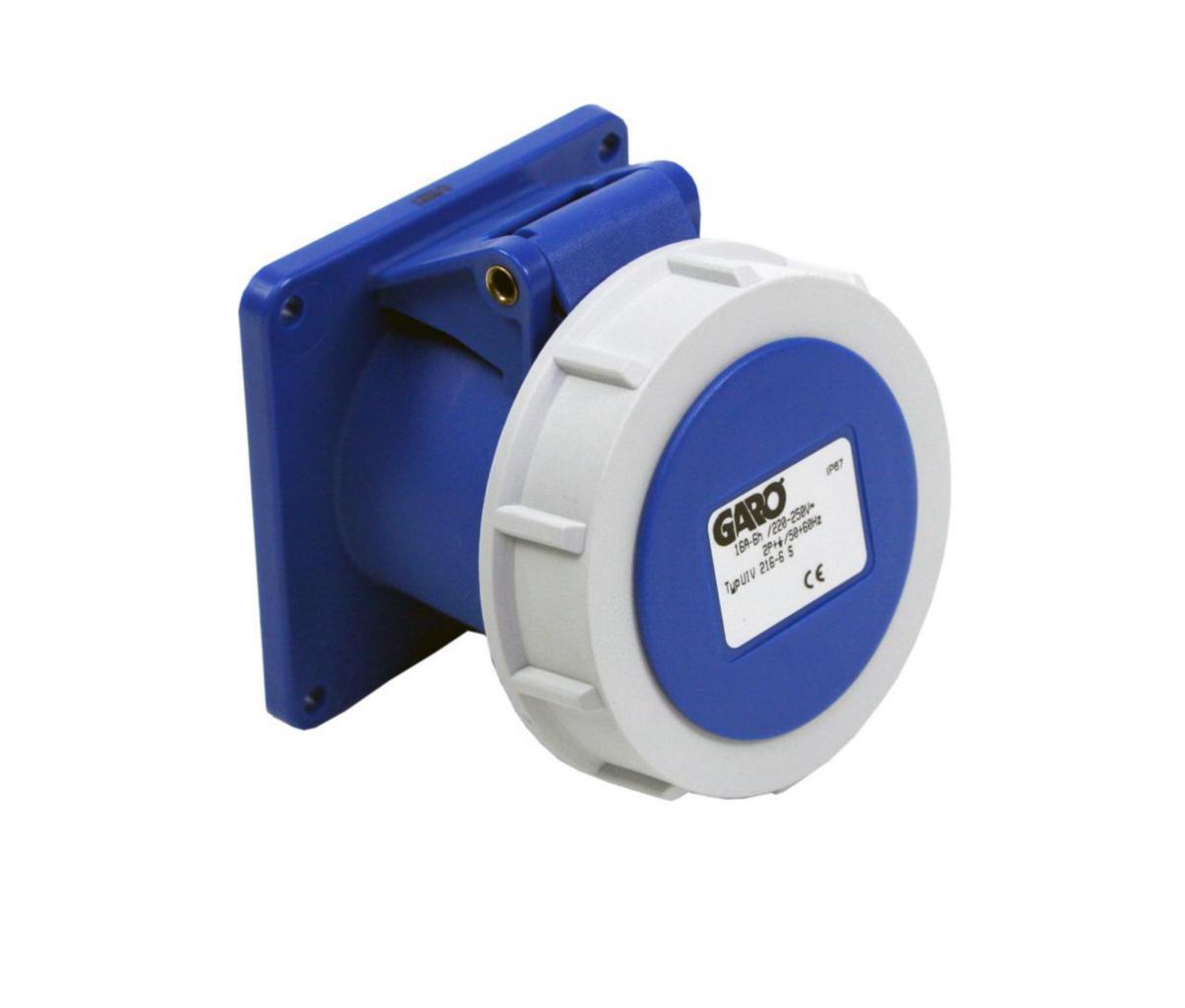

Panel socket Basic type UIV 16A Waterproof with straight attaching plate
FL.SOCK. UIV STRAIGHT 16A WT UIV 216-6 S
Article number: Suppl. article no:
2424954
2424954
to see price and stock
Waterproof output for panel mounting. Fastening plate dimensions 70x70 mm.
Connectable wire area 1-2.5 mm² and 1-4 mm² for solid cable.
Protection class IP67. Gasket included.
Connectable wire area 1-2.5 mm² and 1-4 mm² for solid cable.
Protection class IP67. Gasket included.
- Article number: 2424954
- Suppl. article no: 2424954
- Ean no: 7331185086743
- Material class QJ3400
Technical data
- Packagin Size: 1 ST/10 ST
- IEC-amperage: 16 A
- Identification colour: Blue
- Number of poles: 3
- Clock hour position: 6 h
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Degree of protection (IP): IP67
- Flange size horizontal: 70 mm
- Flange size vertical: 70 mm
- Drill hole distance horizontal: 60 mm
- Drill hole distance vertical: 60 mm
- Insert direction: Straight
- Material: Plastic
- Connection system: Screwed terminal
- Military model: No
- REACH Date: 2021-06-15
- REACH Information obligation: No
