AhlsellProductsElectricPanels and fuses 20-2424 Temporary power, output posts, construction panelsDistribution boxesSocket centres



Holte

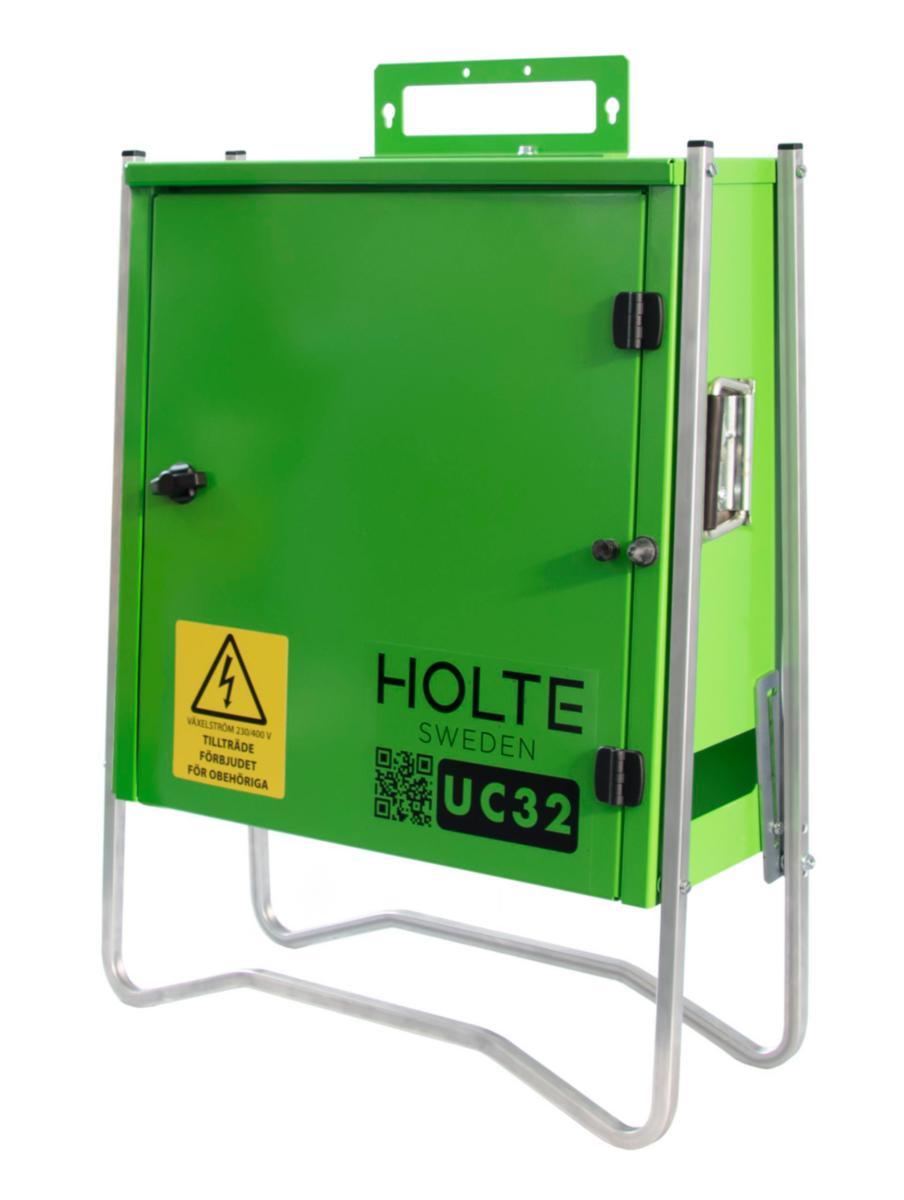

Sub-central with CEE connection
Undercentral 32A med CEE ansl UC 32
Article number: Suppl. article no:
2466593
25070
to see price and stock
HOLTE's construction centers are developed in close cooperation with professional users in the construction industry in the Nordics. We have placed great emphasis on our product development and have taken into account ergonomics, service and maintenance as well as electrical safety. All components are well selected from well-known European manufacturers such as Eaton, PCE, Weidmüller etc.
The central unit is manufactured to withstand the Nordic outdoor climate for many years and electrical safety tested down to the smallest detail. With an integrated service hatch, all standard components can be easily checked or replaced efficiently. The automatic door closer means that the central unit is protected from dirt and splashes on the construction site. All central units are also equipped with a smart function that enables the electrician to service the central unit without disassembling the insert. In addition, all central units are equipped with a twist lock and an integrated padlock system that enables locking by unauthorized persons.
The central unit is manufactured to withstand the Nordic outdoor climate for many years and electrical safety tested down to the smallest detail. With an integrated service hatch, all standard components can be easily checked or replaced efficiently. The automatic door closer means that the central unit is protected from dirt and splashes on the construction site. All central units are also equipped with a smart function that enables the electrician to service the central unit without disassembling the insert. In addition, all central units are equipped with a twist lock and an integrated padlock system that enables locking by unauthorized persons.
- Article number: 2466593
- Suppl. article no: 25070
- Ean no: 7350157670001
- Material class QJ6800
Technical data
- Model: Mobile end-distributor
- Rated voltage: 230/400 V
- Rated current: 32 A
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 3
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of socket outlets with protective contact CEE 7/3 (type F): 6
- Number of earth leakage switches 30 mA: 3
- Number of miniature circuit breakers (MCB): 6
- Housing material: Other
- Width: 548 mm
- Depth: 250 mm
- Height: 700 mm
- REACH Date: 2023-06-26
- REACH Information obligation: No
