Main distribution board 63A
Main distr board 63A
Article number: Suppl. article no:
2466607
25214
to see price and stock

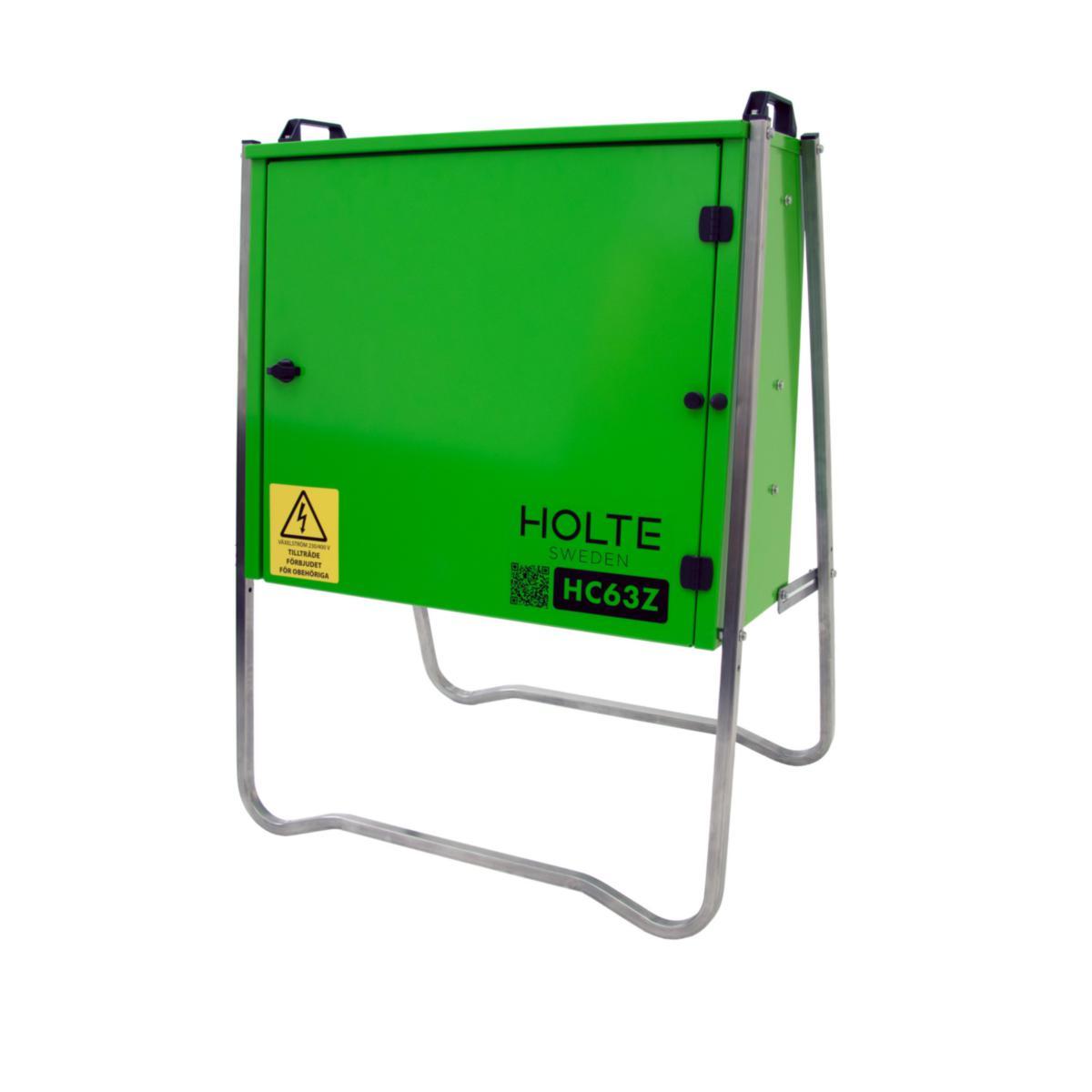

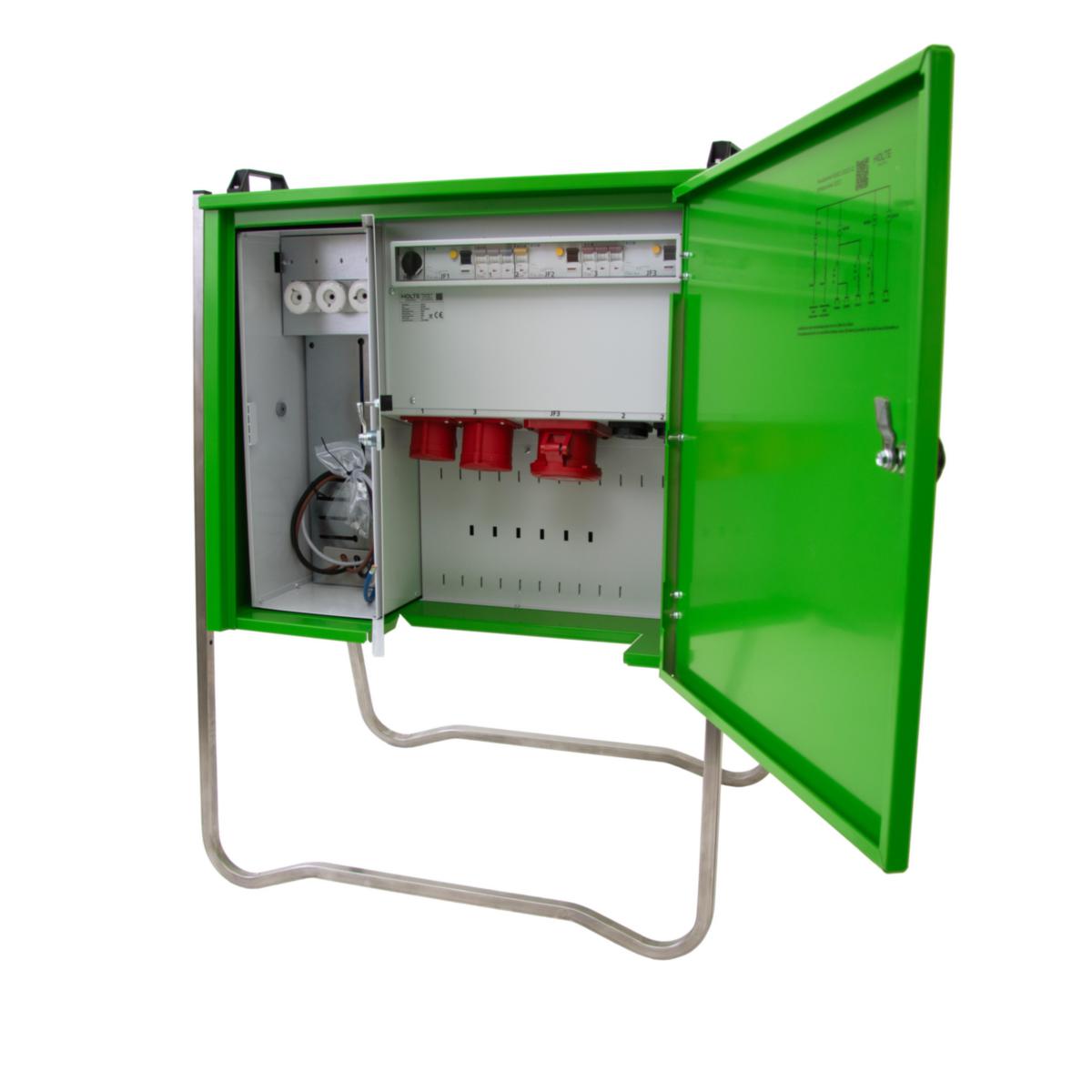

Metering center for temporary electricity for, for example, construction production or events. Strong construction with folding stainless steel stand, lockable cabinet, sealable space for connection. Equipped with incoming terminal connection for the network owner's cable, meter cabinet, main switch, relay terminal, and various sockets. 1x63A/400V, 1x32A/400V, 1x16A/400V, 2xschuko/230V. Residual current circuit breaker 2x40/0.03A and 1x63/0.3A.
- Article number: 2466607
- Suppl. article no: 25214
- Ean no: 7350157671077
- Material class QJ6800
Technical data
- Model: Mobile end-distributor
- Rated voltage: 400 V
- Rated current: 63 A
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of socket outlets with protective contact CEE 7/3 (type F): 2
- Number of poles main switch: 3
- Number of earth leakage switches 30 mA: 2
- Number of earth leakage switches 300 mA: 1
- Leakage current type: A
- Number of meter panels: 1
- Number of miniature circuit breakers (MCB): 3
- Housing material: Steel
- Width: 770 mm
- Depth: 330 mm
- Height: 1040 mm
- Degree of protection (IP): IP44
- Main switch: DIII
- Main switch rated current: 63 A
- Suitable according to IEC/EN 61439-4: Yes
- REACH Date: 2024-07-04
- REACH Information obligation: No
