Distribution box Magnelis, 32A
Elväska 32A/400V Magnelis PRO 32A
Article number: Suppl. article no:
2466586
25013
to see price and stock

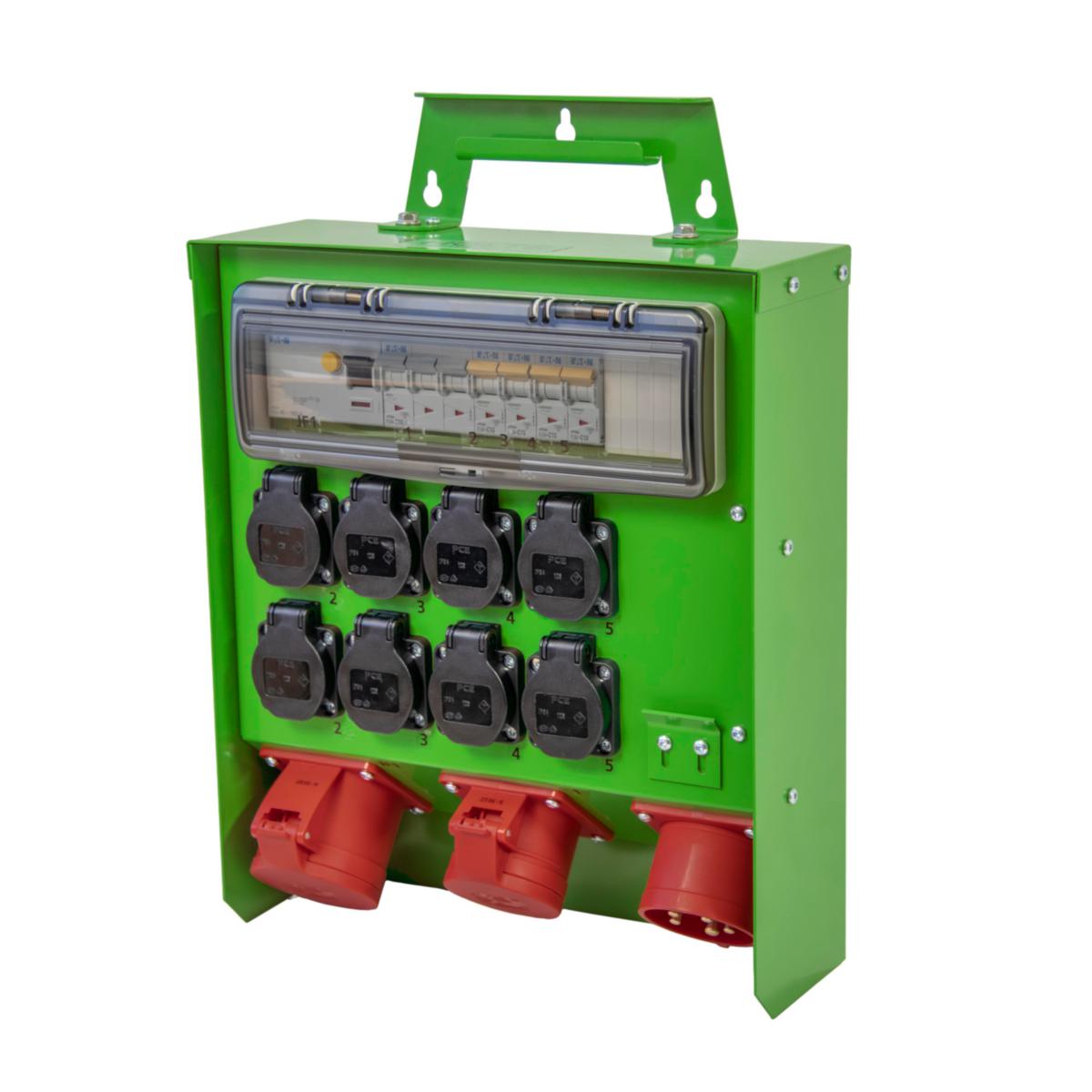

Impact-resistant metal case 32A with earth-fault circuit breaker, 8 schuko/wall sockets and 1x 16A/400V socket and 1x 32A/400V socket.
Our metal electrical bags are developed within HOLTE and manufactured in an environmentally friendly and weather-resistant material MAGNELIS, which has a corrosivity class corresponding to stainless C5. The plate is manufactured and painted in the vicinity of Värnamo, to minimize the environmental impact, and then the centrals are assembled in our own factory. All included components are of the highest quality and all products are tested for functionality and electrical safety before delivery.
Our metal electrical bags are developed within HOLTE and manufactured in an environmentally friendly and weather-resistant material MAGNELIS, which has a corrosivity class corresponding to stainless C5. The plate is manufactured and painted in the vicinity of Värnamo, to minimize the environmental impact, and then the centrals are assembled in our own factory. All included components are of the highest quality and all products are tested for functionality and electrical safety before delivery.
- Article number: 2466586
- Suppl. article no: 25013
- Ean no: 7350157670070
- Material class QJ6800
Technical data
- Model: Mobile end-distributor
- Rated voltage: 230/400 V
- Rated current: 32 A
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of socket outlets with protective contact CEE 7/3 (type F): 8
- Number of earth leakage switches 30 mA: 1
- Number of miniature circuit breakers (MCB): 7
- Housing material: Other
- Width: 270 mm
- Depth: 130 mm
- Height: 400 mm
- Degree of protection (IP): IP44
- Suitable according to IEC/EN 61439-4: Yes
- REACH Date: 2023-06-26
- REACH Information obligation: No
