Garo
Plinth profile-PN Wall
TERM PROF-PN WALL PNFR
Article number: Suppl. article no:
2449206
353010
to see price and stock

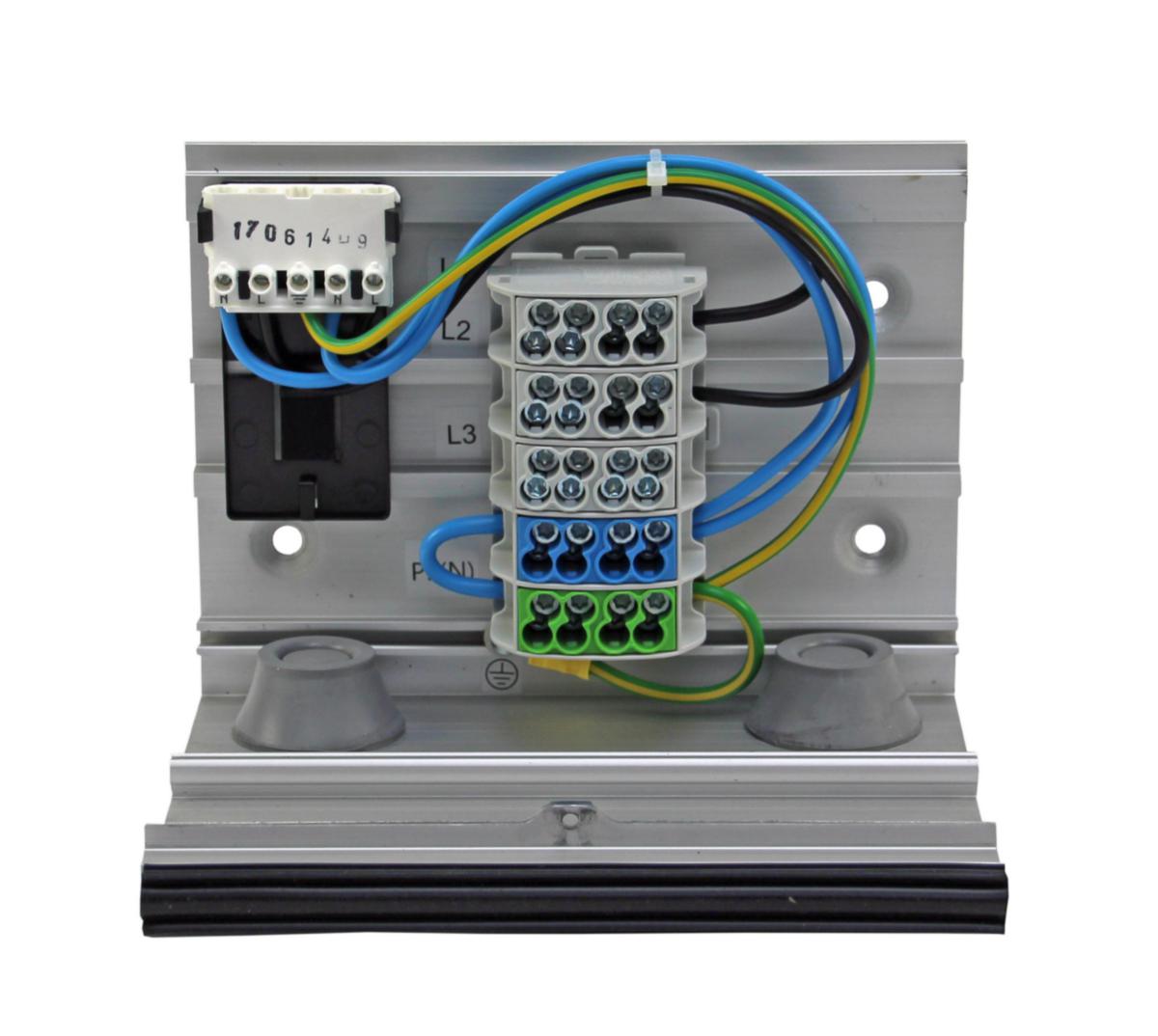

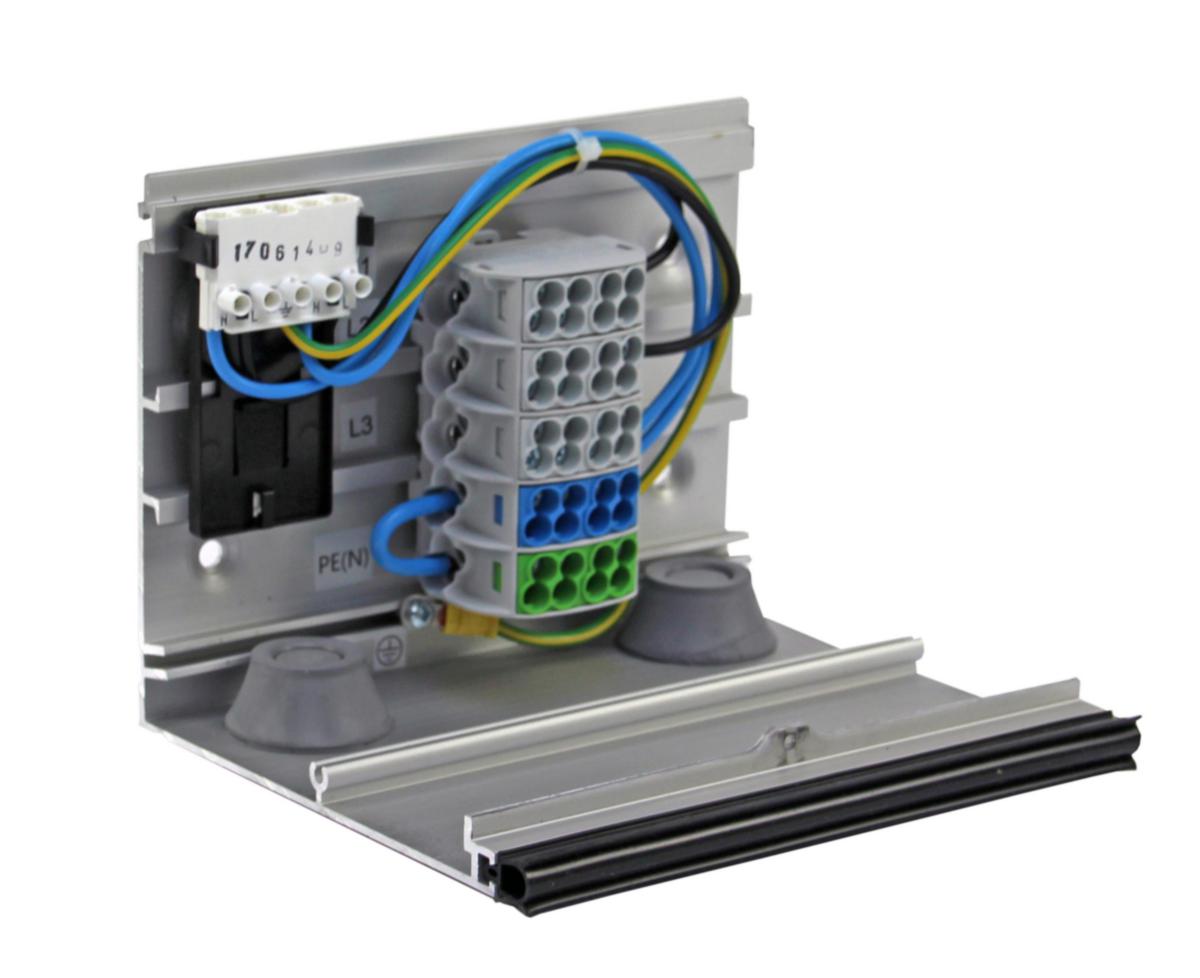

Terminal profile for wall mounting, the terminal profile contains all the wiring needed to connect the insert to the electricity. The terminal profile is mounted on a wall, the enclosure is mounted on the terminal profile and finally the insert is connected with a simple quick connection. Equipped with installation-friendly incoming terminal 25mm2 prepared for further supply 16mm2 Al / Cu. The terminal profile is not suitable for older variants of P100 enclosure.
- Article number: 2449206
- Suppl. article no: 353010
- Ean no: 7331185172811
- Material class QJ5100
Technical data
- Packagin Size: 1 ST/60 ST
- Width: 180 mm
- Depth: 140 mm
- Length: 130 mm
- Mounting method: Wall-/ceiling mounting
- Colour: Grey
- Degree of protection (NEMA): Other
- Working temperature: -35-65 °C
- Mounting in the soil: No
- Surface protection: Untreated
- Number of inlets: 2
- Mounting under water: No
- Degree of protection (IP): IP20
- Material: Aluminium
- Rated insulation voltage Ui: 0 V
- Diameter: 0 mm
- Max. conductor cross section: 0 mm²
- Equipped with: Other
- Inlet from the rear: Yes
- Connectable: No
- Weatherproof: Yes
- Cover model: None
- Suitable for Ex-zone dust: None
- Explosion-tested version: No
- Shape: Other
- Suitable for Ex-zone gas: None
- Suitable for tube diameter: Other
- Castable: No
- Casting compound included: No
- Halogen free: Yes
- With screening: No
- Sealable: No
- Cover attachment: Other
- Transparent cover: No
- Type of housing feed-through: Seal membrane
- Circuit integrity: None
- REACH Date: 2025-03-04
- REACH Information obligation: No
