Garo
Inserts 24 h/day 2 IEC with gauge
INS CAMP-PN2 24H/D 16A WM ACMN 216–2
Article number: Suppl. article no:
2449212
353016
to see price and stock

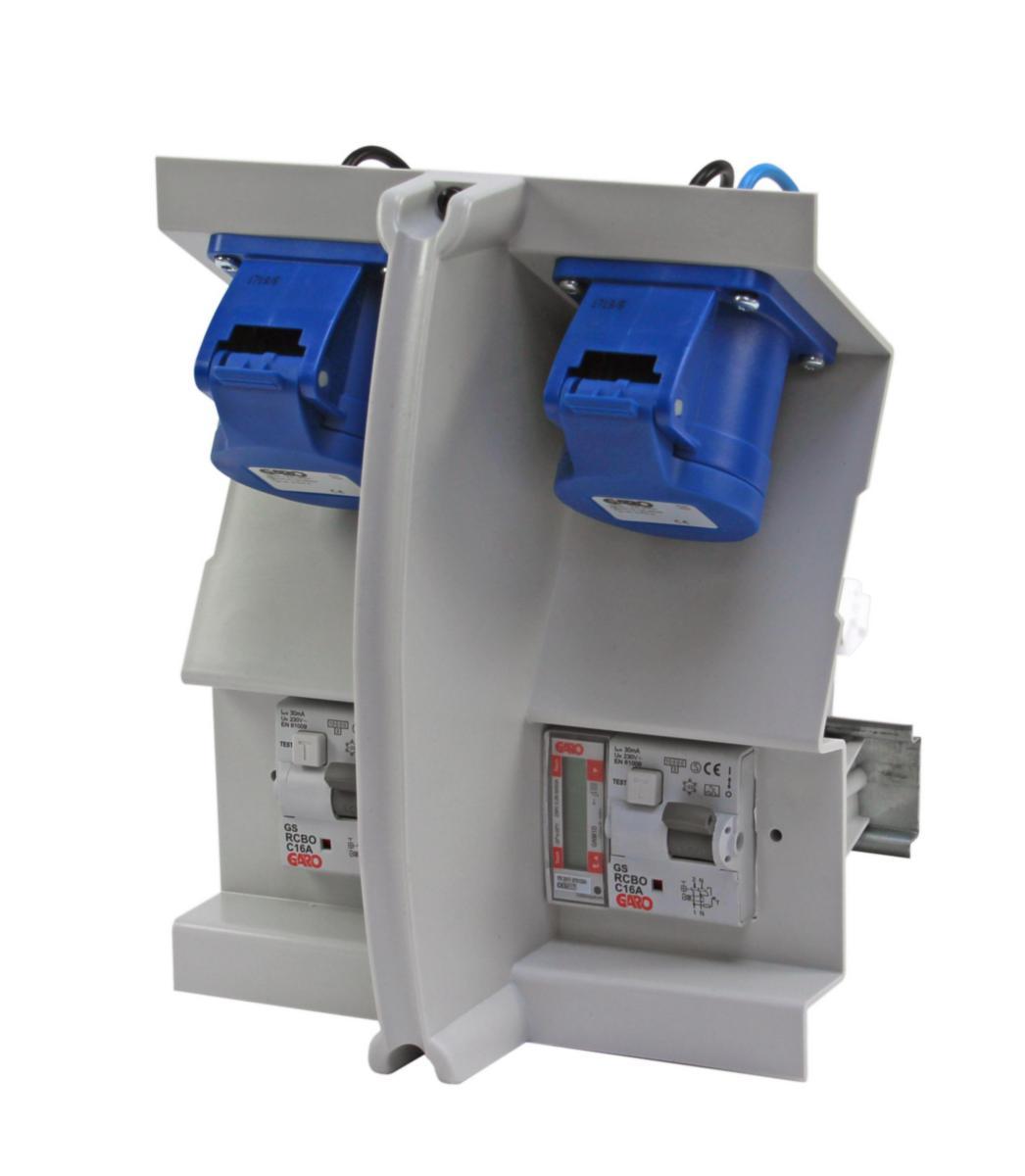

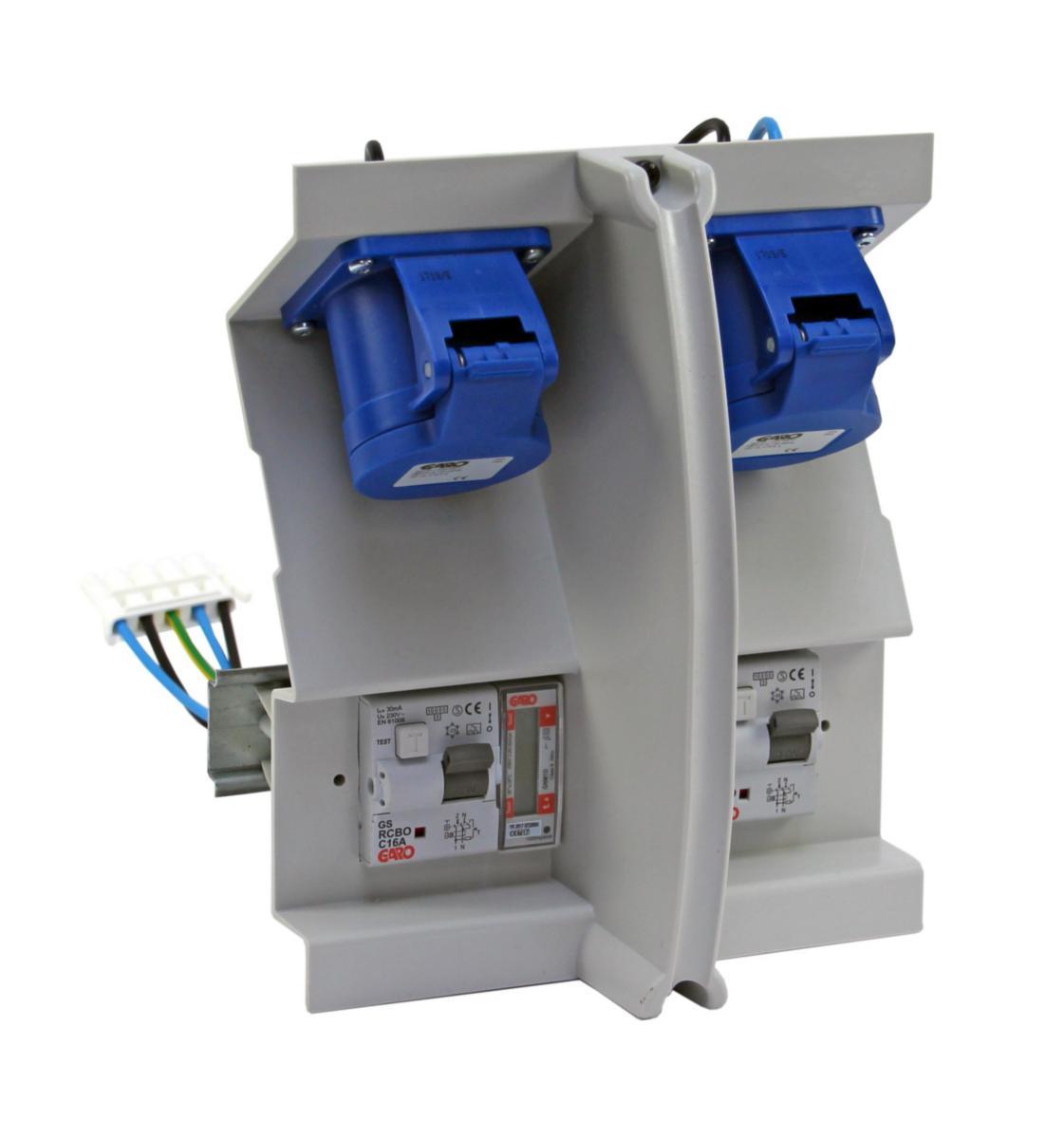

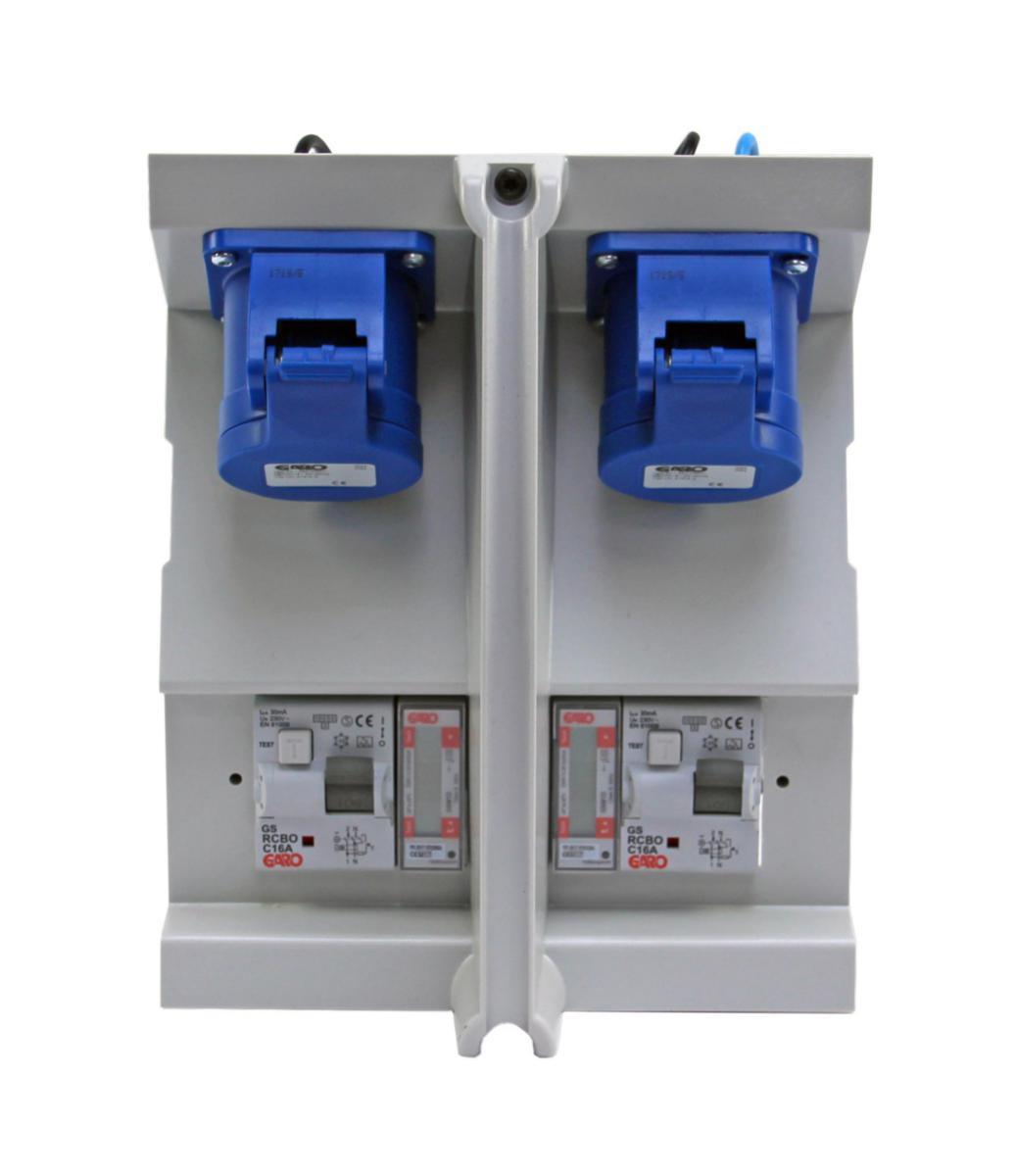

ACMN operation You always have access to electricity 24 hours / day. The insert has digital energy meters that make it possible to read the exact consumption. The insert is equipped with 2 personal protection switches and 2 IEC sockets and with measurement on the sockets. The components are mounted on a DIN rail, which makes any replacements very easy. The insert is not compatible with previous P100 enclosures.
- Article number: 2449212
- Suppl. article no: 353016
- Ean no: 7331185172873
- Material class QJ5100
Technical data
- Packagin Size: 1 ST/50 ST
- Rated current: 16 A
- Number of socket outlets with protective contact CEE 7/3 (type F): 0
- Number of CEE socket outlets (IEC 60309): 0
- Number of miniature circuit breakers (MCB): 2
- Number of earth leakage circuit breakers type A: 0
- Number of earth leakage circuit breakers type B: 0
- Wi-Fi-compatible: No
- With energy meter: Yes
- Earth leakage switch: Earth leakage switch with IFN 30 mA (standard)
- Connection voltage: 230 V
- Degree of protection (IP): IP44
- Width: 175 mm
- Depth: 100 mm
- Height: 220 mm
- Colour: Grey
- Complete device in housing: No
- Time switch: Yes
- Housing material: Plastic
- Max. number of time switches: 1
- Max. short circuit current: 16 A
- With lighting: No
- With miniature circuit breaker (MCB): Yes
- Mounting method: Other
- Temperature controlled: No
- Time program: Day
- Connection type: Other
- REACH Date: 2025-03-04
- REACH Information obligation: No
